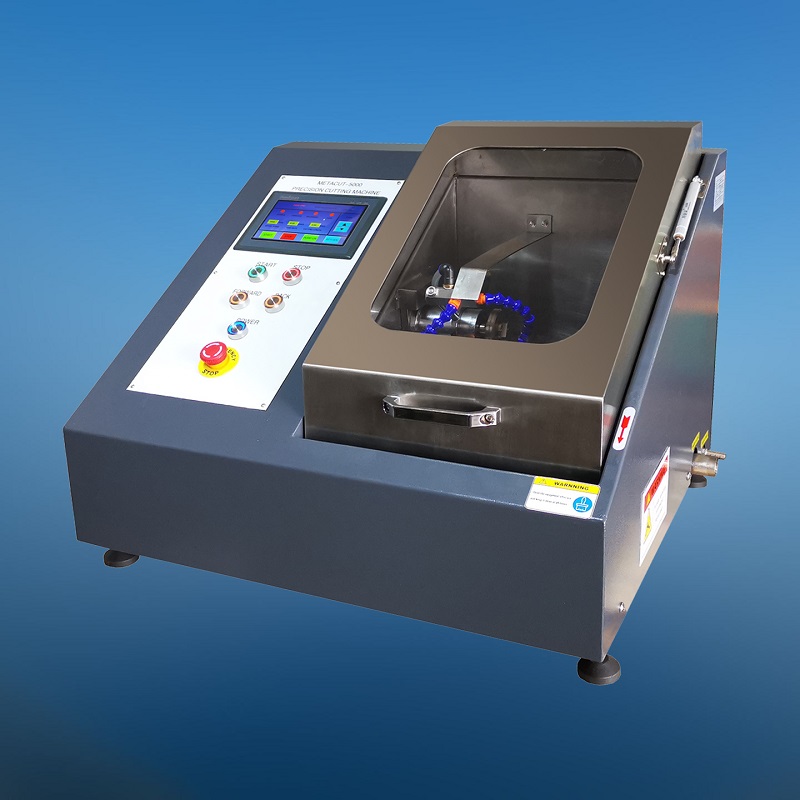

MODEL METACUT-6000 HIGH SPEED
PRECISE METALLOGRAPHIC SPECIMEN CUTTING MACHINE
Model METACUT-6000 precise cutting machine is very suitable for non-deforming
cutting to the materials such as metal, electronic part, ceramic, crystal, hard
alloy, lithofacies sample, mineral sample, concrete, organic material,
biological materials etc. This machine can use diamond cutting disc or resin
cutting disc, it features wide application, high cutting accuracy, powerful
cutting ability and wide speed adjusting range. It is an ideal option for the
lab of factories, science and research institutions and universities.
Features:
-
Equipped with
re-circulating & cooling system
-
The
feeding speed can be preset (0-180mm/min)
-
Menu
operation, large touch screen LCD display of various data
-
Wide

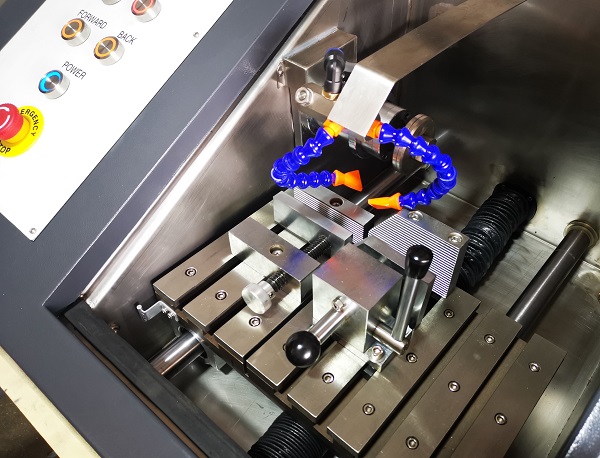

cutting chamber and work table, long cutting distance
-
Cutting method can be defined by
customer freely
-
Ultra-large and closed cutting chamber with safety switch
Technical specifications
Maximum cutting diameter: Φ60mm
Main shaft rotating speed: 300~6000rpm adjustable (1 rpm increment)
Cutting disc diameters: 200*1*32mm (100mm, 125mm, 150mm optional)
Feeding speed: 0~3mm/s (0.01mm/s increment)
Withdraw speed of impact cutting: 0~4mm/s
Forward distance of impact cutting: 0.1~2mm
Withdraw distance of impact cutting: 0~1.99mm
Maximum cutting travel: Y-axis 220mm
Main shaft Z-axis compensation distance: 25mm
Work table size: 350 x 200mm (X axis and Y axis)
Servo motor power: 1800 W
Power supply: single phase, 220V, 50Hz
Net weight: 154Kg
Overall dimension: 790 × 650 × 590mm (L × W × H) |
|
