MODEL

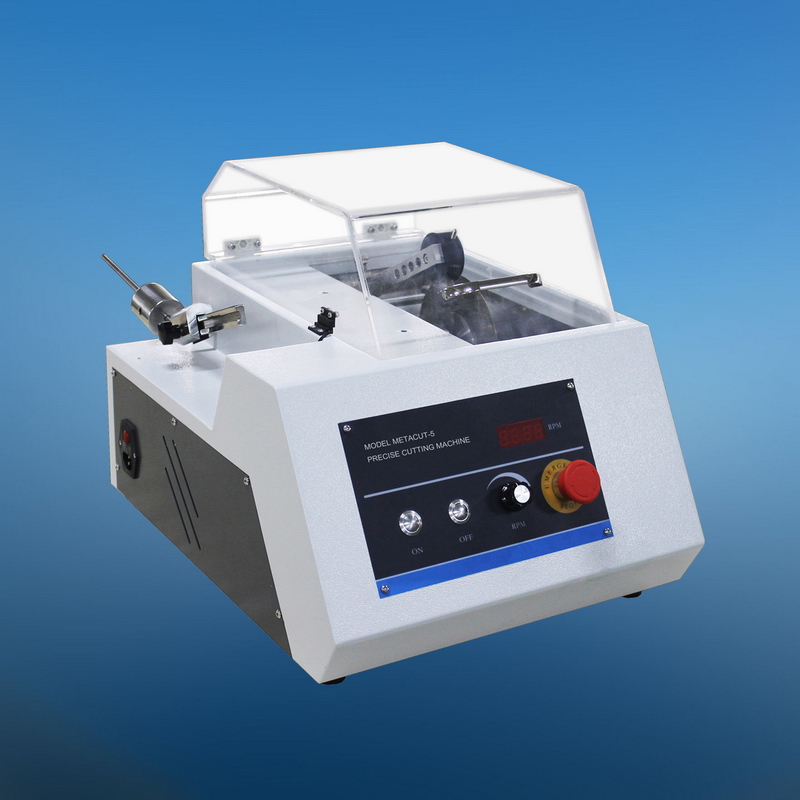

METACUT-5 PRECISE CUTTING MACHINE
METACUT-5 Precise Cutting
Machine can be used to cut non-metallic material, circuit board, semiconductor,
super hard material etc.
The cutting
precision can
reach 0.01mm. The
machine
is equipped with
many jigs,
which make it possible to
cut samples with irregular
shape. It is an ideal precise cutting
machine for the scientific research institutes and industrial enterprises.
Features
-
Closed transparent protective cover and
emergency safety switch, which can provide protection for the operator and
facilitate observation.
-
Accurately fine regulating the feeding speed of
the processed object through the gravity loading system to reduce sample
damage.
-
Closed loop control cutting to prevent overload
from burning out motor, circuit, etc.
-
When the sample cutting is completed, the
cutting machine will stop automatically, which can realize unattended
processing.
-

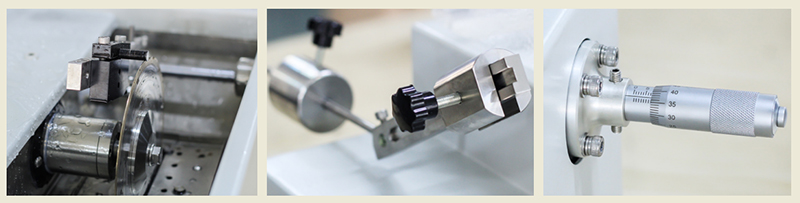

Use ultra-thin cutting blades, such as 0.4mm
thick diamond cutting blade, and the sample moves laterally with a precision
of of 0.01 mm, which can realize the precision cutting of the sample.
-

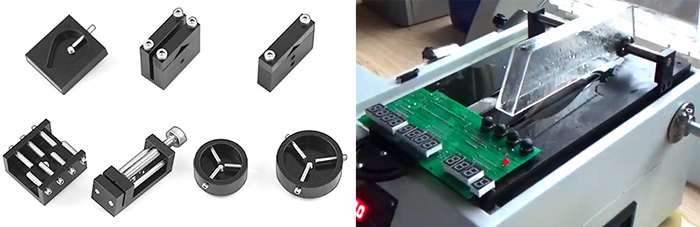

7 sets of different sample fixtures to meet the
cutting requirements of different samples.
-
Large size circuit board table cutting device
(optional) is convenient for large-size sample preparation and cutting of
sheet materials, circuit boards, glass, etc.
-
Sintered diamond cutting blade is used to easily
cut glass, circuit board, rock and other hard materials.
Main
Technical Specifications
Cutting blade: Standard diamond cutting blade 150 x
0.43 x 12.7mm
Cutting positioning accuracy: 0.01mm
Built in cooling device: Automatic circulating
cooling of cutting fluid (the cutting blade drives water from water tank for
circulating cooling)
Rotation speed of cutting blade: 0~1650rpm
adjustable
Motor: Power: 550W
Display: LED digital display
Emergency braking device: Emergency stop switch
Power Supply: AC 220V, 50Hz, Single phase
Dimensions: 520 x 430 x 390 mm
Weight: 33kg
Standard accessories
|
Item |
Quantity |
Item |
Quantity |
|
Single head clamp |
1 |
32mm inset sample clamp |
1 |
|
Double head clamp |
1 |
40mm inset sample clamp |
1 |
|
Irregular sample clamp |
1 |
Water drop clamp |
1 |
|
Long sample clamp |
1 |
Diamond cutting blade |
1 |
|
Instruction |
1 |
Power Cord |
1 |
|
Certificate |
1 |
Packing list |
1 |
Optional accessory
Diamond cutting blade: 100mm (100 x 0.3 x 12.7mm)
125mm (125 x 0.38 x 12.7mm)
175mm (175 x 0.5 x 12.7mm)
Flat platform cutting device: 180 x 160 x 20mm,
suitable for cutting sheet, glass, electronic circuit board, etc.
|
