MODEL LVM-9000 AUTOMATIC VACUUM
COLD MOUNTING MACHINE
Product introduction
The cold mounting of the sample is
achieved by removing air from the sample and the cold mounting material, filling
the gaps in the sample with liquid mounting material, eliminating the gaps
between the sample and the mounting material, and thus achieving a close
combination of the sample and the mounting material. The sample is also well
protected and supported during the grinding and polishing process.

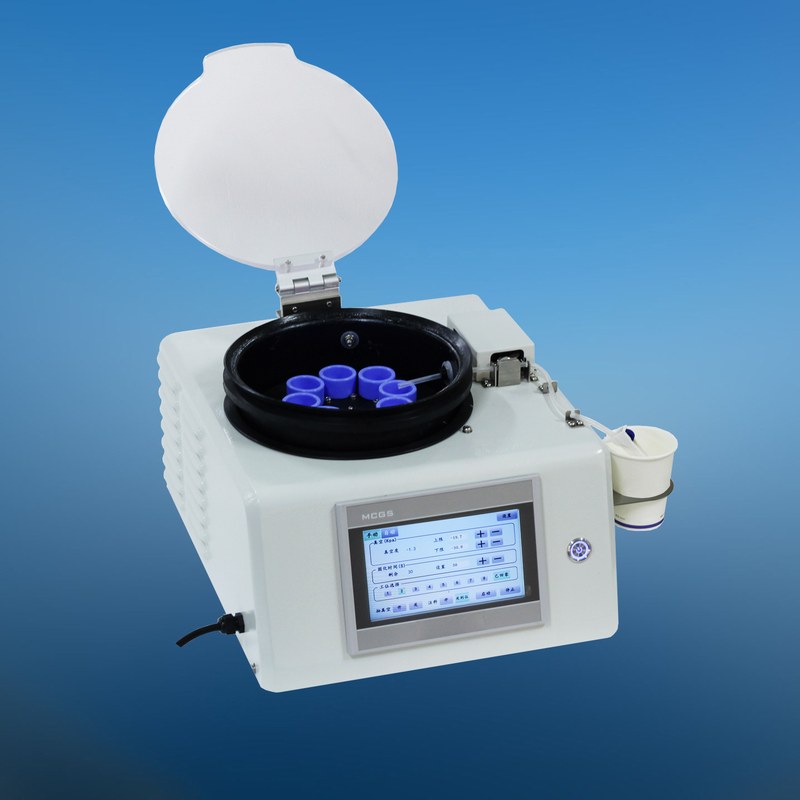

LVM-9000 fully automatic vacuum cold
mounting machine, equipped with a built-in vacuum pump, can achieve high vacuum,
it can automatically move the mounting mold, automatically fill cold mounting
materials, and complete the entire mounting process of inlaying 8 samples,
multiple vacuuming, maintaining vacuum, and venting with one click.
Main features
-
Mounting mode: Manual mode and automatic mode.
-
Manual mode features flexible inlay.
-
Automatic mode, set according to different
materials and samples, can save and call 999 sets of process parameters. The
process parameters are password protected, and it is easy to call.
-
Process parameters such as vacuum degree, vacuum
holding time, air release, and number of cycles, and mounting completion
reminder can be set.
-
Complete the entire mounting process of multiple
samples, multiple vacuuming, maintaining vacuum, and venting cycles with one
click.
-
8 samples can be automatically moved to the
mounting and liquid adding position. Cold mounting material can be poured
into the sample mold in vacuum at once time for vacuum mounting.
-
Automatic filling of cold mounting material.
-
Both the inlaid sample and the cold mounting
material can be pre-vacuumed. It can implement multiple cycles of air
extraction and exhaust inlay processes.
-
High vacuum: -0.06MPa (-60KPa). Quickly reach
the set high vacuum.
-
Built in vacuum pump, low noise, oil-free, and
pollution-free.
-
Large volume vacuum chamber with transparent top
cover for easy observation.
Technical specification
Number of automatic inlay samples: 8 (inlay mold
diameter: 30mm)
Maximum vacuum degree -0.06MPa (-60KPa)
Evacuation time: less than 1 minute
Sample mold: suitable for various shapes of samples, diameter 20mm,30mm, 40mm,
50mm, or rectangular mold, or disposable mold
Vacuum chamber size (L*W*H): 300*300*300 mm
Overall dimensions (L*W*H): 460*450*300mm
Power supply: AC 220V, 50/60Hz, 200W
Weight: 19 Kg
Standard accessories:
Cold mounting machine: 1 set
Cold mounting material set: 1 set (including 1000ml liquid resin, 500ml curing
agent, 1 piece of Ф30mm cold mounting mold, 40 plastic cups and 40 stirring
rods)
|
|
