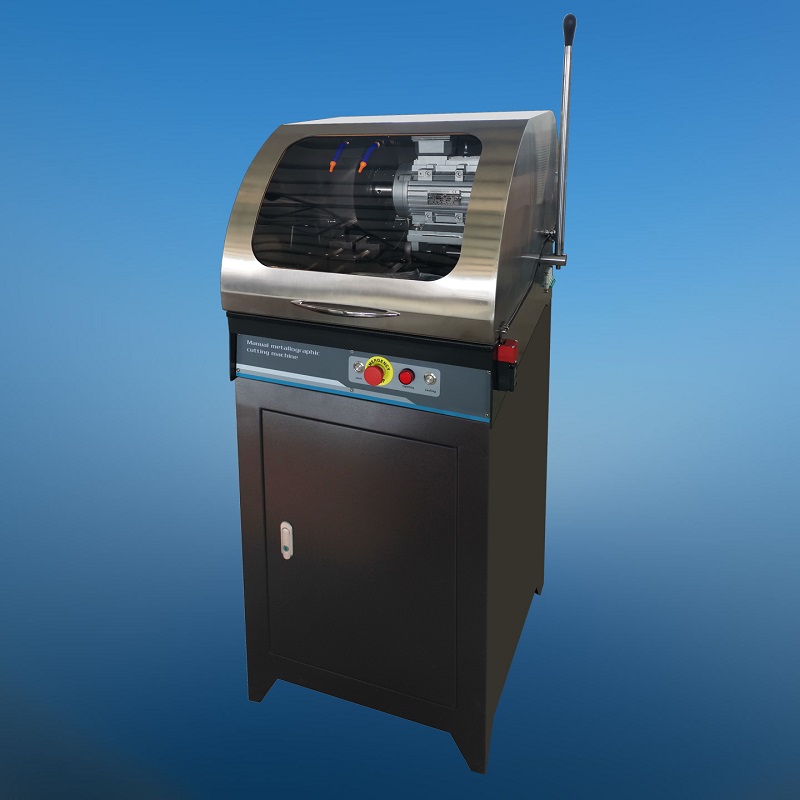

MODEL LSQ-100A

METALLOGRAPHIC SPECIMEN CUTTING MACHINE



    Model LSQ-100A Metallographic specimen cutting machine is equipped with stainless cover and it can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.



Features

  • Stainless chamber cover

  • Equipped with water cooling system

  • Lighting system is optional





Technical specifications



Max. cutting diameter: Ø100mm

Sand wheel specification: 300 x 2 x 32mm

Rotating speed of main shaft: 2800 rpm

Motor: 3.0 KW

Power supply: 380V, 50Hz, three phases

Dimensions: 740 x 680 x 1650mm

Weight: approx. 150 kg
