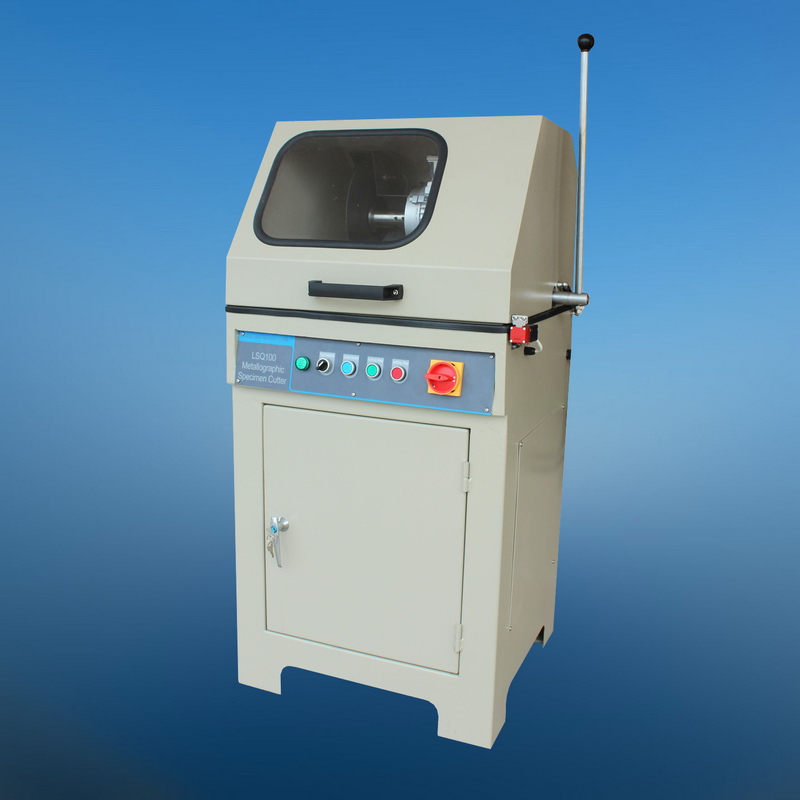

MODEL LSQ-100

METALLOGRAPHIC SPECIMEN CUTTING MACHINE

         Model LSQ-100 metallographic specimen cutting machine is suitable for cutting general metallographic and lithofacies material specimens. This machine features safety & reliable performance, low noise and easy operation. It is the ideal instrument for specimen preparing purpose used in colleges, laboratories & factories.

Features and uses

• Equipped with double quick clamping vices & T-notch worktable, and this is very favourable for customers to clamp all kinds of strange shape work pieces.

• Equipped with 60L cooling liquid tank.

• Equipped with LED lighting system.

Technical specifications

Max. cutting diameter: Ø100 mm

Cutting disc specification: 300 x (2-2.5) x 32mm

Rotating speed: 2800 rpm

Motor power: 3.0KW

Power supply: three phases, 380V, 50Hz

Dimensions: 650 x 600 x 1400mm

Net weight: 180 KG
