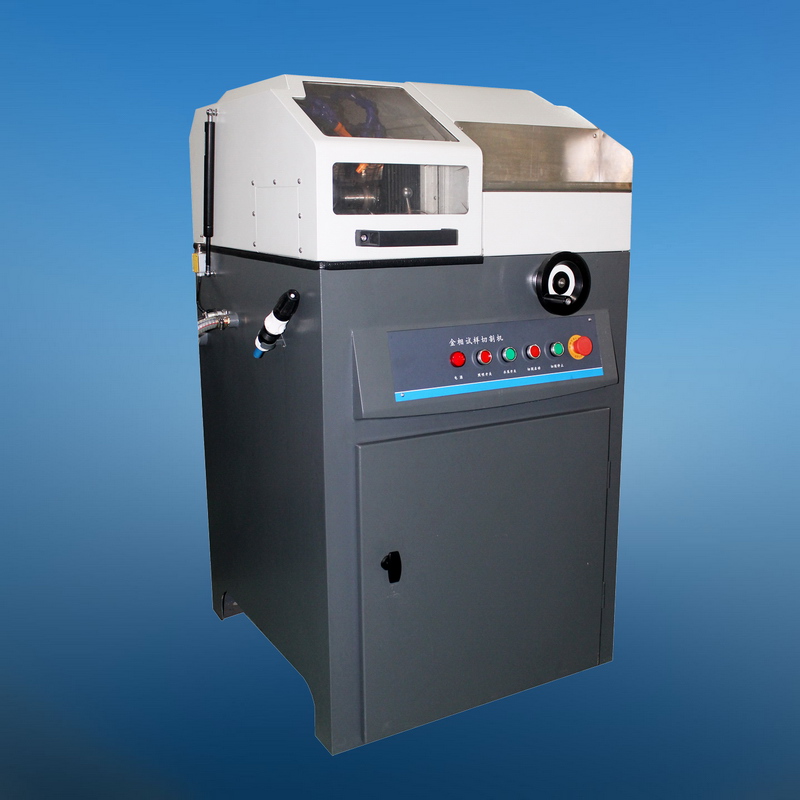

MODEL LQ-85X

METALLOGRAPHIC SPECIMEN CUTTING MACHINE



        LQ-85X cutting machine adopts a fully enclosed double shell structure. The cutting room is separated from the motor room independently without influence on each other, which is safe and reliable. At the same time, the service life of the motor is greatly improved. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.



Features

  • Equipped with quick clamping vice, which can clamp samples more quickly and accurately.

  • The operating hand wheel drives the motor to cut the sample in Y direction, and the speed is completely controlled manually.

  • Special cooling water tank for circulating use of coolant.

  • The main parts, such as cutter cover, grinding wheel spindle and clamp, are made of stainless material with long service life.

  • The stainless steel sample placement tank on the right side improves the usability and convenience of the equipment.

  • Large cutting range and transmission power.

  • Smooth rotation and low noise



Technical Specifications



Max. Cutting diameter

Φ85mm

Cutting wheel size

Φ300x2x32 mm

Rotating speed

2800 rpm

Motor power

3KW

Power supply

AC 380V, 50Hz, three phases

Emergency device

Emergency switch

Cutting chamber lighting

Low voltage DC lighting

Worktable size

240*232mm

Clamping device

Quick clamping vice

Cooling device

40L External circulating filter tank, multiple sprinklers and cooling water guns

Manual cutting mode

Manual Y-Direction Moving Cutting

Observing window

Explosion-proof transparent engineering plastics

Dimensions

768*780*1285mm

Weight

250KG



Standard accessories



Name

Quantity

Name

Quantity

LQ-85X cutting machine

1 set

Drain pipe Φ60mm

1 pc.

Cooling tank

1 set

Inlet pipe Φ19mm

1 pc.

Spanner 36

1 pc.

Cutting disc 300*2.0*32mm

1 pc.

Spanner 22-24

1 pc.

Cooling lubricant liquid

2 bottles (1000ml)

Spanner 14-17

1 pc.

Pipe clamper 14-27

2 pcs.

Hex wrench 4mm

1 pc.

Pipe clamper 52-76

1 pc.

Hex wrench 6mm

1 pc.

Operation manual,

certificate

1 share for each
