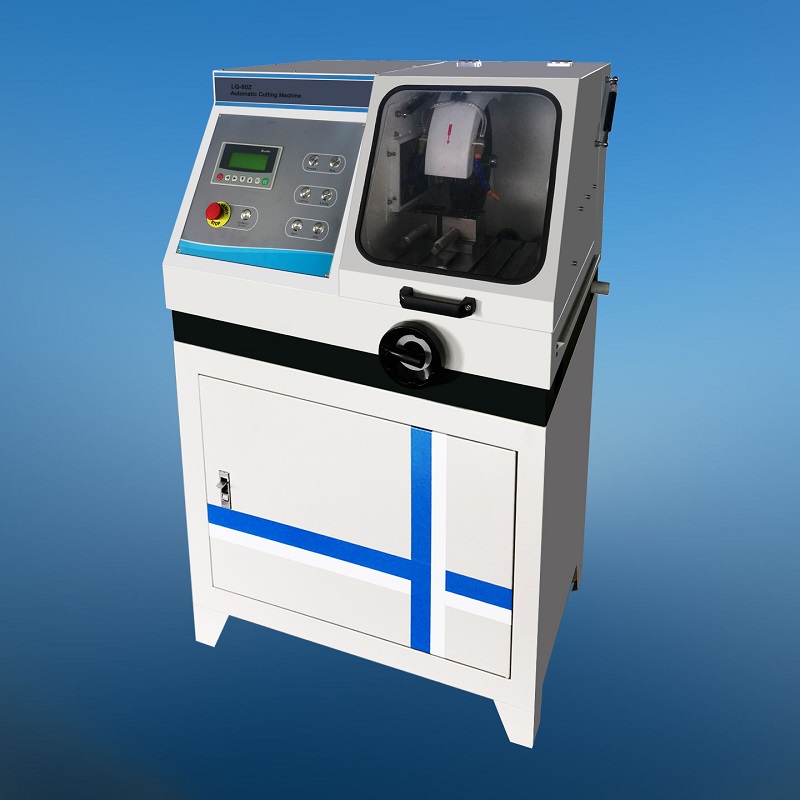

MODEL LQ-80Z

MANUAL / AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE

        Model LQ-80Z floor type manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Features

• Various cutting data can be displayed on high definition backlight type LCD screen.

• Manual cutting and automatic cutting modes can be switched at will

• Large cutting chamber, tempered glass observing window

• Non-burning loss swing type cutting means, which improves the cutting quality

• Automatic withdraw function after cutting is finished

• Bidirectional feeding method increases the length of deep cutting

• Cutting speed: 2.25, 3, 4, 5, 7, 9, 12, 15mm/min.

• Equipped with large volume cooling liquid water tank.

Technical specifications

Max. Cutting diameter: 80mm

Cutting volume: Ø80mm x 200mm

Cutting disc rotating speed: 2100 rpm

Cutting disc specification: 350 x 2.5 x 32mm

Work table size: 310 x 280mm

Motor power: 3.0KW

Power supply: 380V, 50Hz, three phases

Dimensions: 800 x 780 x 1500mm

Net weight: 260 KG
