MODEL LDQ-450

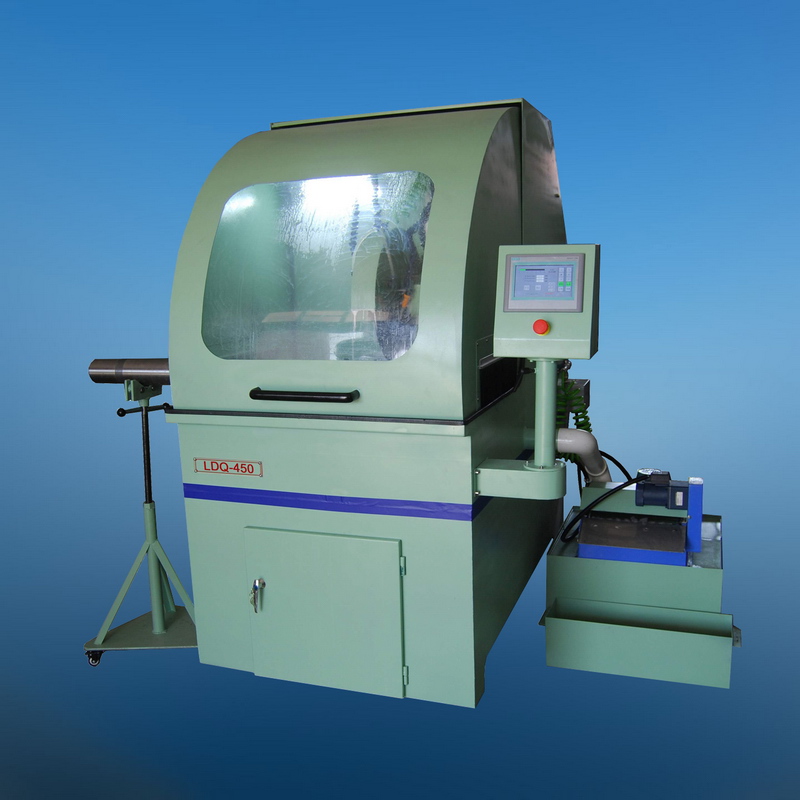

AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE

         Model LDQ-450 is a kind of full automatic and high precision cutting machine. It adopts SIEMENS PLC and features high reliability and controlling ability. It has touch screen HMI control interface and high accuracy stepping motor. This machine is suitable for precise cutting for all kinds of metal and non-metal materials and can get precise sample for metallographic and lithofacies organizations. This machine includes cutting system, lighting system, cooling system and cleaning system. Super cooling system can avoid specimen from burning while cutting. LDQ-450 applies automatic cutting with low noise and convenient, safe and reliable operation. It is the ideal option for colleges, laboratories, car manufacturing, steel manufactories, material research institutes and so on.

Features

• Three cutting type: Abrasive chop cutting, to-and-fro cutting, layer-to-layer cutting (for different materials, diameters and hardness)

• 3-axis simultaneous motion, Moving capacity of X-axis: 200mm, Moving capacity of Y-axis: 300mm, Moving capacity of Z-axis: 240mm, Moving speed is adjustable within 0-10mm/s, Moving accuracy is ±0.005mm

• High cutting accuracy, parallelism / planeness is within 0.1mm / 100mm

• Automatic on/off protective shield

• Stainless working table

• Water-jet type cleaning system

• Isolated lighting system

• Equipped with quick clamper

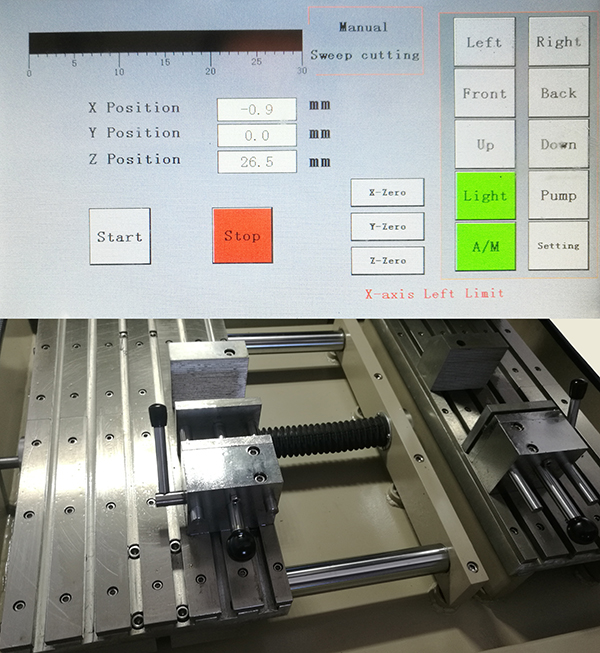

• HMI (Human Machine Interface) controlling.

Technical specifications

Cutting disc size: 450 × 3.5 × 32mm

Max. cutting diameter: 160mm

Frequency control speed adjustment: 0-2300 rpm

Feeding speed is adjustable within 0.005-10mm/s

120L circulating and cooling system, equipped with magnetic filter

Large working chamber 840mm x 980mm

Movable working table 580mm x 285mm

Fixed working table 580mm x 240mm

Motor power: 7.5KW

Power supply: 380V, 50HZ

Dimensions: 1800×1350×1870mm

Net Weight: 1100 KG

Optional accessories

Movable supporting stage

Diamond cutting disc
