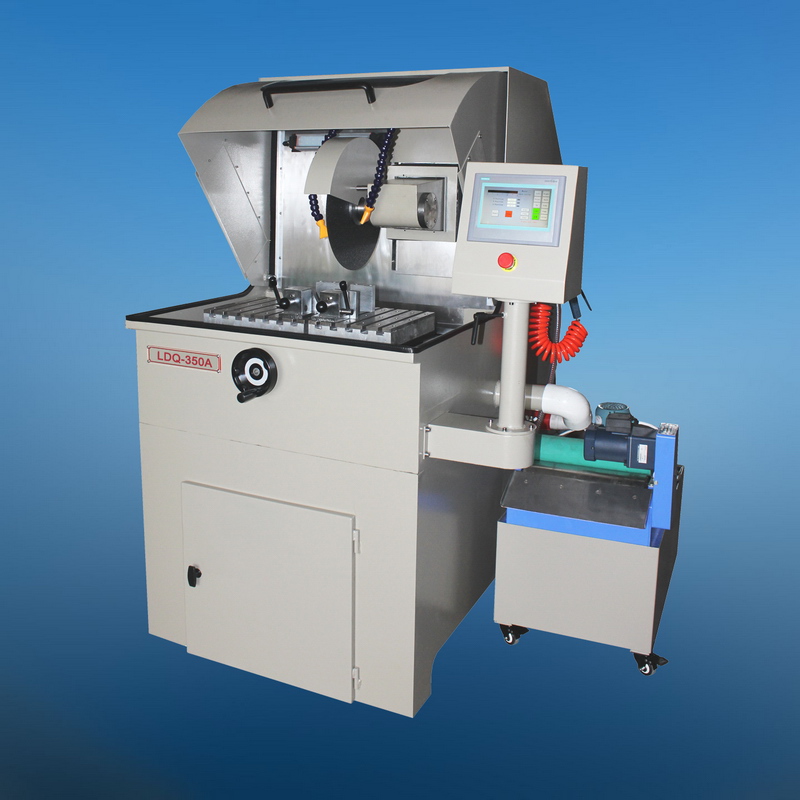

MODEL LDQ-350A

MANUAL / AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE

         Model LDQ-350A is a kind of manual / automatic metallographic cutting machine. It adopts SIEMENS PLC and features high reliability and controlling ability. It has touch screen HMI control interface and high accuracy stepping motor. This machine is suitable for precise cutting for all kinds of metal and non-metal materials and can get precise sample for metallographic and lithofacies organizations. This machine includes cutting system, lighting system, cooling system and cleaning system. Super cooling system can avoid specimen from burning while cutting. LDQ-350A adopts exchangeable manual / automatic cutting method with low noise and convenient, safe and reliable operation. It is the ideal option for colleges, laboratories, car manufacturing, steel manufactories, material research institutes and so on.

Features

• Three cutting type: Abrasive chop cutting, to-and-fro cutting, layer-to-layer cutting (for different materials, diameters and hardness)

• Max. moving capacity of Y-axis: 200mm

• High cutting accuracy, parallelism / planeness is within 0.1mm / 100mm

• Automatic on/off protective shield

• Stainless working table

• Water-jet type cleaning system

• Isolated lighting system

• Equipped with quick clamper

• HMI (Human Machine Interface) controlling.

Technical specifications

Cutting disc size: 350 × 2.5 × 32mm

Max. cutting diameter: 110mm

Rotating speed: 2300 rpm

Feeding speed is adjustable within 0.005-10mm/s

80L circulating and cooling system, equipped with magnetic filter

Large working chamber 860mm x 690mm

Stainless working table 580mm x 290mm

Motor power: 4 KW

Power supply: 380V, 50HZ

Dimensions: 1420 × 1180 × 1680mm

Net Weight: 700 KG

Optional accessories

Movable supporting stage

Diamond cutting disc
