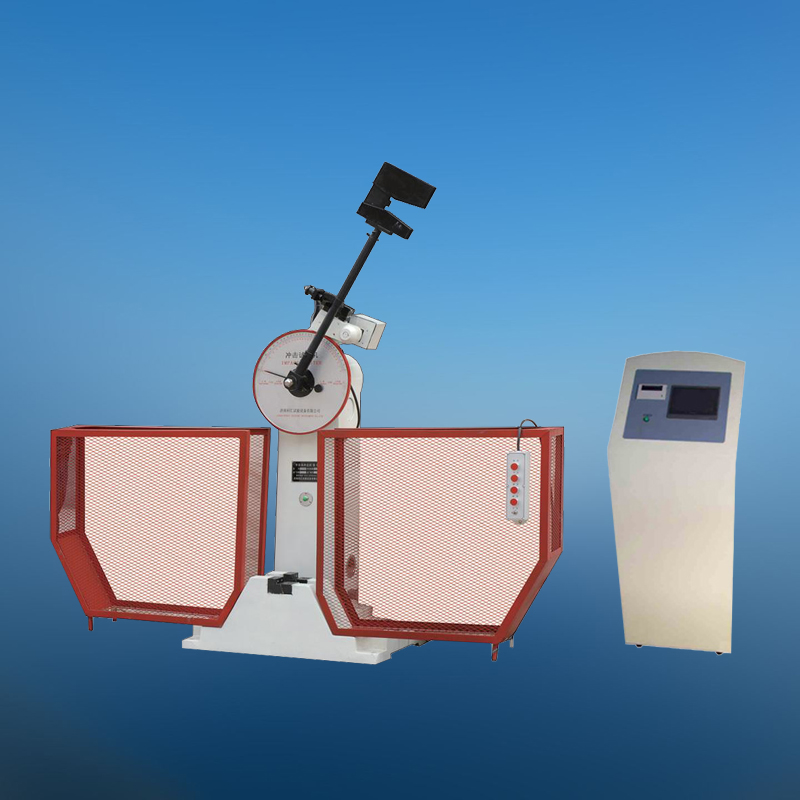

MODEL JBS-300B

DIGITAL DISPLAY SEMI-AUTOMATIC PENDULUM IMPACT TESTING MACHINE





Brief introduction:



   The machine can be used for the determination of anti-impact performance of metal materials when it is under dynamic loading, thus judged the quality of materials under dynamic loading. It is applicable for the laboratory, which does continuous compact tests, metallurgy, machinery manufacturing, and other industries.



Technical specifications:



Impact energy: 150J, 300J

Impact speed: 5.2m/s

Raising angle of pendulum: 150°

Span of support: 40mm

Round angle of support: R1.01.5mm

Round angle of impact edge: R2.02.5mm

Distance between center and impact point: 750mm

Sample size: 10×10×55mm

Power: 3-phase, 4-wire, 50Hz 380V

Dimension:  Impact tester 2124×600×1340mm,

                     Displayer 360×400×1200mm

Weight: 450kg



Main configuration:



Host machine: 1 set

Pendulum 300J, 150J: 2 pcs.

Motor (with machine)

Pendulum transport device: 1 set ( with machine)

Auto pendulum device:  1 set (with machine)

Insurance device: 1 set (with machine)

Safety device: 1 set (with machine)

Adjust device (support): 1 pc. ( with machine)

Align device: 1 pc.

Photoelectric sensor: 1 pc. (with machine)

Single chip microcomputer: 1 pc.

Micro-printer: 1 set

Dismounting device: 1 pc.
