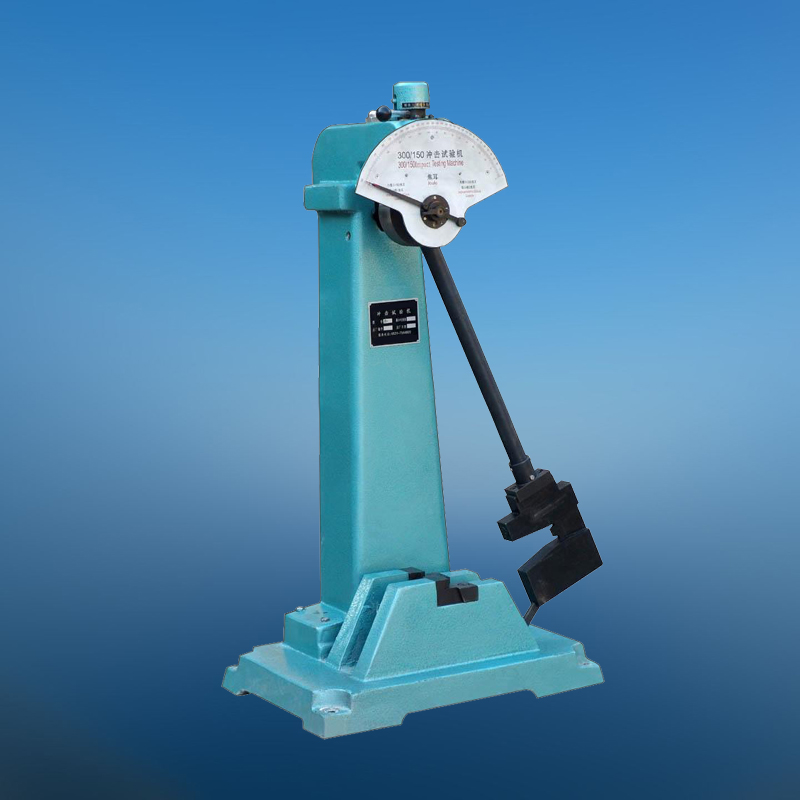

MODEL JB-300 MANUAL TYPE PENDULUM IMPACT TESTING MACHINE

    Model JB-300 manual type pendulum impact testing machine can be used to measure the impact resisting performance of the material. This is a kind of manual type testing machine, it features high working efficiency and convenient operation. It is especially suitable for the continuous impacting experiments applied in factories, laboratories, colleges etc. This machine is designed and developed according to national standard GB/T3808-2002 (ISO148-1998) "Pendulum Impact Testing Machine".

Technical specifications:

Impact energy: 300J (Larger hammer), 150 (smaller hammer)
Angel of the Pendulum raises in advance: 135°

Distance from the centre of hammer to impact point: 800mm

Impacting speed: 5.0m/s

Span of sample branch seat: 40mm

Radius of arc circle of sample branch seat: R1-1.5mm

Arc circle radius of impact knife: R2-2.5mm

Size of sample: 10×10×55mm

Size of outline: 700 × 500 × 1400mm

Net weight: 330Kg

Main Configuration:

Main machine: 1 set

300J pendulum, 150J pendulum: 1 pc. for each

Inner-Hexagon spanner S=12 : 1 pc.

Base adjustment device: 1 pc.

Specimen aligning device: 1 pc.

Pendulum take off device: 1 pc.

Foundation bolts: 4 pcs.
