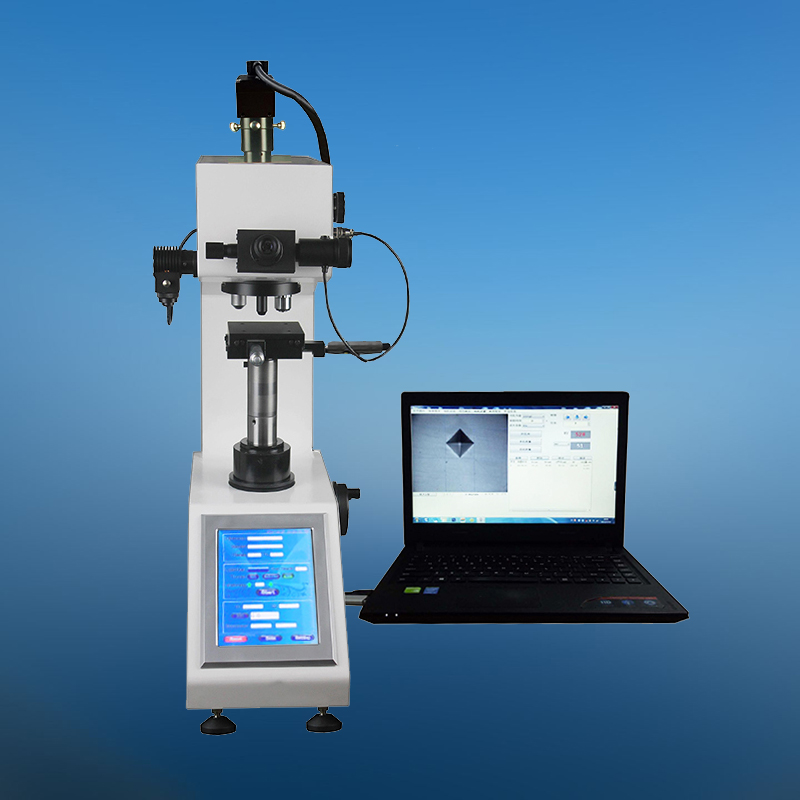

MODEL HVS-AM
VICKERS CCD IMAGE MEASURING SYSTEM
Features:
-
This system can
match a variety of Vickers hardness testers to upgrade unit hardness tester
to computer measuring system.
-
This measuring
system can be integrated with the hardness testers HVS- Z series;
computer-controlled for auto turret and brightness adjustment etc.
-
Suitable for
micro and Vickers hardness tester, the maximum test force can be 1, 5, 10,
30, 50Kg.
-

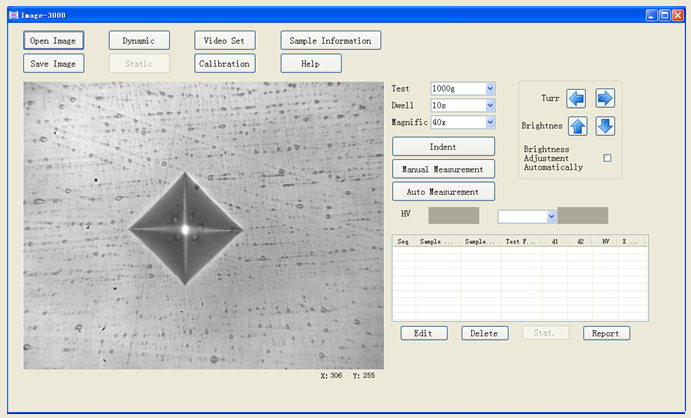

Image with high
resolution and indentation measurement by auto or manual;
-
Digital X-axis
value, and automatically enter the program automatically generates the deep
layer of hardness distribution curve (optional);
-
Calibration using
micrometer or hardness block, can be calibrated automatically;
-
Hardness
converted to other hardness scales according to ASTM standard.
-
Statistics for
hardness values and alarm for hardness values out of range;
-
Easy to install,
use laptops instead of desktop computers;
-
Interface is
simple and easy to use without training;
-
Test reports can
be customized; all testing data can be saved for long time and easy for
historical inquiry.
-
Digital camera
with 1280*1080 pixels, 1/2-inch, USB 2.0
Standard
Configuration:
Camera 1.3M pixel: 1
pc.
Interface tube: 1 pc.
U-disk containing the
software and manuals: 1 pc.
Dongle: 1 pc.
Optional
Accessories
Digital X-Y Stage: 1
pc.
Digital accuracy of X
& Y axis: 1μm.
The position of X
axis can enter into the hardness measuring program directly, and the program can
automatically calculate hardness along depth distribution curve and effective
hardened layer depth.
Lenovo Computer 1 pc.
|
|
