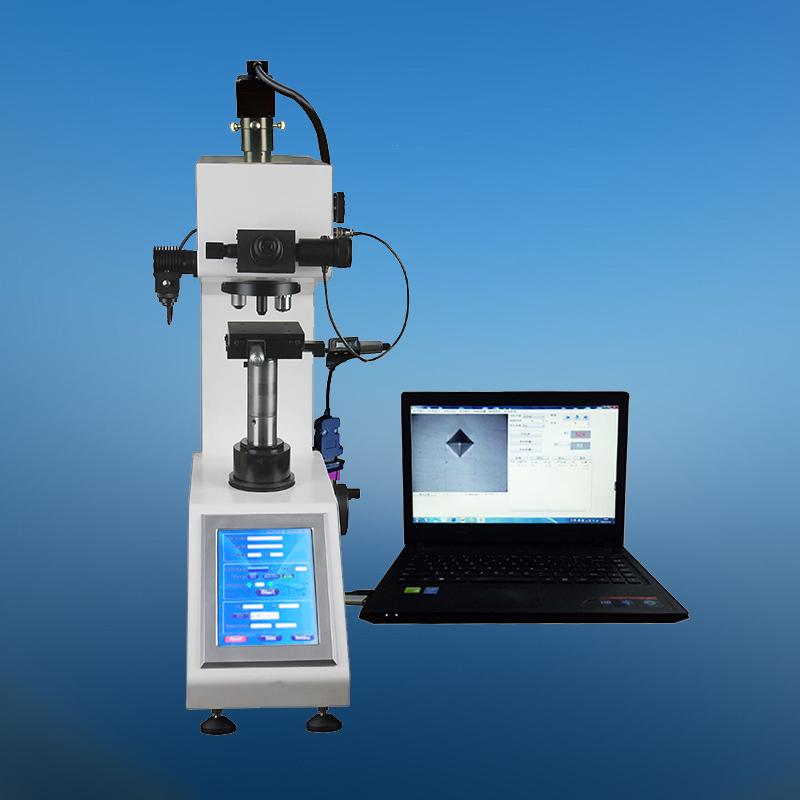

This measuring
system can be equipped with various kinds of Vickers Hardness Tester to
upgrade unit tester to measuring system.
-
The computer
controls the hardness tester, such as turret, light illumination adjustment
(only can be equipped with HVS- Z series).
-
It is applicable
to Micro Vickers and Vickers with max. testing forces to 1, 5, 10, 30,
50Kgf.
-
With clear image,
indentation measurement by automatic or manual.
-
Digital X axis
movement value can be input into program and generate hardened layer depth
distribution curve automatically.
-
Calibration by
micrometer or test block, can be automatically calibrated.
-
Hardness conforms
to ASTM standard to convert to other hardness scales, with hardness value
statistics and sound alarm beyond limitation.
-
Testing report
can be customized as per user’s requirement, all the testing data can be
saved permanently, easy to check.
-
The image is
clear, automatic / manual measurement of the indentation size.
-
The digital
sample position, automatically entered into the computer
-
Automatic
generation of hardness layer depth profile
-
Calibration using
micrometer or hardness block calibration, automatic calibration.
-
Hardness by GB
and ASTM converted to other hardness. statistical Hardness Value exceed
alarm.
-
Customized test
reports, all test data is always saved for easy historical inquiry.
-
The program
automatically calculates the hardness profile along the depth and effective
case depth
-
X, Y Axis
Location Digital Accuracy: 1μm
-
X axis location
value can enter into hardness measuring program directly, the program
calculate the hardness value along depth distribution curve and effective
hardened layer depth automatically.
