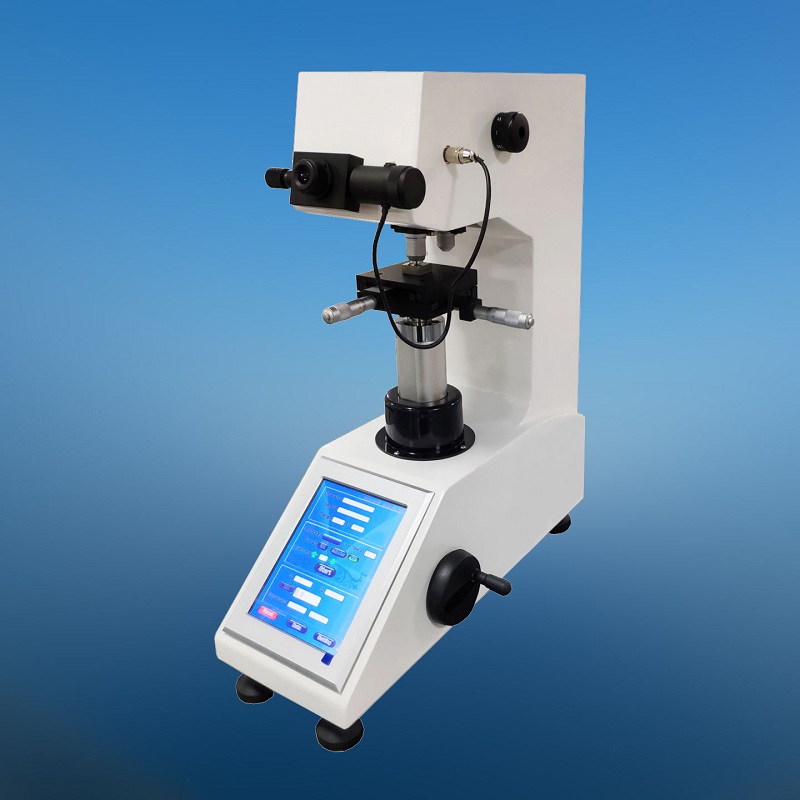

MODEL HVS-1000TS
TOUCH SCREEN DIGITAL DISPLAY MICRO VICKERS HARDNESS
TESTER
Features:
-
Simplified version without printer and
interface, single lens for measurement.
-
Manual turret shifting between indenter and
objective lens
-
Standard 8-level force, from 10gf (0.098N) to
1kgf (9.8N), 2Kgf (19.6N) is optional, users can customize the test force.
-
After measuring the indentation diagonal length,
the system will automatically calculate and display the hardness value.
-
Based on the standard block of different forces,
the hardness value can be corrected automatically.
-
8” Touch-screen interface, easy to operate,
multi-language is available.
-
Testing data can be saved into U disk directly
in EXCEL format, which is convenient for easy editing and processing
(Optional USB interface).
-
The information of test samples, operator etc.
can be input and saved.
-
Password can be set to protect setting
parameters.
-
Measured hardness value can be automatically
converted to other scales.
-
Modular design, easy maintenance, large space
for sample.
-
Optional image measuring system can be equipped
with this hardness tester so as to connect with computer for automatic
operation.
Application:
Heat treatment, carbide, quench hardened layer,
the surface coating layer, steel, non-ferrous metal and small and thin shape
parts, etc.
Technical Specifications:
|
Test force |
10gf (0.098N), 25gf (0.245N), 50gf
(0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N),
1kgf (9.8N) |
|
Standard Conformed to |
GB/T 4340.2, ISO 6507-2, ASTM E384 |
|
Min measuring unit |
0.01µm |
|
Conversion Scale |
HRA, HRB, HRC, HRD, HRF, HV, HK, HBW,
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
|
Hardness measuring range |
8~2900HV |
|
Method of testing force applied |
Automatic (Loading, Dwelling, Unloading) |
|
Turret Type |
Manual |
|
Test microscope magnification |
400X (Measuring)，100X (observation)
(Optional 50X, 200X, 500X, Maximum
1000X) |
|
Test force dwell time |
1~99s |
|
X-Y test sets |
Dimension: 100*100mm Maximum travel
25*25mm |
|
Data output |
Touch-screen display |
|
Maximum specimen height |
100mm |
|
Distance from the center to the outer
wall of the indenter |
135mm |
|
Power supply |
AC 220V or 110V, 50 or 60Hz |
|
Dimensions |
540*260*650mm |
|
Net Weight |
About 50Kg |
Operation Interface:

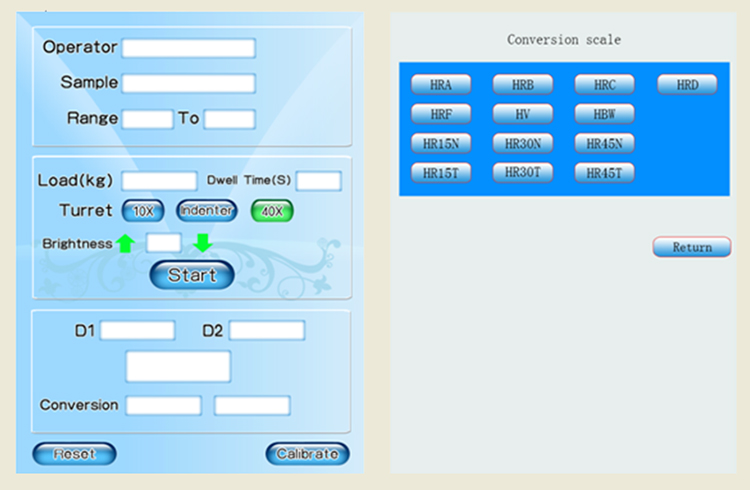

Main Interface
Conversion Scale Interface

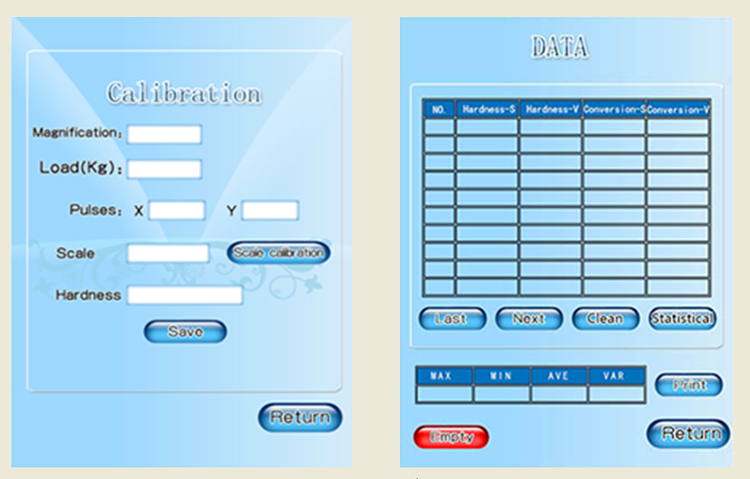

Calibration Interface
Data interface
Standard Accessories:
|
Item |
Quantity |
Item |
Quantity |
|
Axle weight |
1 |
Weight |
6 |
|
Cross test sets |
1 |
10X eyepiece test |
1 |
|
Vickers hardness block
(high block, low block) |
1 each |
USB disk (Optional) |
1 |
|
Level |
1 |
Plastic dust cover |
1 |
|
Screwdriver |
2 |
Adjusting screw |
4 pcs. |
|
Power line |
1 |
Spare fuse (2A) |
2 pcs. |
|
Product Manual |
1 |
Product certification |
1 |
Note: Special accessories can be
provided.
-
Knoop indenter: can measuring some high hardness
materials.
-
Video measuring apparatus can be provided. It
can display the testing indentation image on the screen and make the
measurement.
-
CCD image processing system can be provided. It
will clearly show indentation image on a computer screen, and make automatic
or manual measurement through PC.
-
Digital micrometer can be provided to be
equipped on X-Y stage to realize digital movement control.
|
|
