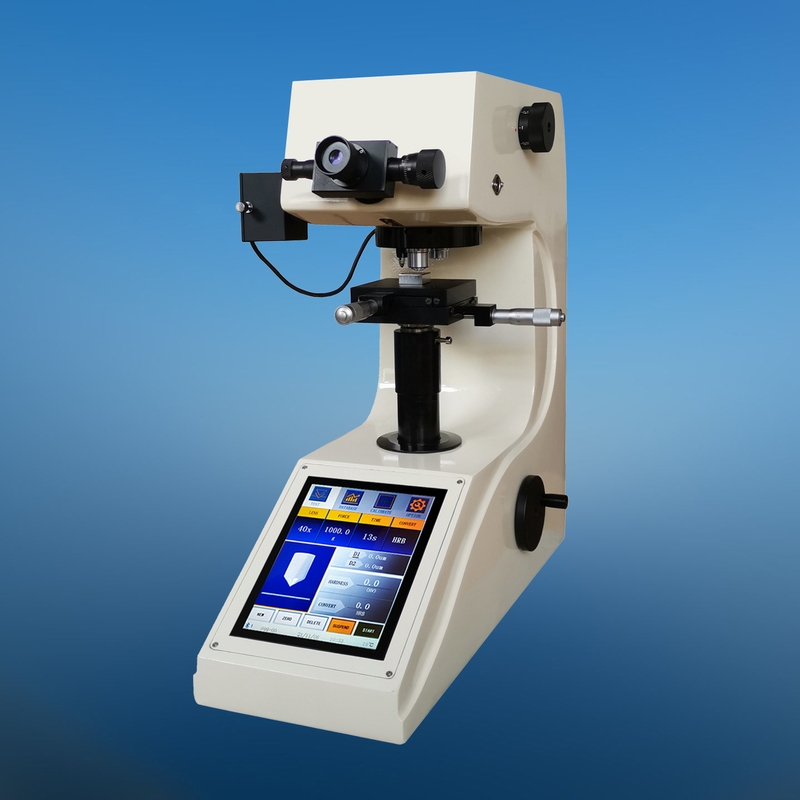

MODEL HV-1000TA
AUTO TURRET TOUCH SCREEN MICRO VICKERS HARDNESS
TESTER
Feature & Use
-
Automatic turret shifting between indenter and
objective lens.
-
Large 8” touch screen, direct visual display and
interactive operating interface.
-
Input D1 & D2 value from touch screen and
hardness value will be displayed on LCD directly.
-
High speed ARM processor, fast operation speed
and extensive database storage.
-
High quality integral casting cast iron machine
body with automotive paint treatment process, the appearance is smooth and
beautiful.
-
The hardness scale, test force, indenter type,
holding time and the conversion unit can be displayed on screen and set.
-
The turbo-worm elevating system can greatly
improve the testing stability and accuracy.
-
HD measurement and observation - dual objective
lens combination, combined with the HD micrometer eyepiece, greatly reduce
the manual interference and reading error.
-
Convenient control system
can automatically convert the unit of full hardness scales.
-
The maximum and minimum hardness values can be
set, when the test value exceeds the set range, an alarm sound will be
issued.
-
With the function of software hardness value
correction, the hardness value can be directly corrected within a certain
range.
-
With the database function, the testing data can
be saved automatically in groups, each group can save 10 data, totally can
save up to 2000 data.
-
With the hardness value curve display function,
intuitively display the changes of hardness value.
-
CCD image measuring system is optional.
-
Knoop indenter can be selected to measure the
Knoop hardness.
-
Equipped with wireless blue-tooth printer, the
data can be output through RS232 or USB interface.
-
Precision conforms to GB/T4340.2, ISO6507-2 and ASTM E384.
It can be
used to determine the Vickers hardness of steel, non-ferrous metals, ceramics,
treated layers of metal surface, and the hardness grads of carburized, nitrided
and hardened layers of metals. It is also suitable to determine the Vickers
hardness of micro and super thin parts.

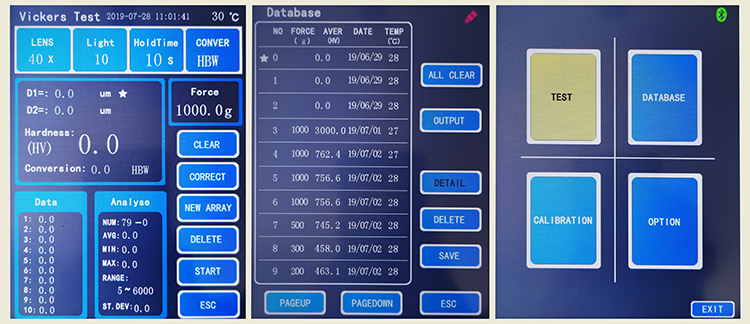

Main Interface
Technical Specifications:
|
Test force |
10, 25, 50, 100, 200, 300, 500, 1000gf
(0.09807, 0.2452, 0.4904, 0.9807, 1.961,
2.942, 4.904, 9.807N) |
|
Conversion Scale |
HRA, HRB, HRC, HRD, HRE, HRF, HV, HB,
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
|
Hardness measuring range |
5~2900HV |
|
Measuring resolution |
0.025µm |
|
Hardness resolution |
0.1HV |
|
Max Height of Specimen |
120mm |
|
Depth of throat |
110mm |
|
X-Y Testing table |
Dimension: 100*100mm Max. travel:
25*25mm
grade division of micrometer head:
0.01mm |
|
Carried standards |
GBT4340.2, ISO6507-2, ASTM E384 |
|
Magnification of eyepiece |
10X |
|
Magnification of objective lens |
10X, 40X |
|
Total magnification |
100X, 400X |
|
Data output |
LCD display, wireless blue-tooth
printer,
RS232 and USB interface |
|
Dwelling time |
1~99s |
|
Power supply |
AC 220V or 110V, 50 or 60Hz |
|
Overall Dimensions |
530*290*490mm |
|
Net weight |
About 45Kg |
Standard Accessories:
X-Y Coordinate test anvil: 1 pc.
Thin shaft anvil: 1 pc.
Thin plate anvil: 1 pc.
Flat nose pliers: 1 pc.
Large V-notch anvil: 1 pc.
Small V-notch anvil: 1 pc.
Diamond pyramid penetrator: 1 pc.
Micro-Vickers standardized block: 2 pcs.
Note: Special accessories can be
provided.
-
Knoop indenter: can measuring some high hardness
materials.
-
Video measuring apparatus can be provided. It
can display the testing indentation image on the screen and make the
measurement.
-
CCD image processing system can be provided. It
will clearly show indentation image on a computer screen, and make automatic
or manual measurement through PC.
-
Digital micrometer can be provided to be
equipped on X-Y stage to realize digital movement control.
|
|
