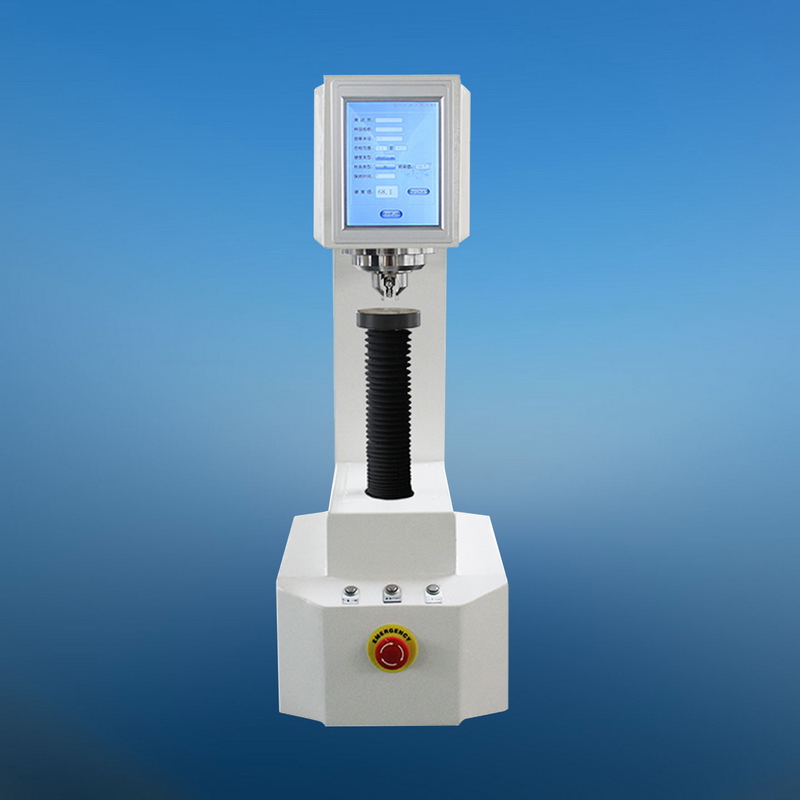

MODEL HSRS-45Z TOUCH SCREEN
DIGITAL DISPLAY AUTOMATIC SUPERFICIAL ROCKWELL HARDNESS
TESTER
Feature & Use
-
Automatic
rising of sample, automatic testing process, put the sample on work table,
press the "Start" button to obtain the hardness value of each sample
directly.
-
Electric
loading without weights, closed-loop controlling system, unnecessary for
installing weights and debugging. High-precision sensor.
-
Touch screen
interface, easy operation, select hardness scales directly and test force
will change in testing parameters accordingly.
-
Automatic
correction of high, medium and low hardness numbers in accordance with
standard hardness block.
-
Test force can
be automatically corrected by standard force meter
-
Automatically
apply the initial load and main load.
-
All Superficial
Rockwell scales, total 15 types.
-
Powerful data
processing functions. Various hardness scales conversion of HR, HB, HV etc.
Acceptable range setting, over-range alert, operator name and sample name
input etc.
-
More
information of sample and testing. Data stored in USB flash disk, EXCEL
format, easy for editing and processing.
-
Modern and
beautiful appearance, stable structure.
-
Larger sample
space, huge sample stage.
Technical Parameters:
|
Model |
HSRS-45Z |
|
Initial
load |
3Kgf (29.42N) |
|
Total
load |
15Kgf (147.1N), 30Kgf (294.2N), 45Kgf (441.3N) |
|
Superficial
Rockwell Scale |
HR15N HR30N HR45N HR15T HR30T HR45T
HR15W HR30W HR45W HR15X HR30X HR45X HR15Y HR30Y HR45Y
|
|
Hardness testing range |
HR15N:
70-94, HR30N: 42-86, HR45N: 20-77,
HR15TW:
67-93, HR30TW: 29-82, HR45TW: 10-72 |
|
Hardness conversion |
Rockwell, Brinell, Vickers, etc. |
|
Executive standard |
BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
|
Max
Height of Sample |
300mm |
|
Depth
of throat |
200mm |
|
Dwelling time |
1~99s |
|
Hardness unit |
0.1HR |
|
Load
value error |
＜0.5% |
|
Hardness reading |
LCD
display |
|
Data
output |
Data
stored in USB flash disk, EXCEL format |
|
Power
supply |
AC
220V/110V, 50/60Hz, single phase |
|
Overall
dimensions |
560×280×850mm |
|
Net
weight |
About
80kg |
Operation
Interface:
Main interface
All Superficial Rockwell scales, 15 in total
Automatic correction of hardness value
Automatic correction of load
Standard Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond
Rockwell Indenter |
1 |
1.5875mm Ball Indenter |
1 |
|
Hardness block (HR15N, HR30N, HR30T) |
3 |
Large,
Medium, “V” shaped Testing Table |
1 for each |
|
Fuse 2A |
2 |
Level
adjusting bolt |
4 |
|
Power
line |
1 |
Plastic
Dustproof cover |
1 |
|
USB
flash disk, touch pen |
1 for
each |
Operating instruction, Product certificate |
1 for each |
|
|
