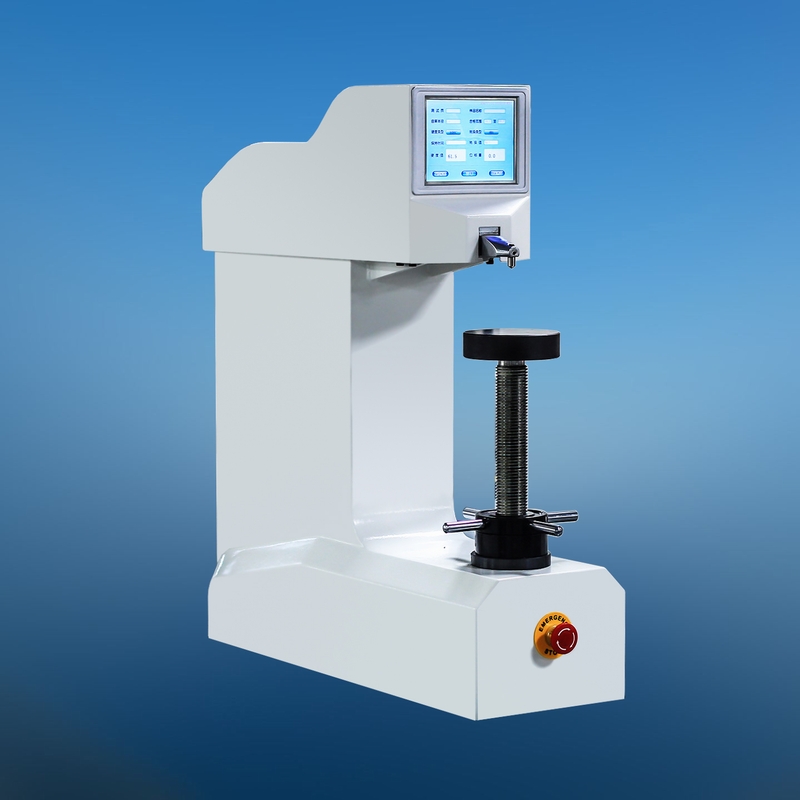

MODEL HSRS-45XC NOSED TOUCH SCREEN
DIGITAL DISPLAY SUPERFICIAL ROCKWELL HARDNESS
TESTER
Feature & Use
-
Specially designed head
horizontally protruding, it can measure the hardness of tubular parts which
can not be measured by general hardness testers, the minimum inner diameter
of test piece is 25mm.
-
Automatic "fool" type
operation, only one key operation to get result, no need for artificial
preload applying, which can avoid human error.
-
The touch-screen interface,
easy to operate, multi-language version
-
Electric loading without
weights, closed-loop control, no need for installation.
-
Test force can be
automatically corrected by standard force meter.
-
Automatically apply the
initial load and main load.
-
All Superficial Rockwell
scales, total 15 types.
-
For all Rockwell scales,
hardness value is automatically corrected in high, medium and low three
sections.
-
Set password to protect
setting parameters; keeping more samples and test information.
-
More information of sample
and testing. Data stored in USB flash disk, EXCEL format, easy for editing
and processing.
-
Powerful data processing
functions. Various hardness scales conversion of HR, HB, HV etc. Acceptable
range setting, over-range alert, operator name and sample name input etc.
-
Modular design, easy
maintenance.
-
Modern and beautiful
appearance, stable structure.
Applications:
Industrial production,
Inspection of product quality on processing technology. Ferrous and nonferrous
metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of
various thicknesses, carbide materials, powder metallurgy materials, hardness
and thermal spray coating. Sheet metal, thin-walled pipe, hardened steel, and
small parts of hardness. Widely used in machinery manufacturing, metallurgy
plants, universities, laboratories, etc.
Technical specifications:
|
Initial load |
3Kgf (29.42N) |
|
Total load |
15Kgf (147.1N), 30Kgf
(294.2N), 45Kgf (441.3N) |
|
Superficial
Rockwell Scale |
HR15N HR30N HR45N
HR15T HR30T HR45T HR15W HR30W HR45W HR15X HR30X HR45X
HR15Y HR30Y HR45Y |
|
Hardness testing
range |
HR15N: 70-94, HR30N:
42-86, HR45N: 20-77,
HR15TW: 67-93,
HR30TW: 29-82, HR45TW: 10-72 |
|
Display of Hardness
Value |
Touchable Large LCD
screen display |
|
Data Output |
USB Flash Disk |
|
Duration time |
1~99s |
|
Carried Standard |
BSEN 6508, ISO 6508,
ASTM E18, GB/T230 |
|
Conversion Scale |
Rockwell, Brinell,
Vickers, etc. |
|
Test force Deviation |
≤1% |
|
Testing accuracy |
0.1HR |
|
Max Height of
Specimen |
300mm |
|
Distance of Indenter to outer wall |
250mm |
|
Power supply |
AC 220V/110V,
50/60Hz, single phase |
|
Overall Dimensions |
720mm*260mm*840mm |
|
Weight |
80Kg |
Operation
Interface:
Main interface
All Superficial Rockwell scales, 15 in total
Data storage interface
Automatic correction interface
Standard Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond
Rockwell Indenter |
1 |
1.5875mm Ball Indenter |
1 |
|
Hardness block (HR15N, HR30N, HR30T) |
3 |
Large,
Medium, “V” shaped Testing Table |
1 for each |
|
Fuse 2A |
2 |
Level
adjusting bolt |
4 |
|
Power
line |
1 |
Plastic
Dustproof cover |
1 |
|
USB
flash disk, touch pen |
1 for
each |
Operating instruction, Product certificate |
1 for each |
|
|
