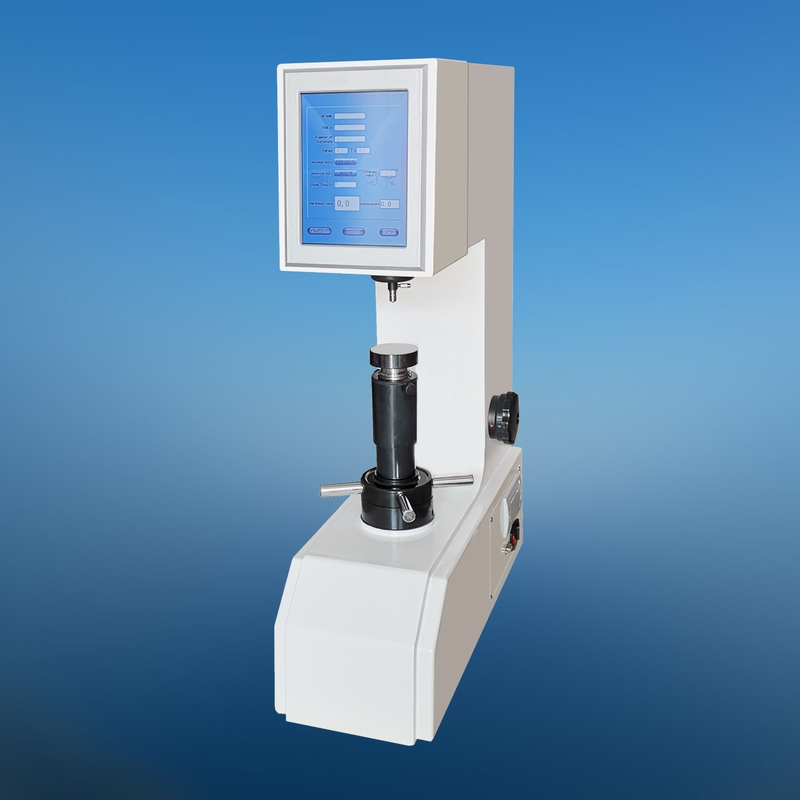

MODEL HSRS-45T
TOUCH SCREEN DIGITAL DISPLAY SUPERFICIAL ROCKWELL HARDNESS
TESTER
Feature & Use
-
Electric loading with
weights, high precision sensor.
-
8” Large touch screen
interface, easy operation, multi-language versions
-
All Superficial Rockwell
scales, total 15 types
-
Automatically apply the
initial load and main load
-
Automatic correction of high,
medium and low hardness values.
-
Built-in hardness value
correction of convex cylindrical surface.
-
RS232 interface and Built-in
printer (or USB interface is optional) for data output.
-
More sample and testing
information. Data stored in USB flash disk, EXCEL format, easy for editing
and processing
-
Powerful data processing
ability. Various hardness conversion including HR, HB, HV etc. Setting
acceptable range, over-limit alert, information input of operator and sample
name, etc.
-
Test results can be stored,
processed and printed automatically.
-
Modular design, easy
maintenance
-
Modern and beautiful
appearance, stable structure
Application:
It’s suitable to determine the Superficial Rockwell hardness of ferrous metals,
alloy steels and hard alloys, as well as treated layers of metal surface, such
as carburized layer, nitrided layer and electroplated coating, etc.
Specifications:
|
Initial load |
3Kgf (29.42N) |
|
Total load |
15Kgf (147.1N), 30Kgf
(294.2N), 45Kgf (441.3N) |
|
Superficial
Rockwell Scale |
HR15N HR30N HR45N
HR15T HR30T HR45T HR15W HR30W HR45W HR15X HR30X HR45X
HR15Y HR30Y HR45Y |
|
Hardness testing
range |
HR15N: 70-94, HR30N:
42-86, HR45N: 20-77,
HR15TW: 67-93,
HR30TW: 29-82, HR45TW: 10-72 |
|
Dwell time |
0-99s |
|
Resolution of
hardness value |
0.1HR |
|
Load value error |
≤1% |
|
Hardness reading |
LCD display
|
|
Screen size |
8 inch |
|
Data Storage |
Can store 60 kinds of
test results, RS-232 interface, built-in printer, or optional USB
flash disk automatic data storage |
|
Conversion Scale |
Rockwell,
Brinell, Vickers |
|
Carried Standard |
BSEN 6508, ISO 6508,
ASTM E18, GB/T230 |
|
Max Height of
Specimen |
200mm |
|
Distance of Indenter
to outer wall |
160mm |
|
Data output |
RS232 & built-in
printer (or choose USB interface) |
|
Power supply |
AC 220V/110V, 50/60Hz |
|
Overall Dimension (mm) |
560×200×800mm |
|
Net weight |
62kg |
Operation
Interface:

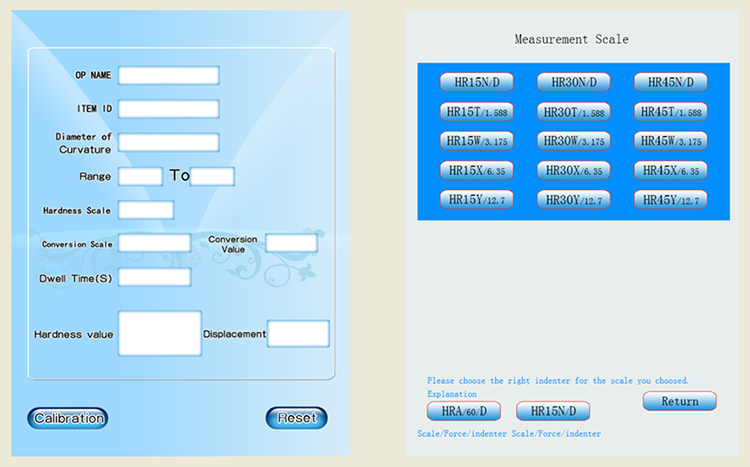

Main interface
All Superficial Rockwell scales, 15 in total

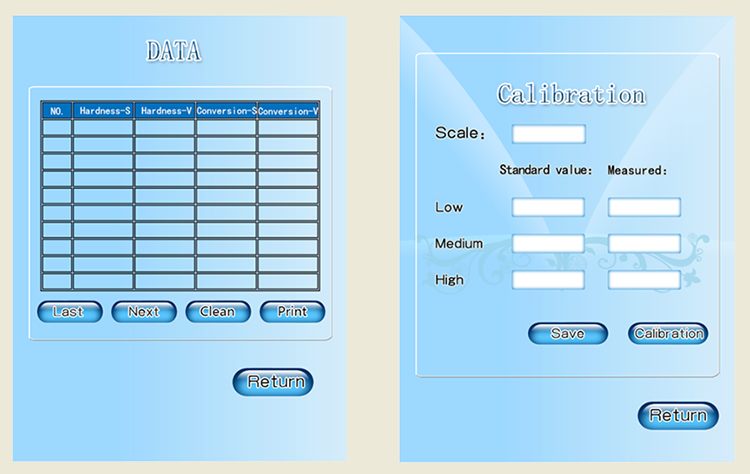

Data storage interface
Automatic correction interface
Standard
Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond Rockwell
Indenter |
1 |
1.5875mm Ball
Indenter |
1 |
|
Hardness block
(HR15N, HR30N, HR30T) |
3 |
Large, Medium, “V”
shaped Testing Table |
1 each |
|
Weights (A, B, C) |
1 each |
Plastic Dustproof
cover |
1 |
|
Fuse 2A |
2 |
Level adjusting bolt |
4 |
|
Power line |
1 |
Operation Manual |
1 |
|
Touch pen |
1 |
Product certificate |
1 |
|
|
