MODEL HRSS-150XC NOSED TOUCH SCREEN
DIGITAL DISPLAY ROCKWELL &
SUPERFICIAL ROCKWELL HARDNESS TESTER
Feature & Use:
-
Specially designed head
horizontally protruding, it can measure the hardness of tubular parts which
can not be measured by general hardness testers, the minimum inner diameter
of test piece is 25mm.
-
Automatic "fool" type
operation, only one key operation to get result, no need for artificial
preload applying, which can avoid human error.
-
The touch-screen interface,
easy to operate, multi-language version
-
Electric loading without
weights, closed-loop control, no need for installation.
-
Test force can be
automatically corrected by standard force meter.
-
Automatically apply the
initial load and main load.
-
All Rockwell & superficial
Rockwell scales, total 30 types.
-
For all Rockwell scales,
hardness value is automatically corrected in high, medium and low three
sections.
-
Set password to protect
setting parameters; keeping more samples and test information.
-
More information of sample
and testing. Data stored in USB flash disk, EXCEL format, easy for editing
and processing.
-
Powerful data processing
functions. Various hardness scales conversion of HR, HB, HV etc. Acceptable
range setting, over-range alert, operator name and sample name input etc.
-
Modular design, easy
maintenance. Modern and beautiful appearance, stable structure.
It's suitable to determine the Rockwell & Superficial Rockwell hardness of
ferrous metals, alloy steel and hard alloy, as well as treated layers of metal
surface, such as carburized layer, nitrided layer and electroplated coating,
etc. It is especially suitable for testing of tubular parts.
Technical
Parameters:
|
Model |
HRSS-150XC |
|
Rockwell initial load |
10kgf (98.07N) |
|
Superficial Rockwell
initial load |
3.0Kgf (29.4N) |
|
Rockwell total load |
60kgf (588.4N),
100kgf (980.7N), 150kgf (1471N) |
|
Superficial Rockwell
total load |
15kgf (147.1N), 30kgf
(249.2N), 45kgf (441.3N) |
|
Rockwell hardness
scales |
HRA, HRB, HRC, HRD,
HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
|
|
Superficial Rockwell
hardness scales |
HR15N, HR15T, HR15W,
HR15X, HR15Y, HR30N, HR30T, HR30W, HR30X, HR 30Y, HR45N, HR45T,
HR45W, HR45X, HR45Y |
|
Rockwell hardness
testing range |
HRA:20-95,
HRBW:10-100, HRC: 20-70, HRD: 40-77, HRE: 70-100, HRF: 60-100, HRG:
30-94, HRH: 80-100, HRK: 40-100, HRL: 100-120, HRM: 85-115, HRR:
114-125 |
|
Superficial Rockwell
hardness testing range |
HR15N: 70-94, HR30N:
42-86, HR45N: 20-77,
HR15TW: 67-93,
HR30TW: 29-82, HR45TW: 10-72 |
|
Hardness conversion |
Rockwell, Brinell,
Vickers, etc. |
|
Executive standard |
BSEN 6508, ISO 6508,
ASTM E18, GB/T230 |
|
Max Height of Sample |
300mm |
|
Depth of throat |
250mm |
|
Dwelling time |
1-99s |
|
Hardness unit |
0.1HR |
|
Load value error |
＜1% |
|
Hardness reading |
LCD display
|
|
Data output |
Data stored in USB
flash disk, EXCEL format |
|
Power supply |
AC 220V/110V,
50/60Hz, single phase |
|
Overall dimensions |
710×260×840mm |
|
Net weight
|
About 80kg |

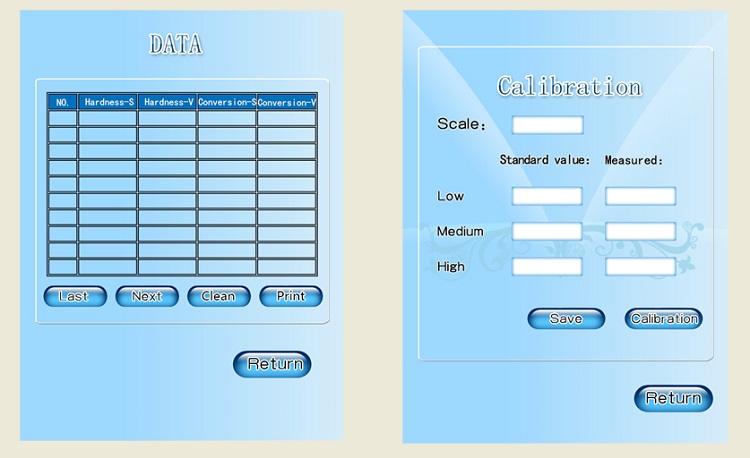

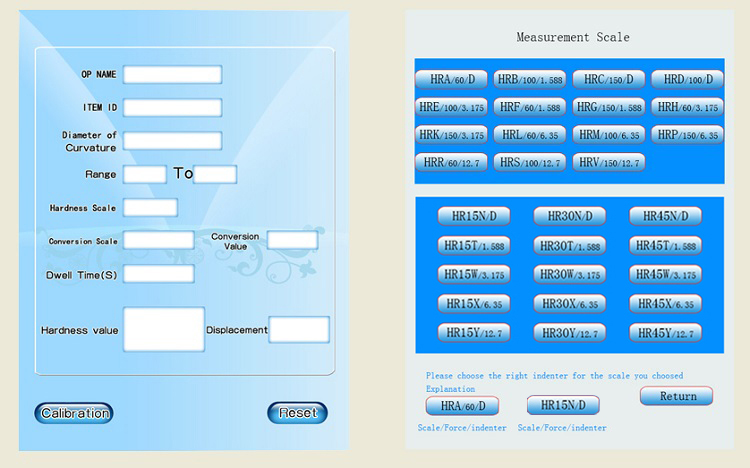

Operation Interface:
Main
interface
All Rockwell scales, 30 in total
Automatic correction of hardness value
Automatic correction of load
Standard
Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond Rockwell
Indenter |
1 |
1.5875mm Ball
Indenter |
1 |
|
Hardness block (HRC
High, Low, HRB, HR15N, HR30N, HR30T) |
6 |
Large, Medium, “V”
shaped Testing Table |
1 for each |
|
Fuse 2A |
2 |
Level adjusting bolt |
4 |
|
Power line |
1 |
Plastic Dustproof
cover |
1 |
|
USB flash disk, touch
pen |
1 for each |
Operating
instruction, Product certificate |
1 for each |
|
|
