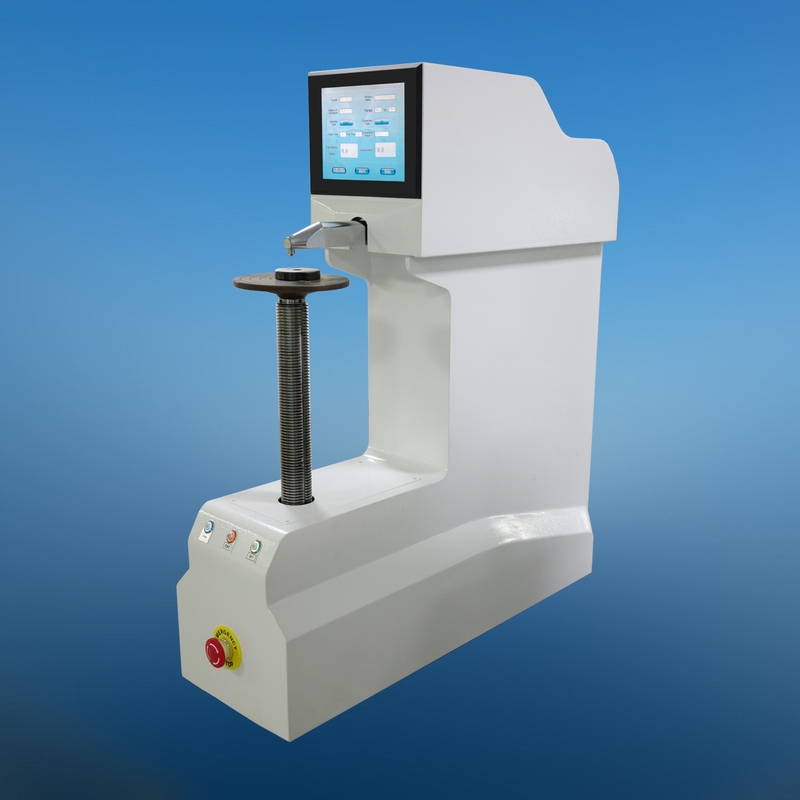

MODEL HRSS-150XC-Z AUTOMATIC NOSED TOUCH SCREEN
DIGITAL DISPLAY ROCKWELL &
SUPERFICIAL ROCKWELL HARDNESS TESTER
Feature & Use:
-
The specially designed indenter extends
horizontally and can measure parts such as rings and tubes that cannot be
measured by ordinary hardness testers, with a minimum test inner diameter of
25mm.
-
Adopting electronic electric loading,
high-precision sensors, and a unique closed-loop control system.
-
The workbench automatically lifts and lowers
without the need for manual rotation of the screw and wheel
-
Touch screen interface, easy to operate,
directly select the hardness scale, and the force value will automatically
change in the test parameters.
-
According to the standard hardness block,
automatically correct each hardness scale into three sections: high, medium,
and low.
-
The test force can be automatically corrected by
a standard force gauge.
-
Automatically apply the main test force.
-
The data processing function is powerful,
including the conversion of various hardness standards such as HR, HB, HV,
setting the qualified range, automatic alarm for exceeding the limit, and
the ability to input information such as tester and sample name.
-
More sample and experimental information,
measurement data saved in EXCEL format on a USB drive for easy editing and
processing.
-
It's suitable to determine the Rockwell &
Superficial Rockwell hardness of ferrous metals, alloy steel and hard alloy,
as well as treated layers of metal surface, such as carburized layer,
nitrided layer and electroplated coating, etc. It is especially suitable for
testing of tubular parts.
It's suitable to determine the Rockwell & Superficial Rockwell hardness of
ferrous metals, alloy steel and hard alloy, as well as treated layers of metal
surface, such as carburized layer, nitrided layer and electroplated coating,
etc. It is especially suitable for testing of tubular parts.
Technical
Parameters:
|
Model |
HRSS-150XC-Z |
|
Rockwell initial load |
10kgf (98.07N) |
|
Superficial Rockwell
initial load |
3.0Kgf (29.4N) |
|
Rockwell total load |
60kgf (588.4N),
100kgf (980.7N), 150kgf (1471N) |
|
Superficial Rockwell
total load |
15kgf (147.1N), 30kgf
(249.2N), 45kgf (441.3N) |
|
Rockwell hardness
scales |
HRA, HRB, HRC, HRD,
HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
|
|
Superficial Rockwell
hardness scales |
HR15N, HR15T, HR15W,
HR15X, HR15Y, HR30N, HR30T, HR30W, HR30X, HR 30Y, HR45N, HR45T,
HR45W, HR45X, HR45Y |
|
Rockwell hardness
testing range |
HRA:20-95,
HRBW:10-100, HRC: 20-70, HRD: 40-77, HRE: 70-100, HRF: 60-100, HRG:
30-94, HRH: 80-100, HRK: 40-100, HRL: 100-120, HRM: 85-115, HRR:
114-125 |
|
Superficial Rockwell
hardness testing range |
HR15N: 70-94, HR30N:
42-86, HR45N: 20-77,
HR15TW: 67-93,
HR30TW: 29-82, HR45TW: 10-72 |
|
Hardness conversion |
Rockwell, Brinell,
Vickers, etc. |
|
Executive standard |
BSEN 6508, ISO 6508,
ASTM E18, GB/T230 |
|
Max Height of Sample |
300mm |
|
Depth of throat |
220mm |
|
Dwelling time |
1-99s |
|
Hardness unit |
0.1HR |
|
Load value error |
＜1% |
|
Hardness reading |
LCD display
|
|
Data output |
Data stored in USB
flash disk, EXCEL format |
|
Power supply |
AC 220V/110V,
50/60Hz, single phase |
|
Overall dimensions |
720×260×840mm |
|
Net weight
|
About 80kg |
Operation Interface:
Main
interface
All Rockwell scales, 30 in total
Automatic correction of hardness value
Automatic correction of load
Standard
Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond Rockwell
Indenter |
1 |
1.5875mm Ball
Indenter |
1 |
|
Hardness block (HRC
High, Low, HRB, HR15N, HR30N, HR30T) |
6 |
Large, Medium, “V”
shaped Testing Table |
1 for each |
|
Fuse 2A |
2 |
Level adjusting bolt |
4 |
|
Power line |
1 |
Plastic Dustproof
cover |
1 |
|
USB flash disk, touch
pen |
1 for each |
Operating
instruction, Product certificate |
1 for each |
|
|
