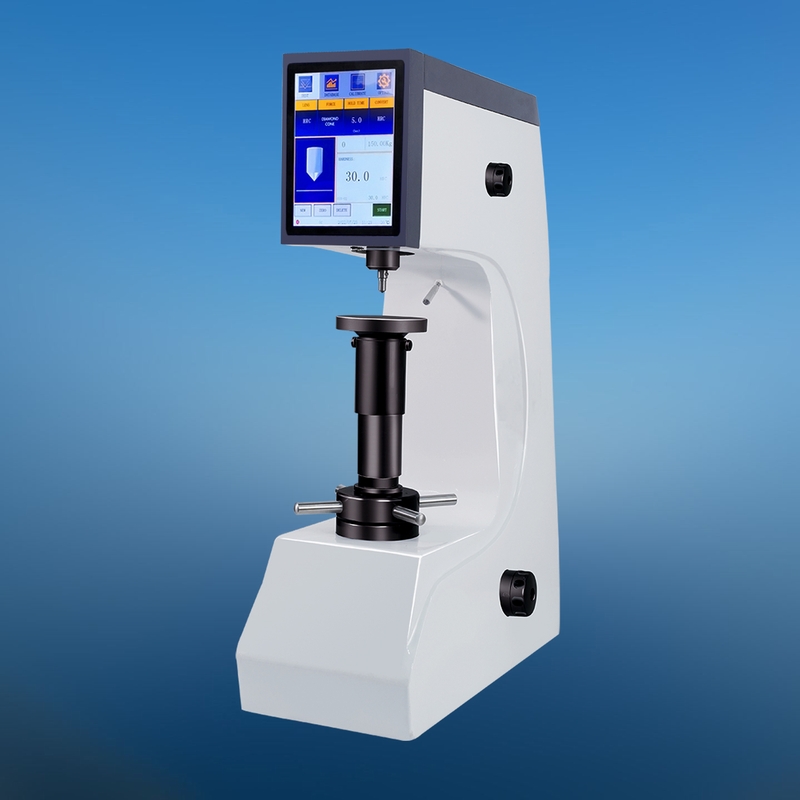

MODEL HRSS-150F TOUCH SCREEN

DIGITAL DISPLAY ROCKWELL & SUPERFICIAL ROCKWELL HARDNESS TESTER

Feature & Use:

• This HRSS-150F digital display Rockwell hardness tester integrates Rockwell and Superficial Rockwell in one machine. It adopts 8” large touch screen and high-speed ARM processor, direct visual display, friendly man-machine interaction, easy operation.

• High quality integral casting cast iron machine body, with automotive paint treatment process, the appearance is smooth and beautiful.

• The measuring device adopt grating displacement sensor, the test results are displayed on the LCD screen, the test scale, test force, indenter type, holding time and the conversion unit can be displayed and set.

• The electric loading without weights, closed-loop control, automatic loading, holding and unloading of the test force.

• The built-in test software can correct the measuring results automatically.

• Built-in hardness conversion system, automatic hardness conversion between full hardness scales.

• Built-in printer, data output through RS232 or USB interface.

• Accuracy is in line with GB/T230.2, ISO6508-2 and American ASTM E18 standard.

        It's suitable to determine the Rockwell & Superficial Rockwell hardness of ferrous metals, alloy steel and hard alloy, as well as treated layers of metal surface, such as carburized layer, nitrided layer and electroplated coating, etc.

Main interface

Specifications

Measuring range: 20-95HRA, 10-100HRBW, 20-70HRC

                            70-94HR15N, 67-93HR15TW, 42-86HR30N,

                            29-82HR30TW, 20-77HR45N, 10-72HR45TW

Test force: Rockwell 588.4, 980.7, 1471N (60, 100, 150kgf)

                  Superficial Rockwell 147.1, 294.2, 441.3N (15, 30, 45kgf)

Max. height of test piece: 200mm

Depth of throat: 160mm

Hardness resolution: 0.1HR

Dwelling time: 1~99s

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 510 x 290 x 730 mm

Weight: approx. 80kg

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Diamond cone penetrator: 1 pc.

1/16" steel ball penetrator: 1 pc.

Rockwell standardized block: 5 pcs.

Superficial Rockwell standardized block: 4 pcs.
