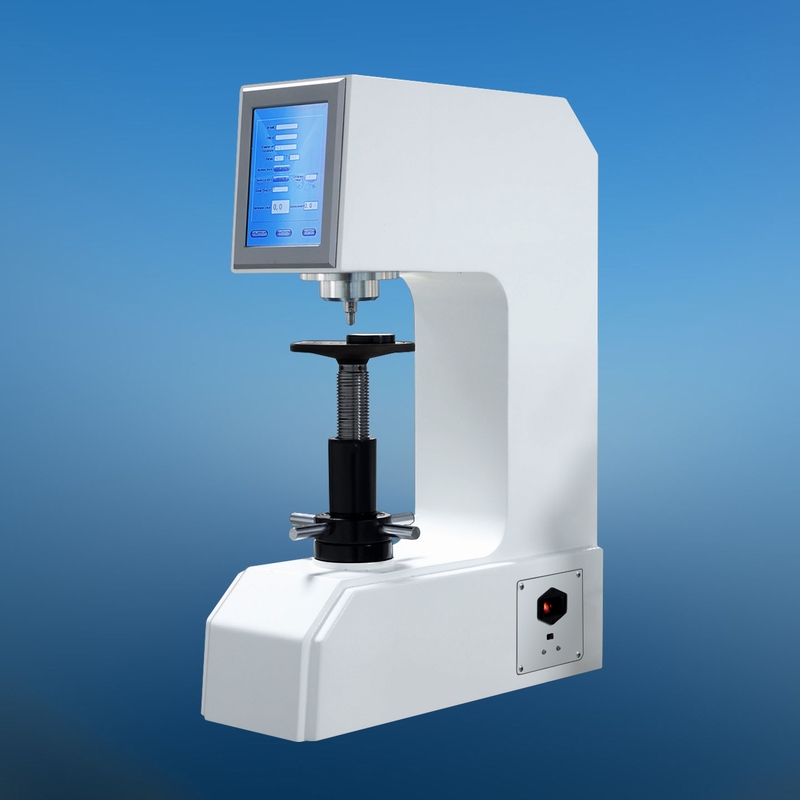

MODEL HRSS-150 TOUCH SCREEN
DIGITAL DISPLAY ROCKWELL &
SUPERFICIAL ROCKWELL HARDNESS TESTER
Feature & Use:
-
Electric loading without
weights, unnecessary for installing weights and debugging, closed-loop
controlling system, high-precision sensor.
-
Touch screen interface, easy
operation, select hardness scales directly and test force will change in
testing parameters accordingly
-
Automatic correction of high,
medium and low hardness numbers in accordance with standard hardness block
-
Test force can be
automatically corrected by standard force meter
-
Automatically apply the
initial load and main load
-
All Rockwell & superficial
Rockwell scales, total 30 types.
-
Powerful data processing
functions. Various hardness scales conversion of HR, HB, HV etc. Acceptable
range setting, over-range alert, operator name and sample name input etc.
-
More information of sample
and testing. Data stored in USB flash disk, EXCEL format, easy for editing
and processing
-
Modern and beautiful
appearance, stable structure
It's suitable to determine the Rockwell & Superficial Rockwell hardness of
ferrous metals, alloy steel and hard alloy, as well as treated layers of metal
surface, such as carburized layer, nitrided layer and electroplated coating,
etc.
Technical
Parameters:
|
Model |
HRSS-150 |
|
Rockwell initial load |
10kgf (98.07N) |
|
Superficial Rockwell
initial load |
3.0Kgf (29.4N) |
|
Rockwell total load |
60kgf (588.4N),
100kgf (980.7N), 150kgf (1471N) |
|
Superficial Rockwell
total load |
15kgf (147.1N), 30kgf
(249.2N), 45kgf (441.3N) |
|
Rockwell hardness
scales |
HRA, HRB, HRC, HRD,
HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
|
|
Superficial Rockwell
hardness scales |
HR15N, HR15T, HR15W,
HR15X, HR15Y, HR30N, HR30T, HR30W, HR30X, HR 30Y, HR45N, HR45T,
HR45W, HR45X, HR45Y |
|
Rockwell hardness
testing range |
HRA:20-95,
HRBW:10-100, HRC: 20-70, HRD: 40-77, HRE: 70-100, HRF: 60-100, HRG:
30-94, HRH: 80-100, HRK: 40-100, HRL: 100-120, HRM: 85-115, HRR:
114-125 |
|
Superficial Rockwell
hardness testing range |
HR15N: 70-94, HR30N:
42-86, HR45N: 20-77,
HR15TW: 67-93,
HR30TW: 29-82, HR45TW: 10-72 |
|
Hardness conversion |
Rockwell, Brinell,
Vickers, etc. |
|
Executive standard |
BSEN 6508, ISO 6508,
ASTM E18, GB/T230 |
|
Max Height of Sample |
220mm |
|
Depth of throat |
200mm |
|
Dwelling time |
0-99s |
|
Hardness unit |
0.1HR |
|
Load value error |
＜0.5% |
|
Hardness reading |
LCD display
|
|
Data output |
Data stored in USB
flash disk, EXCEL format |
|
Power supply |
AC 220V/110V,
50/60Hz, single phase |
|
Overall dimensions |
560×220×750mm |
|
Net weight
|
About 70kg |
Operation
Interface:
Main interface
All Rockwell scales, 30 in total
Automatic correction of hardness value
Automatic correction of load
Standard
Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond Rockwell
Indenter |
1 |
1.5875mm Ball
Indenter |
1 |
|
Hardness block (HRC
High, Low, HRB, HR15N, HR30N, HR30T) |
6 |
Large, Medium, “V”
shaped Testing Table |
1 for each |
|
Fuse 2A |
2 |
Level adjusting bolt |
4 |
|
Power line |
1 |
Plastic Dustproof
cover |
1 |
|
USB flash disk, touch
pen |
1 for each |
Operating
instruction, Product certificate |
1 for each |
|
|
