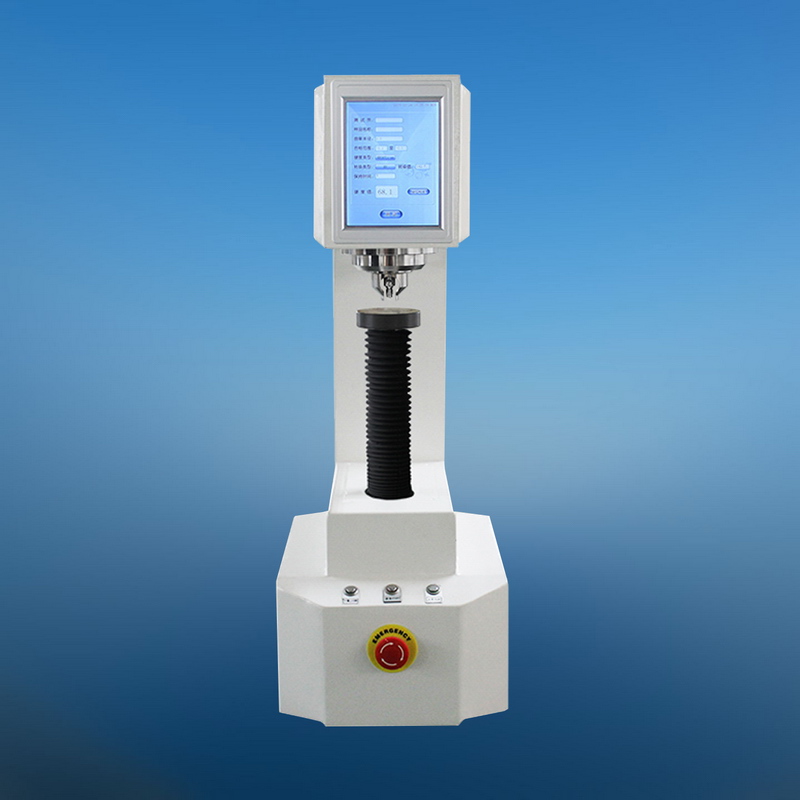

MODEL HRS-150Z
TOUCH SCREEN DIGITAL DISPLAY AUTOMATIC ROCKWELL
HARDNESS TESTER
Feature & Use:
-
Automatic rising of sample,
automatic testing process, put the sample on work table, press the "Start"
button to obtain the hardness value of each sample directly.
-
Electric loading without
weights, closed-loop controlling system, unnecessary for installing weights
and debugging. High-precision sensor.
-
Touch screen interface, easy
operation, select hardness scales directly and test force will change in
testing parameters accordingly.
-
Automatic correction of high,
medium and low hardness numbers in accordance with standard hardness block.
-
Test force can be
automatically corrected by standard force meter.
-
Automatically apply the
initial load and main load.
-
All Rockwell scales, total 15
types.
-
Powerful data processing
functions. Various hardness scales conversion of HR, HB, HV etc. Acceptable
range setting, over-range alert, operator name and sample name input etc.
-
More information of sample
and testing. Data stored in USB flash disk, EXCEL format, easy for editing
and processing.
-
Modern and beautiful
appearance, stable structure.
-
Larger sample space, huge
sample stage.
Application:
Industrial production,
Inspection of product quality on processing technology. Ferrous and nonferrous
metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of
various thicknesses, carbide materials, powder metallurgy materials, hardness
and thermal spray coating. Sheet metal, thin-walled pipe, hardened steel, and
small parts of hardness. Widely used in machinery manufacturing, metallurgy
plants, universities, laboratories, etc.
Specifications:
|
Model |
HRS-150Z |
|
Initial load of
Rockwell |
10kgf (98N) |
|
Total load of
Rockwell |
60kgf (588.4N) ,
100kgf (980.7N), 150kgf (1471N) |
|
Load value error |
Less than 0.5% |
|
Hardness testing
range |
HRA:20-95,
HRBW:10-100 , HRC:20-70 , HRD:40-77 , HRE:70-100 , HRF:60-100 ,
HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120 HRM:85-115,
HRR:114-125 |
|
Hardness measurement
accuracy |
0.1HR |
|
Executive standard |
GB/T230.1 GB/T230.2
national standard JJG112 verification regulation |
|
Max Height of Sample |
300mm |
|
Distance of Indenter to outer wall |
200mm |
|
Hardness reading |
LCD display |
|
Data output |
USB flash disk |
|
Exchanging scales |
Rockwell, Brinell,
Vickers |
|
Dwelling time |
1~99s |
|
Power supply |
AC 220V/110V,
50/60Hz, single phase |
|
Overall dimensions |
560×280×850mm |
|
Net weight
|
About 80kg |
Operation
Interface:
Main interface
All Rockwell scales, 15 in total
Data storage interface
Automatic correction interface
Standard
accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond Rockwell indenter |
1 |
Ball indenter with the diameter of 1.5875 mm |
1 |
|
Hardness block
(HRB, HRC high, HRC low) |
3 |
Large, medium, V-type testing table |
1 for each |
|
Fuse 2A
|
2 |
Level adjusting bolts |
4 |
|
Power line |
1 |
Plastic Dustproof
cover |
1 |
|
USB flash disk, touch
pen |
1 for each |
Operation Manual
Product certificate |
1 for each |
|
|
