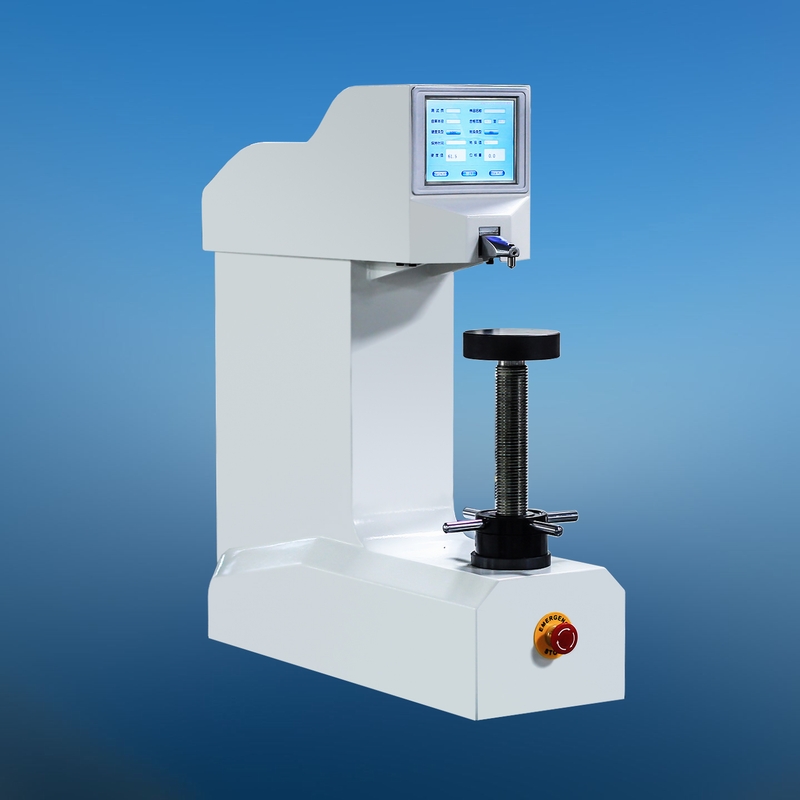

MODEL HRS-150XC
NOSED TOUCH SCREEN DIGITAL DISPLAY ROCKWELL
HARDNESS TESTER
Feature & Use:
-
Specially designed head
horizontally protruding, it can measure the hardness of tubular parts which
can not be measured by general hardness testers, the minimum inner diameter
of test piece is 25mm.
-
Automatic "fool" type
operation, only one key operation to get result, no need for artificial
preload applying, which can avoid human error.
-
The touch-screen interface,
easy to operate, multi-language version
-
Electric loading without
weights, closed-loop control, no need for installation.
-
Test force can be
automatically corrected by standard force meter.
-
Automatically apply the
initial load and main load.
-
All Rockwell scales, total 15
types.
-
For all Rockwell scales,
hardness value is automatically corrected in high, medium and low three
sections.
-
Set password to protect
setting parameters; keeping more samples and test information.
-
More information of sample
and testing. Data stored in USB flash disk, EXCEL format, easy for editing
and processing.
-
Powerful data processing
functions. Various hardness scales conversion of HR, HB, HV etc. Acceptable
range setting, over-range alert, operator name and sample name input etc.
-
Modular design, easy
maintenance.
-
Modern and beautiful
appearance, stable structure.
Applications:
Industrial production,
Inspection of product quality on processing technology. Ferrous and nonferrous
metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of
various thicknesses, carbide materials, powder metallurgy materials, hardness
and thermal spray coating. Sheet metal, thin-walled pipe, hardened steel, and
small parts of hardness. Widely used in machinery manufacturing, metallurgy
plants, universities, laboratories, etc.
Technical
specifications:
|
Conversion Scale |
Brinell, Vickers |
|
Display of Hardness
Value |
Touchable Large LCD
screen display |
|
Duration time |
1~99s |
|
Carried Standard |
GB/T 230.2 Chinese
Standard, JJG112 Inspection Rule |
|
Preliminary Testing
force |
10kgf (98.07N) |
|
Testing force |
60kgf (588N), 100kgf (980N), 150kgf (1471N) |
|
Rockwell Scale |
HRA, HRB, HRC, HRD,
HRE, HRF, HRG, HRH, HRK |
|
Hardness measuring
range |
HRA:20-95
HRBW:10-100 HRC:20-70 HRD:40-77
HRF:60-100
HRG:30-94 HRH:80-100 HRK:40-100 |
|
Test force Deviation |
≤1% |
|
Hardness Resolution |
0.1HR |
|
Data Output |
USB Flash Disk |
|
Max Height of
Specimen |
300mm |
|
Distance of Indenter to outer wall |
250mm |
|
Power supply |
AC 220V/110V,
50/60Hz, single phase |
|
Overall Dimensions |
710mm*260mm*840mm |
|
Net weight |
80Kg |
Operation
Interface:
Main interface
All Rockwell scales, 15 in total
Data storage interface
Automatic correction interface
Standard
Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond Rockwell indenter |
1 |
Ball indenter with the diameter of 1.5875 mm |
1 |
|
Hardness block
(HRB, HRC high, HRC low) |
3 |
Large, medium, V-type testing table |
1 for each |
|
Fuse 2A
|
2 |
Level adjusting bolts |
4 |
|
Power line |
1 |
Plastic Dustproof
cover |
1 |
|
USB flash disk, touch
pen |
1 for each |
Operation Manual
Product certificate |
1 for each |
|
|
