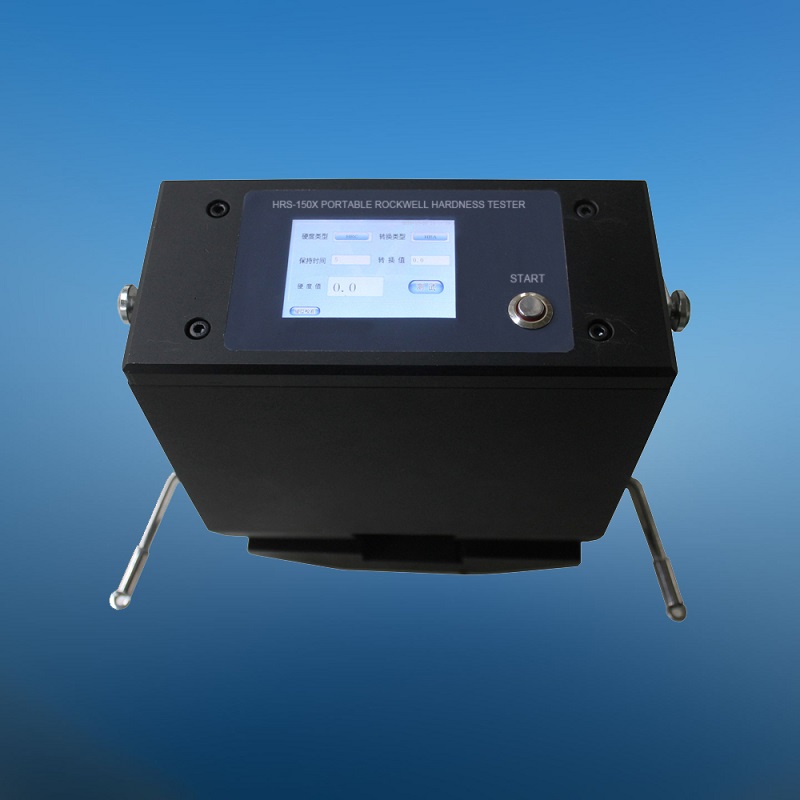

MODEL HRS-150X
PORTALE TOUCH SCREEN DIGITAL DISPLAY
ROCKWELL HARDNESS TESTER
Feature & Use
-
Electric
loading without weights, high-precision sensor and possesses unique
close-loop control system.
-
Touch-screen interface,
convenient operation. Choose hardness scale directly and test force value
will change automatically in test parameters.
-
Auto-correction of high,
medium and low scales of Rockwell hardness values according to standard
blocks.
-
Auto-correction of test force
through standard dynamo-meter.
-
Automatic applying of initial
and main test force.
-
Strong data processing
function including: HR, HB, HV and multiple hardness scale conversion,
setting of valid range, auto alarm when limit is exceeded, input name of
operator, name of sample and other information, etc.
-
More samples and testing
information. Testing data can be saved automatically to excel format and
saved on u-disk for convenience of editing and processing.
HRS-150X is a kind of high precision portable type Rockwell hardness tester and
it’s suitable to determine the hardness quickly for large, gang mounted, non
cutting or inconvenient moving magnetic metal work pieces on the spot, such as
rail, machine bed, etc.
Specifications:
|
Initial test force |
10kgf (98.07N) |
|
Total test force |
60kgf (588N), 100kgf
(980N), 150kgf (1471N) |
|
Rockwell hardness
scale |
HRA, HRB, HRC, HRD,
HRE, HRF, HRG, HRH,
HRK, HRL, HRM, HRR,
HRP, HRS, HRV |
|
Testing range |
HRA:20-95,
HRBW:10-100, HRC: 20-70, HRD: 40-77, HRE: 70-100, HRF: 60-100, HRG:
30-94, HRH: 80-100, HRK: 40-100, HRL: 100-120, HRM: 85-115, HRR:
114-125 |
|
Duration time |
1-99s |
|
Hardness resolution
ratio |
0.1HR |
|
Test force deviation |
＜0.5% |
|
Data output |
LCD display |
|
Data saving |
Measurement data
saved in u-disk in Excel format |
|
Conversion scale |
Rockwell; superficial
Rockwell; Brinell; Vickers |
|
Criteria met |
BSEN 6508, ISO 6508,
ASTM E18, GB/T230 |
|
Specimen dimensions |
Plane surface:
area≥160X100, thickness≥5mm |
|
Power Voltage |
AC220V/110V,
50/60Hz |
|
Size |
320×170×230mm |
|
Weight |
10.5kg |
Operation
Interface:

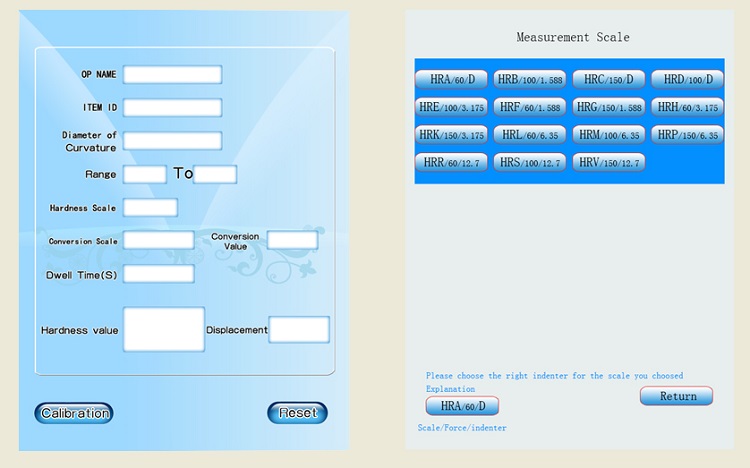

Main interface
All Rockwell scales, 15 in total

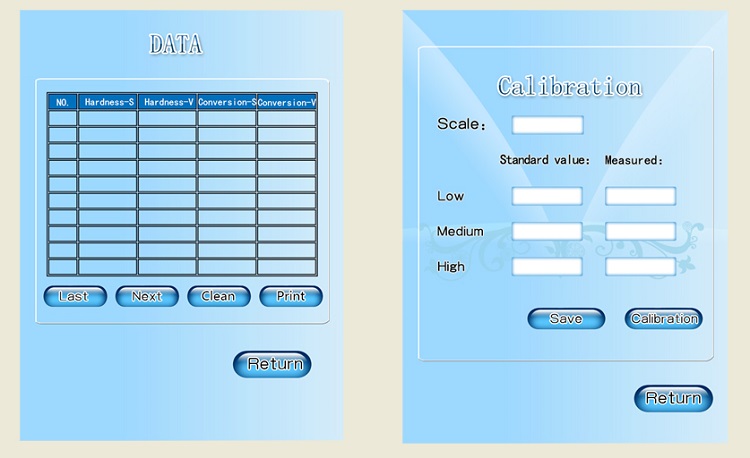

Data storage interface
Automatic correction interface

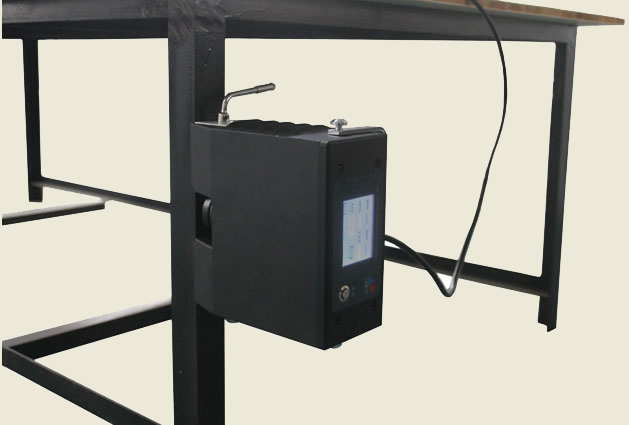

Homeotropic adsorption
Standard
Accessories:
|
Item |
Quantity |
Item |
Quantity |
|
Diamond Rockwell
indenter |
1 |
Power source |
1 |
|
Hardness block
(HRC high and low,
HRB) |
3 |
U disk, touch pen |
Each 1 |
|
Iron base |
1 |
Manual |
1 |
|
Power cord |
1 |
Product certificate |
1 |
|
|
