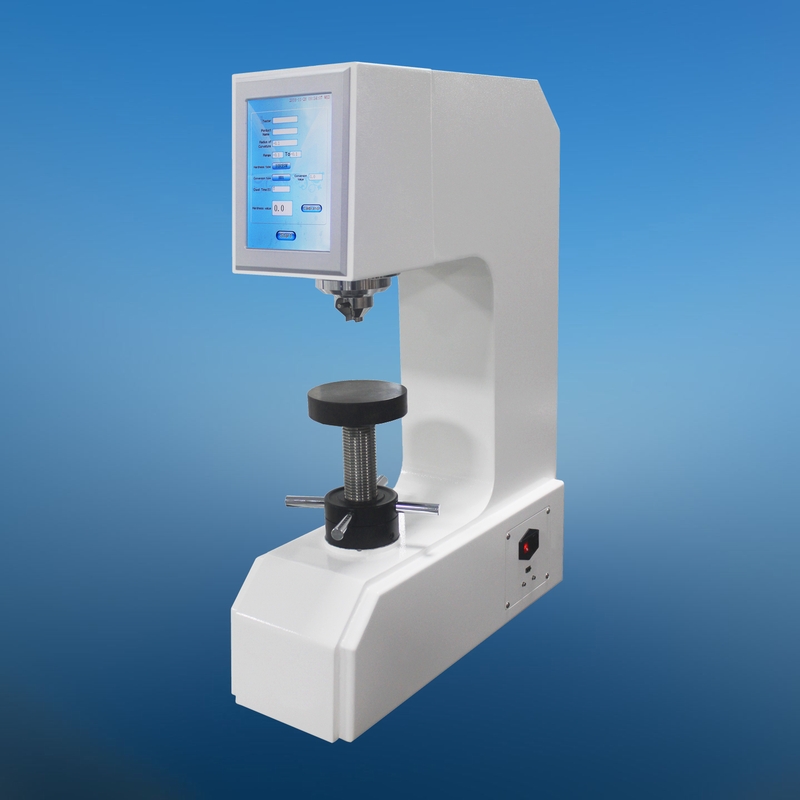

MODEL HRS-150TE
TOUCH SCREEN DIGITAL DISPLAY ROCKWELL
HARDNESS TESTER
Feature & Use:
-
Electric loading without
weights, closed-loop control, unnecessary for installing weights and
debugging, high precision sensor.
-
8” Large touch screen
interface, easy operation, multi-language versions
-
Choose hardness scale
directly and test load will change automatically in testing parameters
-
All Rockwell scales, total 15
types
-
Automatically apply the
initial load and main load
-
Automatic correction of high,
medium and low hardness values
-
Automatic correction of load,
with the force accuracy increased by a numerical level
-
Built-in hardness value
correction of convex cylindrical surface.
-
RS232 interface and Built-in
printer (or USB interface is optional) for data output.
-
More sample and testing
information. Data stored in USB flash disk, EXCEL format, easy for editing
and processing
-
Powerful data processing
ability. Various hardness conversion including HR, HB, HV etc. Setting
acceptable range, over-limit alert, information input of operator and sample
name, etc.
-
Test results can be stored,
processed and printed automatically.
-
Modular design, easy
maintenance
-
Modern and beautiful
appearance, stable structure
Application:
It’s suitable to determine the Rockwell hardness of ferrous and nonferrous
metals, hardened steel, tempered steel, annealed steel, hardened steel, sheet of
various thicknesses, carbide materials, powder metallurgy materials and thermal
spray coating.
Specifications:
|
Initial load of
Rockwell |
10kgf (98.07N) |
|
Total load of
Rockwell |
60kgf (588N), 100kgf
(980N), 150kgf (1471N) |
|
Rockwell Scale |
HRA, HRB, HRC, HRD,
HRE, HRF, HRG, HRH,
HRK, HRL, HRM, HRR,
HRP, HRS, HRV |
|
Hardness testing
range |
HRA:20-95,
HRBW:10-100, HRC:20-70, HRD:40-77,
HRE:70-100,
HRF:60-100, HRG:30-94, HRH:80-100,
HRK:40-100,
HRL:100-120, HRM:85-115, HRR:114-125 |
|
Dwell time |
1~99s |
|
Hardness resolution |
0.1HR |
|
Load value error |
＜0.5% |
|
Hardness reading |
LCD display
|
|
Screen size |
8 inch |
|
Data Storage |
Can store 60 kinds of
test results, built-in printer, RS-232 interface, optional USB flash
disk automatically stored |
|
Conversion Scale |
Superficial Rockwell,
Brinell, Vickers, etc. |
|
Carried Standard |
BSEN 6508, ISO 6508,
ASTM E18, GB/T230 |
|
Max Height of Sample |
200mm |
|
Distance of Indenter to outer wall |
200mm |
|
Data output |
USB interface (or
choose RS232, built-in printer) |
|
Power supply |
AC 220V/110V, 50/60HZ |
|
Overall Dimension (mm) |
560×200×800mm |
|
Net weight |
65kg |
Operation
Interface:
Main interface
All Rockwell scales, 15 in total
Data storage interface
Automatic correction interface
Standard
Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond Rockwell indenter |
1 |
Ball indenter with the diameter of 1.5875 mm |
1 |
|
Hardness block
(HRB, HRC high, HRC low) |
3 |
Large, medium, V-type testing table |
1 for each |
|
Fuse 2A
|
2 |
Level adjusting bolts |
4 |
|
Power line |
1 |
Plastic Dustproof
cover |
1 |
|
USB flash disk, touch
pen |
1 for each |
Operation Manual
Product certificate |
1 for each |
|
|
