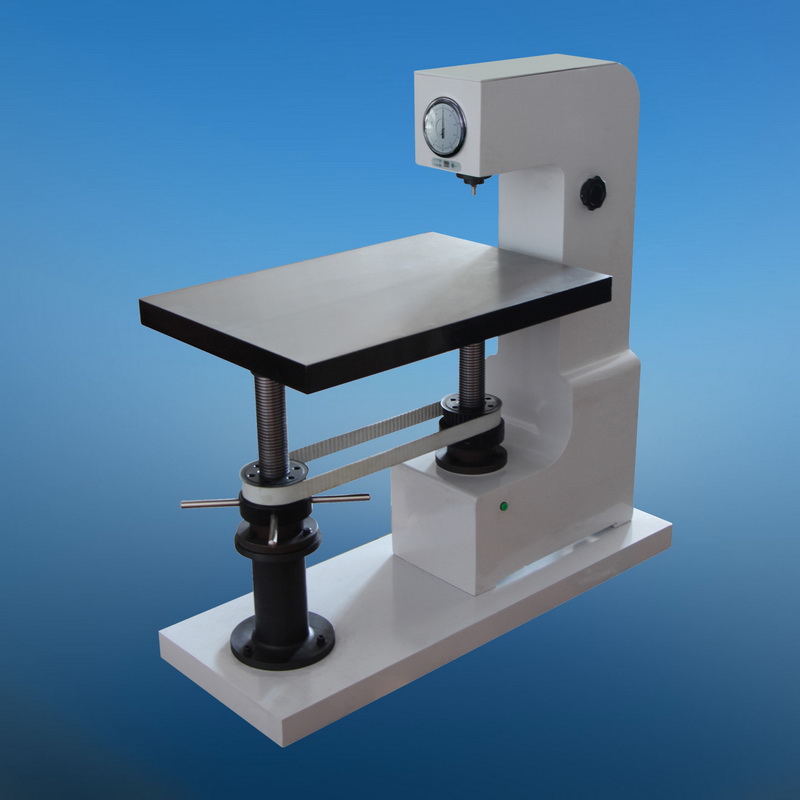

MODEL HRD-150BL

LENGTHENED & HEIGHTENED MOTOR-DRIVEN ROCKWELL HARDNESS TESTER

Feature & Use

• Lengthened and heightened machine body, enlarged work table with twin-axis linkage structure, which makes it very suitable for hardness testing of large and thin work pieces.

• Direct hardness reading from dial gauge.

• High quality integral casting cast iron machine body, with automotive paint treatment process, the appearance is smooth and beautiful.

• The loading, holding and unloading of the test force are controlled by motor, the manual operation error is eliminated.

• Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18

        This lengthened and heightened Rockwell hardness tester is specially customized on the basis of normal motor-driven type Rockwell hardness tester. The structure and worktable are specially designed which make it more applicable. It’s suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.

Main Technical Parameters:

Measuring range: 20-95HRA, 10-100HRBW, 20-70HRC

Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)

Large work table size: 730*500mm (or customizable)

Max. Height of test piece: 320mm

Depth of throat: 160mm

Hardness resolution: 0.5HR

Dimensions: 1040*500*1100mm

Dwelling time: 1~99s

Power supply: 220V AC or 110V AC, 50 or 60Hz

Net weight: 330 Kg

Standard Accessories:

Large test table: 1 pc.

Small test table: 1 pc.

V-notch test table: 1 pc.

Diamond cone indenter: 1 pc.

1/16” Tungsten carbide ball indenter: 1 pc.

Standardized Rockwell hardness block: 5 pcs.
