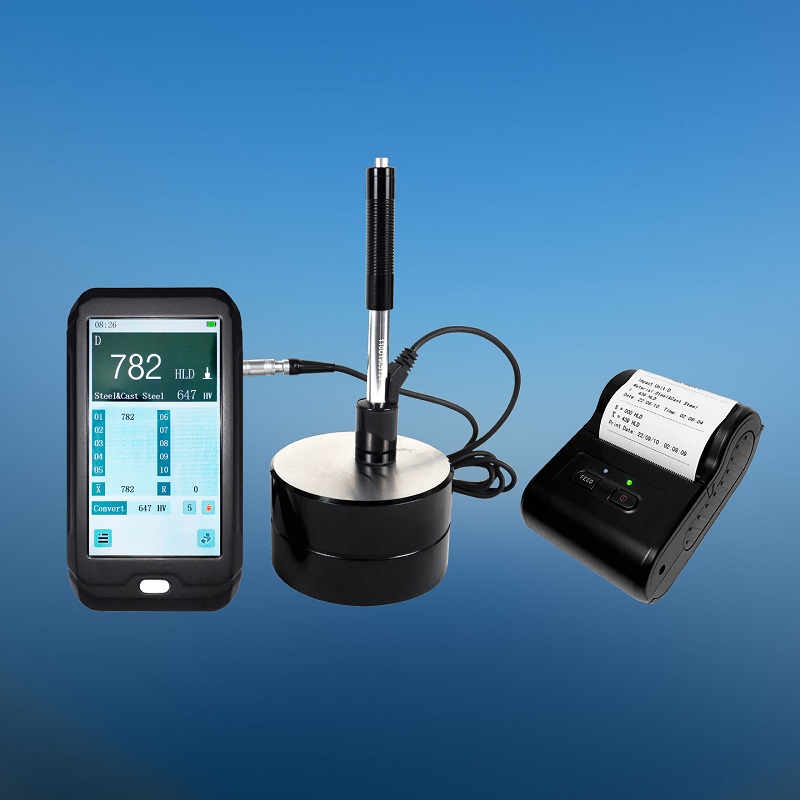

MODEL HLN200 MULTIFUNCTIONAL LEEB HARDNESS TESTER

Feature & Use

• Small volume, convenient for carrying, easy operation

• The measured Leeb hardness value can be automatically converted into Brinell, Rockwell, Vickers and Shore hardness, etc.

• Different impacting devices can be automatically recognized (D, DC, DL, C, D+15, G)

• Measurement data and testing direction automatic compensation

• 2000 Data storage, USB data output

• Lithium battery charging

• Mini wireless printer

• Precision conforms to GB/T 17394, GB/T 1172, ASTM A956, DIN 50156

    It’s suitable to determine the Leeb hardness of various ferrous and non-ferrous metals precisely, such as steel, cast steel, alloy too steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, brass-zinc alloy, copper-tin alloy, pure copper, and forged steel etc.

Specifications

Measuring range: 170~960 HLD

Measuring accuracy: ±6 HLD

Hardness conversion: HL, HRC, HRB, HB, HV, HSD, MPa

Impact device: D type (optional DC, DL, C, D+15, G)

Display: Large 5” color capacitive touch screen (resolution 854*400)

Data storage: 2000 storable data

Testing direction: Arbitrary 360°

Printer: Mini wireless printer

Data output: USB

Power supply: 1400mAh Lithium battery

Working environment: Temperature: -10 °C ~+40 °C, Relative humidity: 20%~85%

Storage environment: Temperature: -30 °C ~+80 °C, Relative humidity: 5%~95%

Dimensions: 151 x 85 x 27mm

Weight: 255g (main machine)

Standard accessories

Main machine: 1 set

D type impact device: 1 pc.

Small supporting ring: 1 pc.

Leeb Standardized hardness block: 1 pc.

Mini printer: 1 pc.

USB cable: 1 pc.

Charger: 1 pc.

Nylon brush: 1 pc.

Suitcase: 1 pc.
