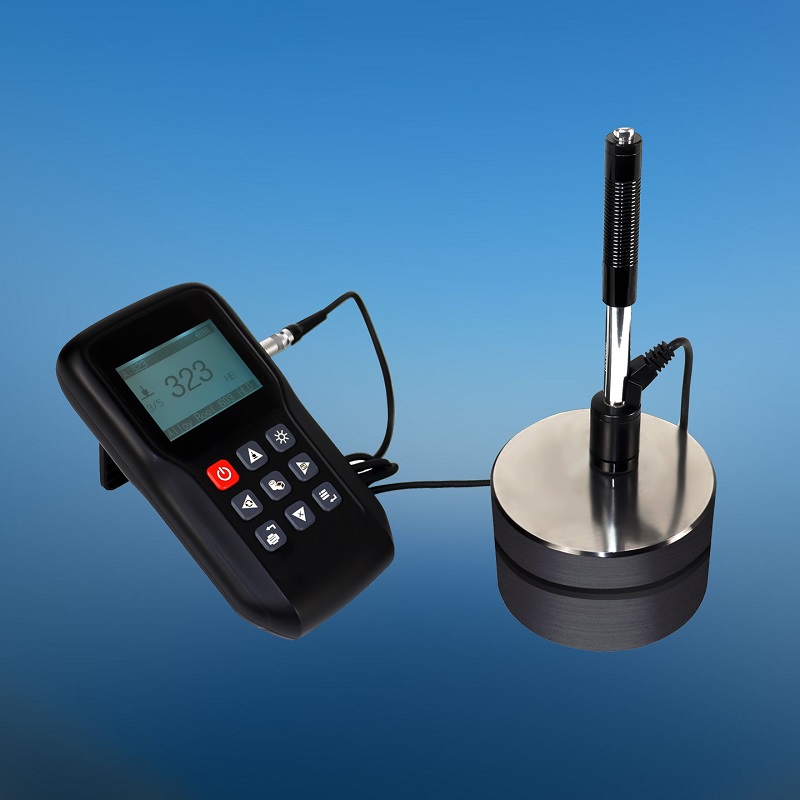

MODEL HLN100 MULTIFUNCTIONAL LEEB HARDNESS TESTER

Feature & Use

• Small volume, convenient for carrying, easy operation

• The measured Leeb hardness value can be automatically converted into Brinell, Rockwell, Vickers and Shore hardness, etc.

• Different impacting devices can be automatically recognized (D, DC, DL, C, D+15, G)

• Measurement data and testing direction automatic compensation

• 1000 Data storage, USB data output

• AAA battery (3 pcs.) as power supply, low power consumption

• Precision conforms to GB/T 17394, GB/T 1172, ASTM A956, DIN 50156

    It’s suitable to determine the Leeb hardness of various ferrous and non-ferrous metals precisely, such as steel, cast steel, alloy too steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, brass-zinc alloy, copper-tin alloy, pure copper, and forged steel etc.

Specifications

Measuring range: 170~960 HLD

Measuring accuracy: ±6 HLD

Hardness conversion: HL, HRC, HRB, HB, HV, HSD, MPa

Impact device: D type (optional DC, DL, C, D+15, G)

Display: 160*128 pixel dot matrix LCD with backlight

Data storage: 1000 storable data

Testing direction: Arbitrary 360°

Data output: USB

Power supply: 4.5V (AAA battery 3 pcs.)

Working environment: Temperature: -10 °C ~+40 °C, Relative humidity: 20%~85%

Storage environment: Temperature: -30 °C ~+80 °C, Relative humidity: 5%~95%

Dimensions: 154 x 82 x 26mm

Weight: 230g

Standard accessories

Main machine: 1 set

D type impact device: 1 pc.

Small supporting ring: 1 pc.

Leeb Standardized hardness block: 1 pc.

USB cable: 1 pc.

Nylon brush: 1 pc.

Suitcase: 1 pc.
