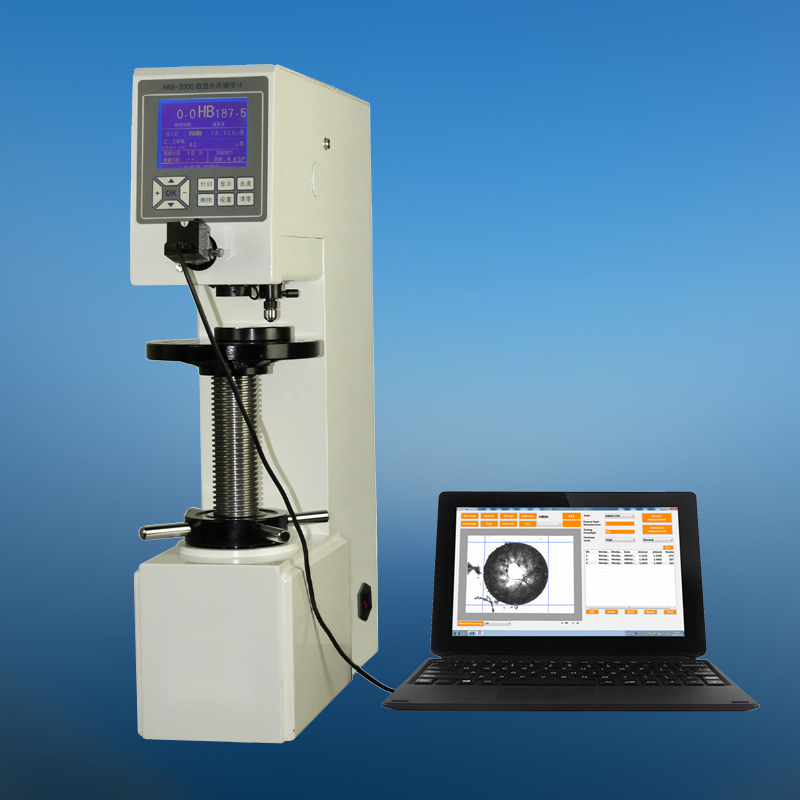

MODEL HBS-MA AUTOMATIC BRINELL HARDNESS MEASURING SYSTEM

Features

• The measurement system can be integrated with the variable Brinell hardness testers

• Suitable to a variety of loads on the Brinell hardness tester

• Camera: 1.3 megapixel, clear indentation image

• Manual / automatic measurement of the indentation size

• Calibration by micrometer or indentation size of standard hardness block

• The hardness converted to other hardness according to the ASTM

• The hardness value of statistics and generation the alarm when the hardness value is unmoral

• Can be used with laptop or desktop computers

• Simple interface, simple operation, easy to install and use, no need training

• The test report can be customized and automatically generated, including sample information, the hardness data, statistics, indentation picture

• The test data can be kept permanently, easy for historical inquiry.


Standard Configuration:

CCD Camera & Adapter: 1,300,000 pixels: 1 pc.

Connecting link: 1 pc.

Dongle: 1 pc.

USB containing the software and manuals: 1 pc.

Optional Accessories

Lenovo Computer 1pc.
