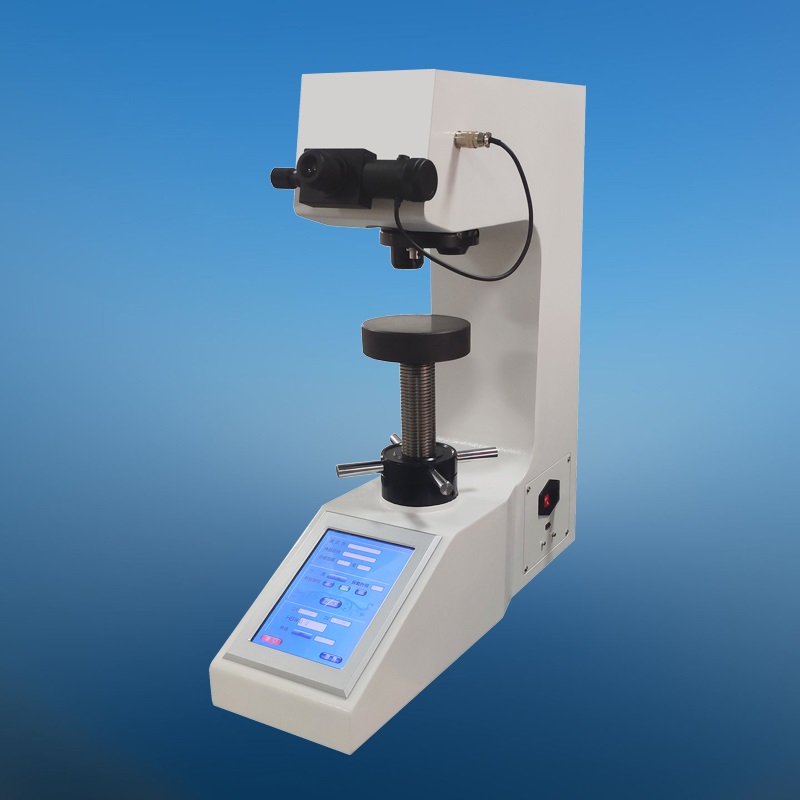

HBS-62.5TZ AUTO TURRET
TOUCH SCREEN DIGITAL DISPLAY LOW
LOAD BRINELL HARDNESS TESTER
Main Features:
-
Touch-screen interface, easy operation, multiple
languages.
-
Boot without weights and no installation.
-
Automatic loading, closed-loop control.
-
Tester Force value: 1-62.5 kg, a total of 10
stalls force.
-
Exterior lighting, to ensure the focus is sharp,
accurate measurement (such as using the traditional internal lighting, due
to inability to determine the position of the focal plane, resulting
indentation size can not be measured accurately, can not be identified
through a third party).
-
Automatic loading, unloading.
-
Automatic turret, switching between indenter and
objective test point automatic positioning accuracy
-
Using 5X, 10X dual-lens, hardness values are
automatically calculated and digital display, automatic storage.
-
The use of 5X, 10X dual-lens, hardness values
were corrected by software errors can be automatically entered.
-
Chinese enter and save the detailed information
of samples and tests.
-
U disk for saving data to EXCEL format for easy
editing and processing.
-
Using a modular design for easy maintenance.
Application areas:
Metallurgy ,metrology, Building materials,
research institutes ,hardening shops, stainless steel, automotive, railway,
energy, steel, aviation , roller plants, tube rolling mills, foundries,

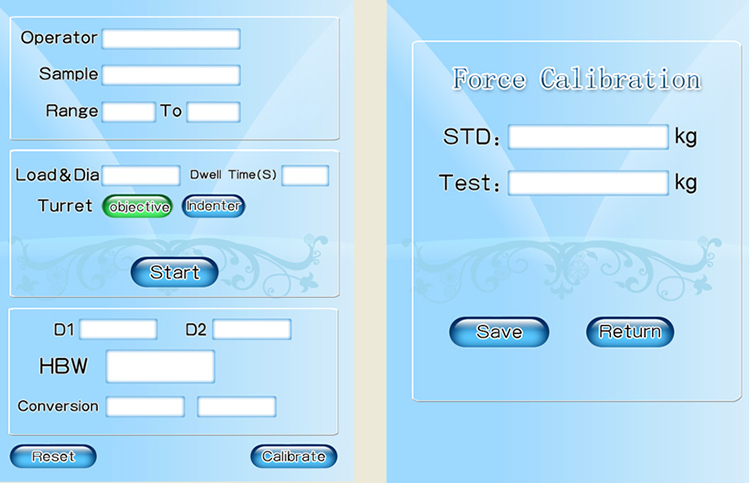

Operation interface:
Main interface Magnification and Hardness automatic
correction
Technical parameters:
|
Test Force (Kg) |
1, 2.5, 5, 6.25, 10, 15.625, 25, 30,
31.25, 62.5 Kg
Total 10 types |
|
Ball Diameter (mm) |
1mm, 2.5mm, 5mm |
|
Objective, indenter switching |
Automatic |
|
Test force |
Automatic unloading test force |
|
Test force dwell time |
0 ~ 99S (one unit per second) |
|
Objective magnification |
5X, 10X |
|
Illumination |
Exterior lighting, each lens comes with
a light source |
|
Eyepiece magnification |
10X (automatic digital encoder)
|
|
Minimum test unit |
0.25μm |
|
Data correction |
Each lens, automatic correction
respectively |
|
Hardness test range |
4-650HBW |
|
Maximum specimen height |
180mm |
|
Indenter wall distance |
160mm |
|
Data output |
U disk |
|
Power supply |
AC 220V/110V, 50/60Hz |
|
Dimensions |
720*190*650mm |
|
Weight |
50Kg |
Standard Accessories:
|
Item |
Quantity |
Item |
Quantity |
|
Digital measuring eyepiece |
1 |
Brinell Hardness block |
2 pcs. |
|
Power cord |
1 |
Large, medium,
V-type testing bench |
1 pc. for each |
|
USB flash disk |
1 |
Fuses |
2 pcs. |
|
Manufacturer certificate |
1 |
Operation Instruction |
1 |
|
|
