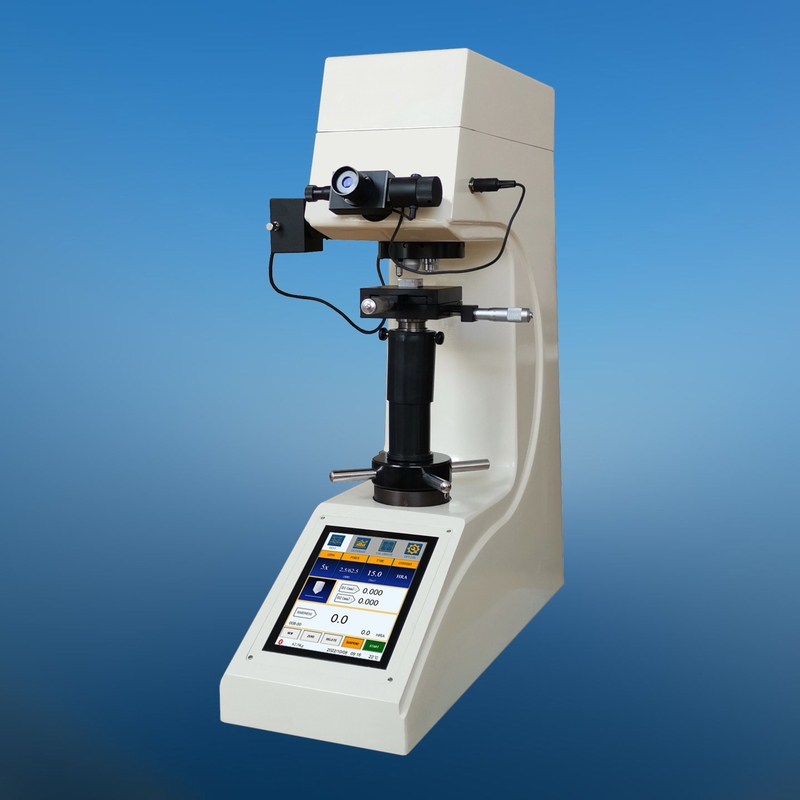

MODEL HBS-62.5TAE AUTO TURRET
TOUCH SCREEN DIGITAL DISPLAY LOW
LOAD BRINELL HARDNESS TESTER
Feature & Use
-
Automatic turret shifting between indenter and
lens.
-
Electric loading without weights, closed loop
control.
-
Automatic process of loading, dwelling and
unloading of test force, no human error.
-
Large 8” touch screen, direct visual display and
interactive operating interface.
-
High speed ARM processor, fast operation speed
and extensive database storage.
-
High quality integral casting cast iron machine
body with automotive paint treatment process, the appearance is smooth and
beautiful.
-
Built-in hardness conversion scales, which can
realize full hardness scale conversion.
-
The maximum and minimum hardness values can be
set, when the test value exceeds the set range, an alarm sound will be
issued.
-
Automatic hardness value correction, the
hardness value can be directly corrected within a certain range.
-
With the database function, the test data can be
saved automatically in groups, each group can save 10 data, totally can save
more than 2000 data.
-
With the hardness value curve display function,
intuitively display the changes of hardness value.
-
Equipped with wireless blue-tooth printer, the
data can be output through RS232 or USB interface.
-
CCD image processing system or video measuring
apparatus is optional.
-
Precision conforms to GB/T 231.2, ISO 6506-2 and
ASTM E10.
It’s
suitable to determine the Brinell hardness of unquenched steel, cast iron,
non-ferrous metals and soft bearing alloys, etc.
Main interface
Specifications
Measuring range: 5-650HBW
Test force: 1, 2.5, 5, 6.25, 10, 15.625, 30, 31.25,
62.5kgf
(9.807, 24.52, 49.03, 61.29, 98.07, 153.2, 294.2,
31.125, 612.9N)
Hardness resolution: 0.1 HBW
Eyepiece magnification: 10X
Objective lens magnification: 5X, 10X
Total magnification: 50X, 100X
Max. height of test piece: 200mm
Depth of throat: 130mm
Dwelling time: 1~99s
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 600 x 330 x 700mm
Weight: approx. 75kg
Standard accessories
Coordinate X-Y stage: 1 pc.
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Tungsten carbide ball penetrator: Φ1, Φ2.5mm, 1 pc.
for each
Brinell standardized block: 2 pcs.
Bluetooth printer: 1 pc.
|
|
