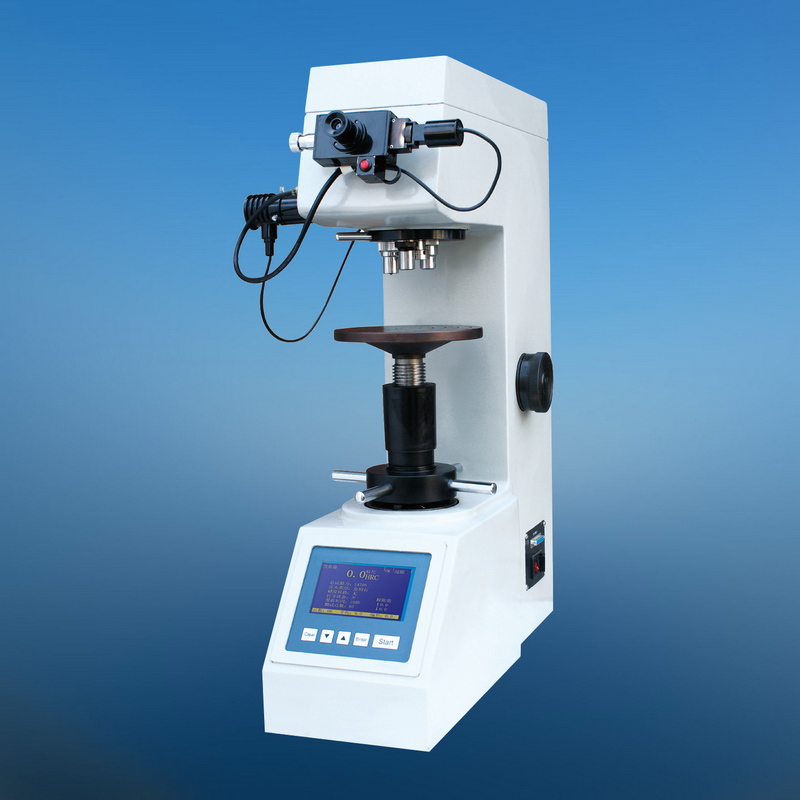

MODEL HBS-62.5

DIGITAL DISPLAY LOW LOAD BRINELL HARDNESS TESTER

Feature & Use

• Automatic testing process, no human operating error

• Large LCD screen, menu operating, complete function with data processing, hardness value conversion and so on

• Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

        It can be used to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc. It is especially suitable to determine the Brinell hardness of soft metal materials and small parts.

Specifications

Measuring range: 4-650HBW

Test force: 9.807, 49.03, 98.07, 153.2, 294.2, 612.9N

                 (1, 5, 10, 15.625, 30, 62.5kgf)

Max. height of test piece: 180mm

Depth of throat: 125mm

Magnifications of measuring system: 125X, 50X

Min. scale value of the optical micrometer: 0.5μm

Power supply: 220/110V AC, 50 or 60Hz

Dimensions: 580 x 260 x 730mm

Weight: Approx. 90kg

Standard accessories:

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Tungsten carbide ball penetrator: Φ1, Φ2.5mm, 1 pc. each

Brinell standardized block: 3 pcs.

Printer: 1 pc.
