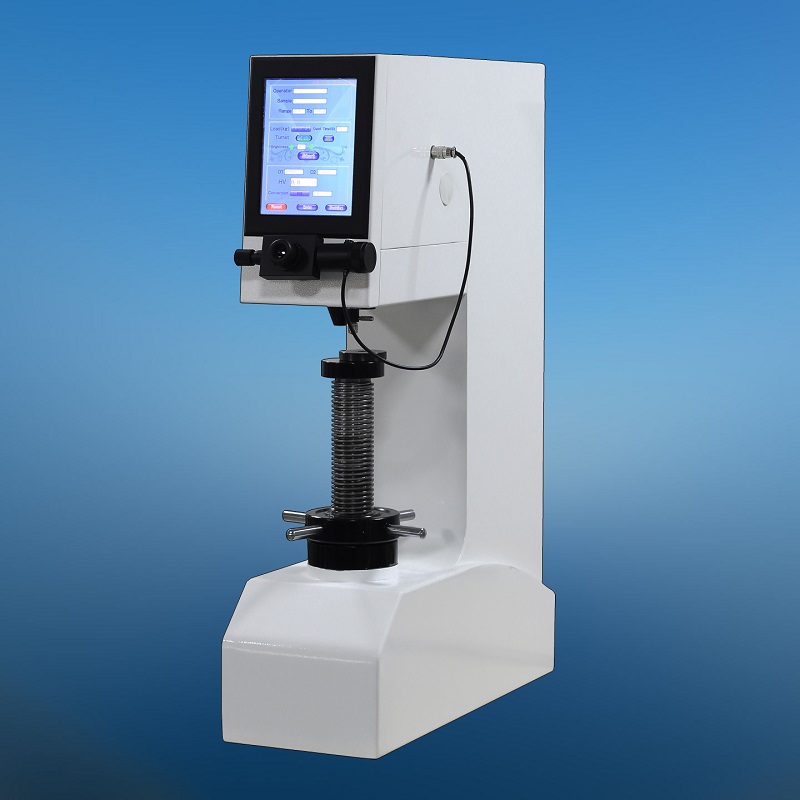

MODEL HBS-3000TZ
AUTO TURRET TOUCH SCREEN DIGITAL
DISPLAY BRINELL HARDNESS TESTER
Features:
-
Automatic turret, 8” large touch screen
interface.
-
12 kinds of measurement scales (or customized)
-
Automatic electric loading with high accuracy
sensor, closed-loop control system, automatic compensation for each shift
-
Eyepiece structure with digital encoder, measure
D1, D2 value, LCD displays hardness value and D1, D2 value directly
-
Hardness value can be converted into other types
of hardness scales
-
Load can be automatically corrected, accuracy
raise a number of levels
-
Hardness value automatically corrected according
to different hardness block or length scale
-
220mm big space for sample
-
No need to install the weight, no need to
regulate
-
All data can be saved in EXCEL format through
USB flash disk, it is easy to edit and process, or choose built-in printer.
RS232 is optional
-
Save more samples and test information
-
Password protection for setting
-
Modular design, simple maintenance
It's
suitable to determine the Brinell hardness of unquenched steel, cast iron,
non-ferrous metals and soft bearing alloys, etc., and widely used for the fields
of metallurgy, metrology, building materials, research institutes, hardening
shops, stainless steel, automobile, railway, aviation, tube rolling mills, found
and so on.
Specifications:
|
Brinell scale |
HBW2.5/62.5,
HBW2.5/187.5, HBW5/62.5, HBW5/125,
HBW5/250, HBW5/750, HBW10/100,
HBW10/1500,
HBW10/1000, HBW10/250, HBW10/500, HBW10/3000 |
|
Test force Kgf (N) |
62.5kgf (612.9N), 100kgf (980.7N),
125kgf (1226N),
187.5kgf (1839N), 250kgf (2452N), 500kgf (4903N),
750kgf (7355N), 1000kgf (9807N), 1500kgf (14710N),
3000kgf (29420N) |
|
Microscope magnification |
20X (option: 10X, 15X，30X) |
|
Min. measuring unit |
0.625µm ( option:0.3125µm) |
|
Dwell time |
1～99S |
|
Hardness measuring range |
8~650HBW |
|
Objective, indenter exchange |
Automatic |
|
Data output |
LCD display, saved in USB flash disk |
|
Executive Standard |
BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
|
Max Height of Specimen |
220mm |
|
Distance of Indenter to outer wall |
155mm |
|
Power supply |
220V AC or 110V AC, 50 or 60Hz |
|
Overall Dimension |
550*210*780mm |
|
Net weight |
About 110kg |
Operation interface:
Main interface
12 kinds of measurement scales
Magnification and Hardness automatic correction
Load automatic correction
Standard accessories
|
No. |
Name (specification) |
Quantity |
|
1 |
20X Reading
microscope |
1 |
|
2 |
φ2.5mm Hard alloy
ball indenter |
1 |
|
3 |
φ5mm Hard alloy ball indenter |
1 |
|
4 |
φ10mm Hard alloy ball indenter |
1 |
|
5 |
Small plane testing table |
1 |
|
6 |
Big plane testing table |
1 |
|
7 |
V-shaped testing table |
1 |
|
8 |
Standard hardness block HBW/3000/10
(150～250) |
1 |
|
9 |
Standard hardness block HBW/1000/10
(75～125) |
1 |
|
10 |
Standard hardness block HBW/187.5/2.5
(150～250) |
1 |
|
11 |
Spare fuse (2A) |
2 |
|
12 |
Power cord |
1 |
|
13 |
Dust-proof plastic bag |
1 |
|
14 |
Certificate |
1 |
|
15 |
Usage instruction manual |
1 |
|
16 |
U disk, touch pen |
Each 1 |
|
|
