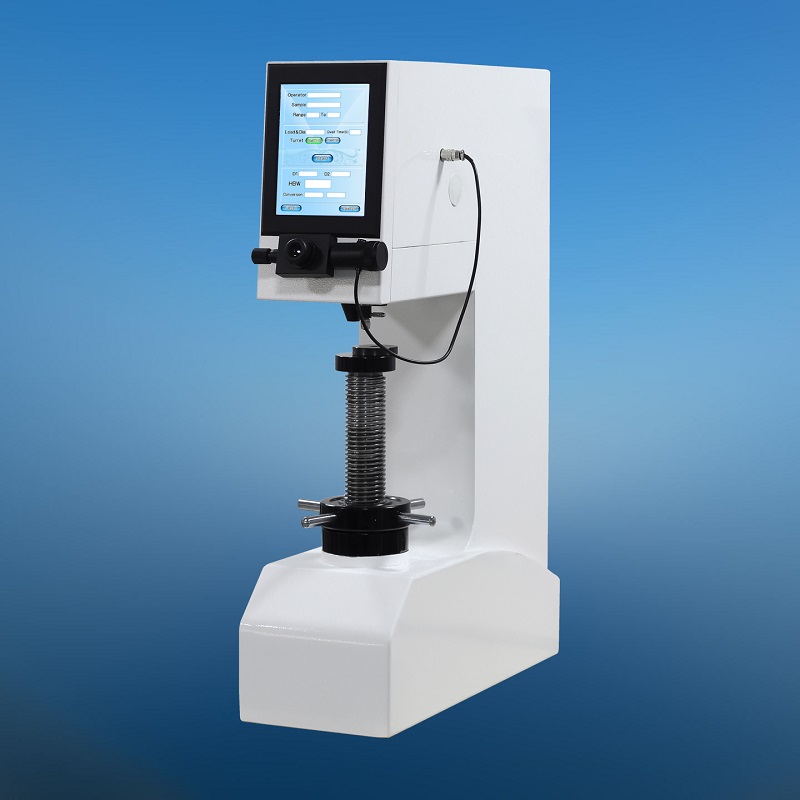

MODEL HBS-3000BT
TOUCH SCREEN DIGITAL DISPLAY
BRINELL HARDNESS TESTER
Features:
-
Manual turret, 8” large touch screen interface.
-
12 kinds of measurement scales (or customized)
-
Automatic electric loading without weights, high
accuracy sensor, closed-loop control system, automatic compensation for each
shift
-
Eyepiece structure with digital encoder, measure
D1, D2 value, LCD displays hardness value and D1, D2 value directly
-
Hardness value can be converted into other types
of hardness scales
-
Hardness value can be calibrated according to
hardness block or length scale
-
Load can be automatically corrected, accuracy
raise a number of levels
-
No need to install the weight, no need to
regulate
-
All data can be saved in EXCEL format through
USB flash disk, it is easy to edit and process, or choose built-in printer.
RS232 is optional
-
Save more samples and test information
-
Password protection for setting
-
Modular design, simple maintenance
It's
suitable to determine the Brinell hardness of unquenched steel, cast iron,
non-ferrous metals and soft bearing alloys, etc., and widely used for the fields
of metallurgy, metrology, building materials, research institutes, hardening
shops, stainless steel, automobile, railway, aviation, tube rolling mills, found
and so on.
Operation interface:
Main interface
12 kinds of measurement scales
Magnification and Hardness automatic correction
Load automatic correction
Specifications:
|
Brinell scale |
HBW2.5/62.5,
HBW2.5/187.5, HBW5/62.5, HBW5/125,
HBW5/250, HBW5/750, HBW10/100,
HBW10/1500,
HBW10/1000, HBW10/250, HBW10/500, HBW10/3000 |
|
Test force Kgf (N) |
62.5kgf (612.9N), 100kgf (980.7N),
125kgf (1226N),
187.5kgf (1839N), 250kgf (2452N), 500kgf (4903N),
750kgf (7355N), 1000kgf (9807N), 1500kgf (14710N),
3000kgf (29420N) |
|
Executive Standard |
BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
|
Test force accuracy |
62.5～250kgf≤1% 500～3000kgf≤0.5% |
|
Hardness measuring range |
8~650HBW |
|
Measuring device resolution |
0.1µm |
|
Hardness value resolution |
0.1HBW |
|
Dwell time |
1～99S |
|
Microscope magnification |
20X (option: 10X, 15X，30X) |
|
Objective, indenter exchange |
Manual |
|
Max Height of Specimen |
200mm |
|
Distance of Indenter
to outer wall |
155mm |
|
Data output |
LCD display, saved in EXCEL format on
USB flash disk, or choose built-in printer |
|
Power supply |
220V AC or 110V AC, 50 or 60Hz |
|
Overall Dimensions |
550*210*800mm |
|
Net weight |
About 110kg |
Standard accessories
|
No. |
Name (specification) |
Quantity |
|
1 |
20X Reading
microscope |
1 |
|
2 |
φ2.5mm Hard alloy
ball indenter |
1 |
|
3 |
φ5mm Hard alloy ball indenter |
1 |
|
4 |
φ10mm Hard alloy ball indenter |
1 |
|
5 |
Medium plane testing table |
1 |
|
6 |
Big plane testing table |
1 |
|
7 |
V-shaped testing table |
1 |
|
8 |
Standard hardness block HBW/3000/10
(150～250) |
1 |
|
9 |
Standard hardness block HBW/1000/10
(75～125) |
1 |
|
10 |
Standard hardness block HBW/187.5/2.5
(150～250) |
1 |
|
11 |
Spare fuse (2A) |
2 |
|
12 |
Power cord |
1 |
|
13 |
Dust-proof plastic bag |
1 |
|
14 |
Certificate |
1 |
|
15 |
Usage instruction manual |
1 |
|
16 |
U disk, touch pen |
Each 1 |
|
|
