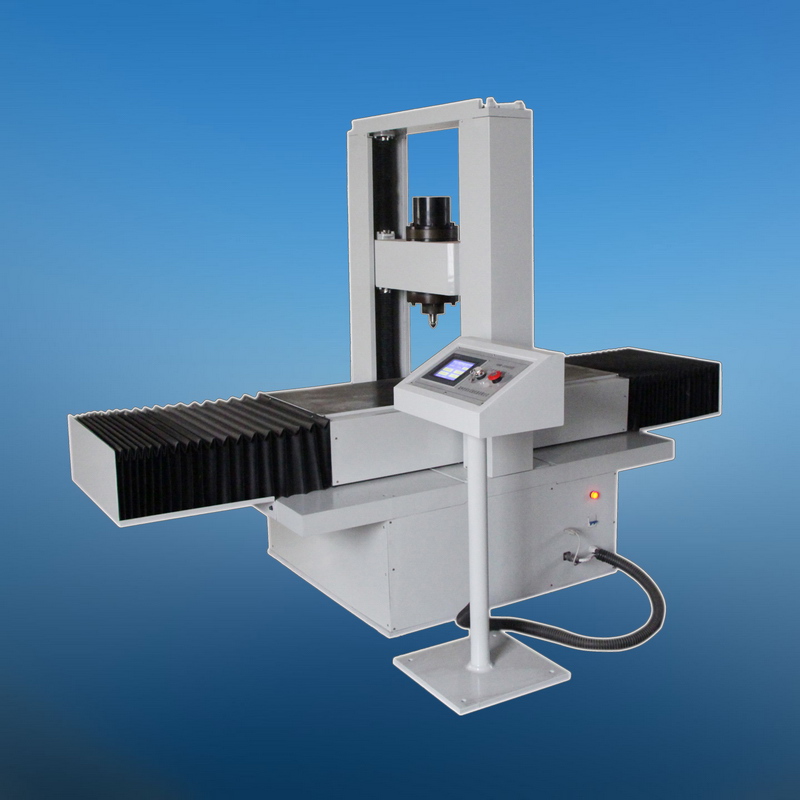

MODEL HBM-3000E
SMALL SIZE GATE TYPE ELECTRONIC BRINELL HARDNESS TESTER
Feature & Use
-
The
machine body and worktable adopt precision casting technology, which is
firm, rigid, accurate, reliable and durable.
-
Gate
type frame, moveable work table.
-
The
loading device has built-in precision pressure sensor, the test force value
is accurate, stable and reliable, and has the function of automatic test
force compensation.
-
Adopt the self-developed gate-type Brinell hardness tester special numerical
controlling system, fast running speed, full closed loop from fast to slow
gradient applied test force, ensure the test force exerted smooth and no
impact.
-
Test
force, holding time, feeding speed and testing speed can be controlled
manually.
-
Stepping motor, high precision ball screw and linear guide rail, accurate
positioning, easy maintenance.
-
Hardness unit conversion, save test data in group and automatically generate
hardness test report and statement. The test data is stored in the offline
database, which is convenient to check at any time.
-
Precisio conforms to GB/T231.2, ISO 6506-2 and ASTM E10.
It’s suitable to determine the Brinell hardness of unquenched steel, cast iron,
non-ferrous metals and soft bearing alloys, etc.
Specifications
Measuring range: 32-650HBW
Test
force: 187.5, 250, 500, 750, 1000, 3000kgf
(1838.8,
2415.8, 4903.5, 7355.3, 9807, 29421N) customizable
Max.
height of test piece: 660mm (customizable)
Lateral
moving distance of hardness testing mechanism: 200mm
Work
table size: 800 x 400mm (customizable)
Central
distance between two columns: 640mm (customizable)
Dwelling
time: 1~99s
Power
supply: 220V AC, 50Hz
Dimensions: 1250 x 1060 x 1770mm
Weight:
approx. 1000kg
Standard accessories
Main machine: 1 set
Control cabinet: 1 set
Tungsten carbide ball penetrator: Φ5mm, Φ10mm, 2 pcs. for each
Tungsten carbide ball: Φ5, Φ10mm, 6 pcs. for each
Brinell standardized block: 2 pcs.
20X Readout microscope: 1 pc.
|
|
