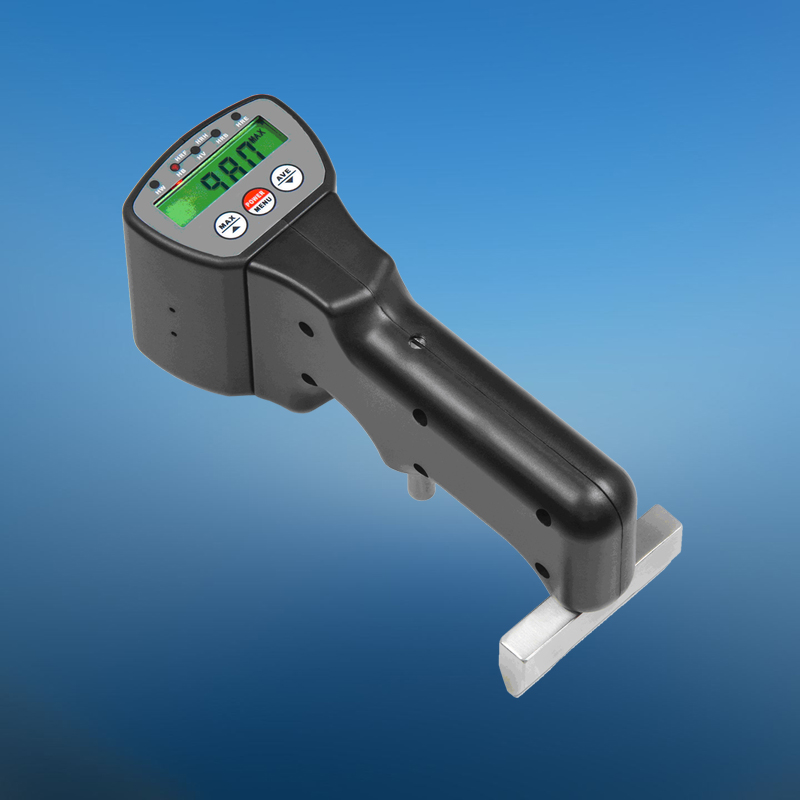

MODEL HBA-934-1B DIGITAL DISPLAY BARCOL HARDNESS TESTER
It is
mainly used in aluminum processing industry, testing pure aluminum, soft
aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings,
aluminum forgings and aluminum alloy products. Also, it can be used for glass
steel industry.
Features
-
A digital
indentation hardness tester, it is the latest design and development of our
company.
-
It is
characterized in that provided with a balance positioning, a digital display
of hardness value, and a non disassembly calibration and adjusting.
-
It is with good
stability, convenient calibration, and high accuracy of detection.
-
Small in size,
portable. Single hand operation, easy to use. Can be used in any occasion as
long as the hand can reach.
-
Wide test
range, can test from very soft pure aluminum to a particularly hard aluminum
alloy, effective test range equivalent to the Brinell Hardness of 25~150HB.
-
No need to be
supported. Just test on one side of the sample with the hardness tester, no
need to be supported. It is suitable for the test of large and extra thick
workpiece.
-
With the
maximum hold function, recording the maximum hardness value during
measurements.
-
Can be used for
not only measuring Barcol Hardness, but also converting to Brinell Hardness
(HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB /
HRE / HRF / HRH).
-
With the
function of calculating the average value, can calculate the average value
of the 29 sets of data at most.
-
Provide
Bluetooth data output choice.
Specifications:
|
Range |
0~100Hba, Amount to 25~135HBW |
|
Resolution |
0.1HBa |
|
Indication Error |
81~88HBa ±1HBa |
|
42~48HBa ±2Hba |
|
Repeatability Error |
81~88HBa ±1.5HBa |
|
42~48HBa ±2.5HBa |
|
Brinell Hardness |
√ |
|
Vickers Hardness |
√ |
|
Webster Hardness |
√ |
|
Rockwell hardness |
√ |
|
Maximum Hold |
√ |
|
Average Calculation |
√ |
|
Operating Condition |
Temperature: 0~50°C |
|
Humidity: <80%RH |
|
Power Supply |
2 x 1.5 V AAA (UM-4) Battery |
|
Weight |
390g (Not Including Batteries) |
Standard Accessories:
Main
Unit
2 Pins
2
Standard Blocks
Pin
Length Calibration Block
Screw
Driver
Spanner
Carrying Case
Operation Manual
Optional Accessories:
Bluetooth data out put with software
|
|
