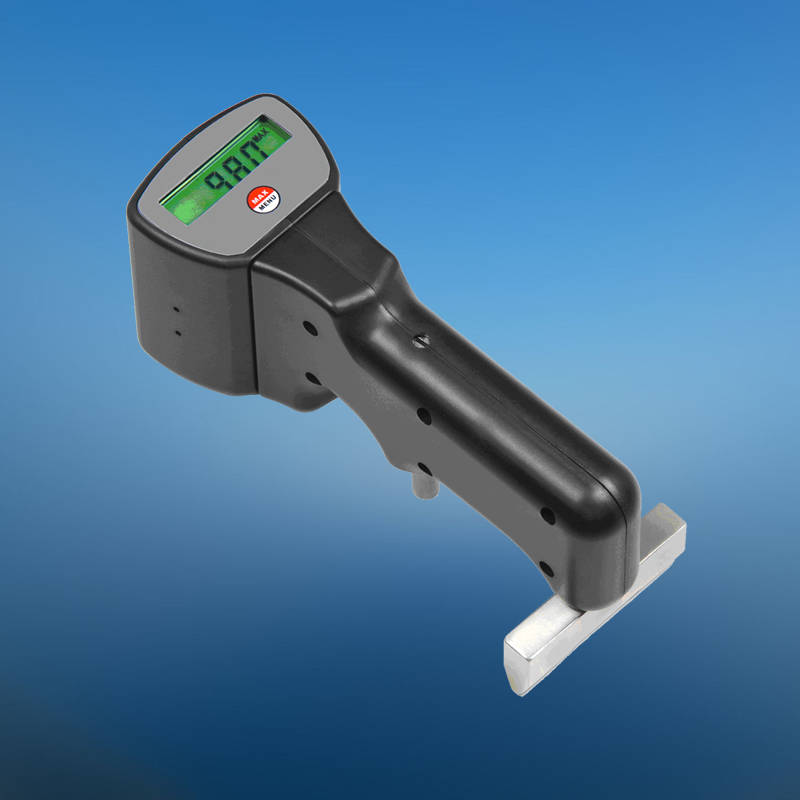

MODEL HBA-934-1A DIGITAL DISPLAY BARCOL HARDNESS TESTER
It is mainly used in aluminum processing industry, testing pure aluminum, soft
aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings,
aluminum forgings and aluminum alloy products. Also, it can be used for glass
steel industry.
Features
-
A
digital indentation hardness tester, is the latest design and development of
our company.
-
It
is characterized in that provided with a balance positioning, a digital
display of hardness value, and a non disassembly calibration and adjusting.
-
It
is with good stability, convenient calibration, and high accuracy of
detection.
-
Small in size, portable. Single hand operation, easy to use. Can be used in
any occasion as long as the hand can reach.
-
Wide
testing range, can test from very soft pure aluminum to a particularly hard
aluminum alloy. effective test range equivalent to the Brinell Hardness of
25~150HB.
-
No
need to be supported. Just test on one side of the sample with the hardness
tester, no need to be supported. It is suitable for the test of large and
extra thick work piece.
-
With
the maximum hold function, recording the maximum hardness value during
measurements.
-
Can
be used for measuring Barcol Hardness, other hardness value can be
calculated out by the experimental curve. Such as Brinell Hardness (HB),
Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB / HRE /
HRF / HRH).
-
Provide Bluetooth data output choice.
Specifications:
|
Range |
0~100Hba, Amount to 25~135HBW |
|
Resolution |
0.1HBa |
|
Indication Error |
81~88HBa ±1HBa |
|
42~48HBa ±2Hba |
|
Repeatability Error |
81~88HBa ±1.5HBa |
|
42~48HBa ±2.5HBa |
|
Maximum Hold |
√ |
|
Operating Condition |
Temperature: 0~50°C |
|
Humidity: <80%RH |
|
Power Supply |
2 x 1.5 V AAA (UM-4) Battery |
|
Weight |
390g (Not Including Batteries) |
Standard Accessories:
Main
Unit
2 Pins
2
Standard Blocks
Pin
Length Calibration Block
Screw
Driver
Spanner
Carrying Case
Operation Manual
Optional Accessories:
Bluetooth data out put with software
|
|
