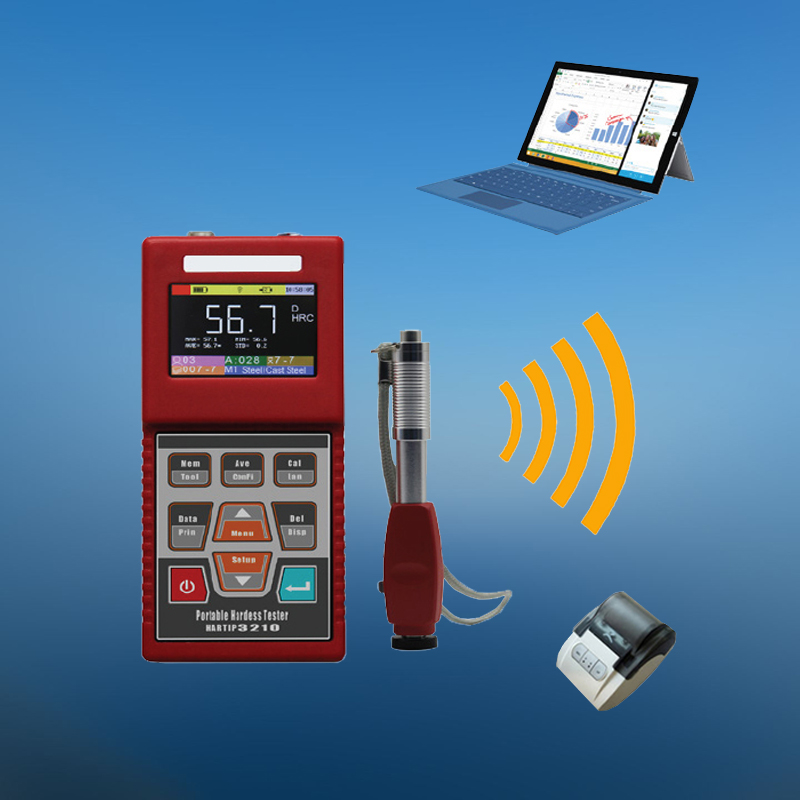

MODEL HARTIP 3210 LEEB HARDNESS TESTER
HARTIP 3210 is a new generation of Leeb hardness tester with more advanced
technology and features. The tester applies our new patent dual-coil sensor
technology which makes the tester more accurate than old previous model. All
impact devices (probes) are no need to setup impact direction. HARTIP 3210 can
work with both analogy impact device and wireless RF probe. The measuring values
can be downloaded to PC and printer by wireless or by cable. The HARTIP 3210
also can be powered by USB power supply without battery via PC cable.
Features
-
Wireless digital / cable analogue compatible
-
No need to set up different impact direction.
-
Higher accuracy with dual-coil technology
-
TFT large color LCD with pixel 320 x 240.
-
Multi color style, suitable for using under sunshine
-
Multi display modes - statistics, bar graph, etc.
-
Multi save mode for data.
-
Multi statistics calculation
-
Print online and screen copy printout
-
Sound reminder, real date and time
-
Recalibration for unified or individual scale
-
Operator, part No., procedure No. record
Main parameters
|
Model |
HARTIP 3210 |
|
Accuracy |
±0.3% @ HL=800, Repeatability: ±2HL
|
|
Principle |
Leeb hardness measurement |
|
Display |
2.8” 320 x 240 TFT color LCD - fittable under
sunshine |
|
Hardness scale |
HL / HRC / HRB / HB / HV / HS / HRA /σb
|
|
Measuring range |
HL170-960 / HRC1.3-78.2 / HRB1.2-139.7 / HB28-1027 /
HV45-1221 / HS4.0-112.1 / HRA1.3-88.5 / σb(rm)118- 3315N/mm2
|
|
Impact device |
r/f wireless probe D / standard cable probe D
DC / D+15 / C / G / E / DL (Optional)
|
|
r/f communication distance |
10m in space |
|
r/f frequency |
2.4GHz |
|
Impact direction |
Universal angle type |
|
Materials and curves |
11 common metal materials, 60 conversion curves
|
|
Memory |
25000 data |
|
Statistics |
Single group analysis -- mean, max., min., extreme
deviation, standard deviation, coefficient of kurtosis, coefficient
of skewness, percent of pass, column diagram, normality distribution
test and uniform distribution test
Double group analysis -- significant difference test
for mean value, standard deviation, percent of pass and distribution
|
|
Re-calibration |
Calibration for unified or individual scale
|
|
Indicator |
Upper limit / Lower limit / low battery / buzzer
warning / date and time |
|
Communication interface |
2.4G wireless / USB / RS232 / Bluetooth (optional)
|
|
Continuous working time |
>40 hours |
|
Power supply |
1.5V AA alkaline battery x 4 / 1.2V nickel-hydrogen
rechargeable battery x 4 / 3.7V Li-ion rechargeable battery x 4 /
USB power supply |
|
Working environment |
-10ºC~+45ºC
|
|
Dimension (mm) |
195 x 84 x 38 |
|
Net weight (g) |
550 |
|
Standards |
Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
|
Standard package
HARTIP 3210 main unit 1
Impact device D (cable or RF) 1
Test block D 1
Small support ring 1
Cleaning brush 1
USB dongle 1
PC software 1
Operation manual 1
Test certificate 1
Carrying case 1
Optional accessories
Cable probe D/DC/D+15/C/G/E/DL
RF Wireless probe D/DC/D+15/C/E/DL
Wireless micro printer
Standard block G
Special support rings
USB charging cable
USB charger
Leather case
|
|
