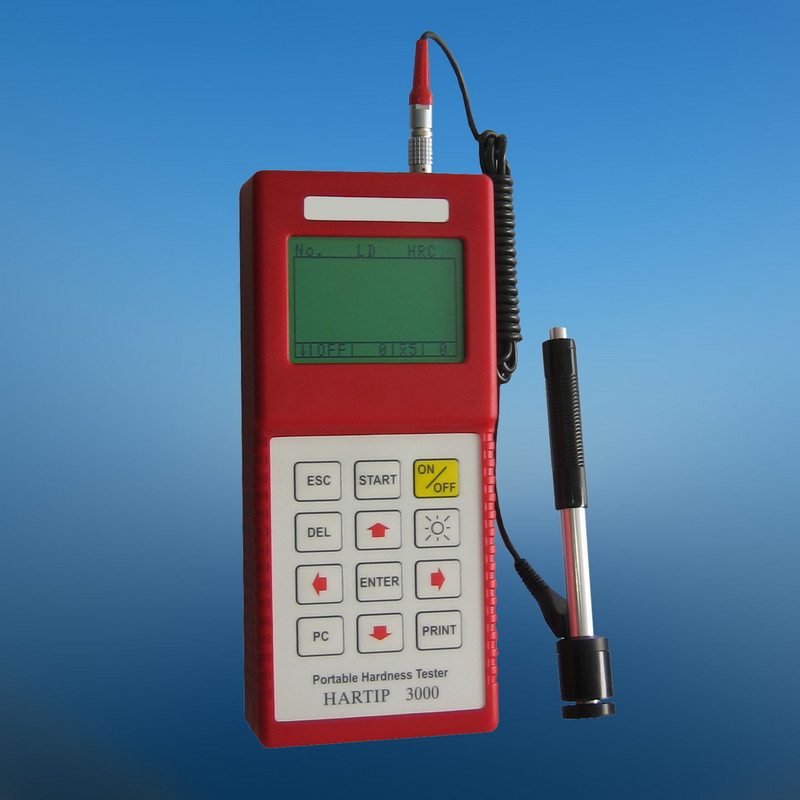

MODEL HARTIP
3000 HARDNESS TESTER
HARTIP 3000 is an advanced hand-held digital metal hardness tester with
characters of high accuracy, wide measuring range and easy operation. It is
suitable for testing the hardness of all metals especially on site for large
structure/assembled components. Which is widely used in the industry of power,
petro chemistry, air space, vehicle, machine and so on.
Measuring
method
The measuring principle of
HARTIP series hardness testers is defined as "the quotient of the impact body's
rebound and impact velocity, multiplied by 1000." An impact body with a Tungsten
Carbide test tip is propelled by spring force against the test surface and then
rebounds back. A permanent magnet is contained within the impact body. When it
passes through the coil on impact device, it induces an electric voltage which
is proportional to the velocity of the impact body.
Features
-
High accuracy
-
Light weight
-
For all metallic materials
-
Wide measuring range:
Rockwell B&C, Brinell, Vickers, Shore and HL
-
Automatic conversion to
Brinell, Rockwell, Vicker and Shore
-
Test in any directions
-
Impact devices: D, DC, DL, C,
D+15, E, G
-
All impact devices
interchangeable
-
Menu operation
-
Large LCD display with
backlight
-
RS232/USB interface to PC and
micro-printer
-
Automatic mean, max., min.
value display
-
Data management software
-
Comply to standard ASTM A956
Main
parameters
|
Model |
HARTIP 3000 |
|
Principle |
Leeb hardness
measurement |
|
Accuracy |
+/-0.5%@HL=800 |
|
Display |
Large graphic LCD
with EL backlight |
|
Hardness scale |
HL/HRC/HRB/HB/HV/HS |
|
Measuring range |
HL200-960 / HRC19-70
/ HRB13-109 / HB20-655 / HV80-1027 / HS31.9-102.8 |
|
Impact device |
D (standard)
DC/DL/C/D+15/E/G (optional) |
|
Materials |
9 common metal
materials |
|
Memory |
960 data in 8 blocks |
|
Statistics function |
Average / Max. / Min.
/ value |
|
Interface |
RS232 to PC /
Micro-printer |
|
Indicator |
Low battery |
|
Power off |
Auto |
|
Power supply |
1.5v AA battery x 4 |
|
Working environment |
-40~+80°C (main unit)
-20~+120°C (impact device) |
|
Standard |
ASTM A956 |
|
Dimension (mm) |
195x84x38 |
|
Net weight |
550g |
|
Material |
HL |
HRC |
HRB |
HB |
HV |
HS |
|
Steel & cast
steel |
174-960 |
19-68 |
38-100 |
80-683 |
80-1027 |
32-102 |
|
Cold work tool
st. |
20-67 |
-- |
-- |
80-900 |
-- |
|
Stainless steel |
20-62 |
46-102 |
85-655 |
85-800 |
-- |
|
Grey cast iron |
-- |
-- |
93-334 |
-- |
-- |
|
Nodular cast iron |
-- |
-- |
130-390 |
-- |
-- |
|
Cast aluminium
alloys |
-- |
-- |
20-160 |
-- |
-- |
|
Copper/Zinc
alloys (brass) |
-- |
13-95 |
40-173 |
-- |
-- |
|
Cu Al/ Cu Sn alloys
(bronze) |
-- |
-- |
60-290 |
-- |
-- |
|
Wraught copper
alloys |
-- |
-- |
45-315 |
-- |
-- |
|
Standard package |
Optional accessories |
|
Hartip3000
main body |
Micro-printer |
|
External
Impact device D |
Impact
body DC, D+15, G, C, E, DL |
|
Test block D |
Data
managing software |
|
Battery 4×1.5V
AA alkaline battery |
A set
or special support rings |
|
Carrying case |
Leather case |
|
Cleaning brush |
Connection cable to PC or Printer |
|
Manual |
|
|
|
