MODEL HARTIP
2200 LEEB HARDNESS TESTER

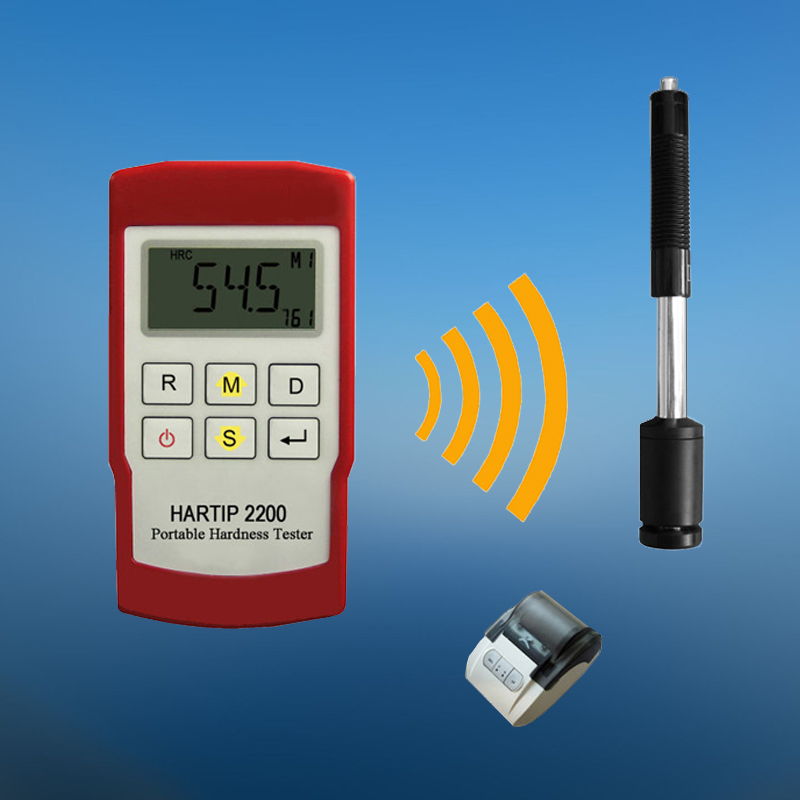

HARTIP2200 hardness tester is an innovation of HARTIP series portable leeb
hardness tester. It works with a wireless RF probe, The RF probe can transfer
measuring hardness value to main unit wirelessly via RF module within the range
of 10 meters. There is a rechargeable Li-ion battery inside RF probe and can be
charged directly by USB port of PC. The main unit with LCD display can be placed
around anywhere. So one person is OK for operation. Besides, the main unit with
magnetic housing can also be attracted upon to the surface of workpiece to avoid
of dropping to damage.
Features
-
R/F wireless probe
-
Universal impact direction
mode, it does not need to set up different impact direction.
-
High accuracy: +/-2HL ( 0.3%@
HL800)
-
Linear accuracy for any
angles
-
Different probe can be
indentified automatically
-
No compensation for impact
direction
-
Dual values (Leeb value and
one conversion value) can be displayed at the same screen
-
Big LCD display with
backlight
-
Ten testing materials
including forged steel
-
It has strength conversion
value
-
It can connect micro-printer
wirelessly
-
300 data for memory
-
Customer re-calibration
allowed
-
Power off automatically
-
More economic and more
convenient o use
Technical
parameters
|
Model |
HARTIP 2200 |
|
Principle |
Leeb hardness
measurement |
|
Accuracy |
±HRC0.2 |
|
Display |
Digital LED with
backlight |
|
Hardness scale |
HL/HRC/HRB/HB/HV/HS/σb |
|
Measuring range |
HL170-960/HRC17-69/HRB13-101.7/HB20-655/HV80-940/HS32-99.5/σb（rm)255-2180N/mm2 |
|
Impact device |
Wireless bluetooth
digital probe D/DC/D+15/C/DL |
|
Working distance |
10m in open area |
|
Impact direction |
any angle |
|
Materials |
Steel/Cast Steel,
Lamellar Iron, Nodular Iron, Cast Aluminum etc. |
|
Memory |
300 data, can be
saved and re-readable |
|
Statistics function |
Automatic calculation |
|
Re-calibration |
Allowed by user |
|
Indicator |
Low battery |
|
Interface |
USB or Bluetooth to
PC |
|
Power on/off |
Auto |
|
Power supply |
Rechargeable Li-ion
battery charged by USB port or charger |
|
Working environment |
-10șC~+40șC |
|
Dimension (mm) |
124*67*30mm |
|
Net weight (g) |
240g |
|
Standards |
Conforming to ASTM
A956, DIN 50156, GB/T 17394-1998 |
|
|
