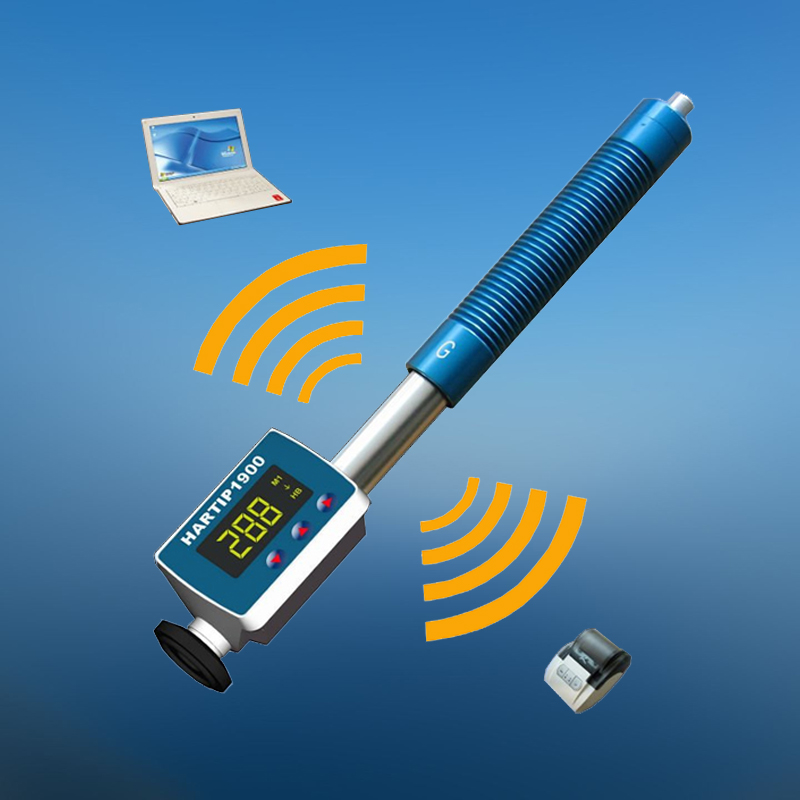

MODEL HARTIP 1900 LEEB HARDNESS TESTER



        HARTIP 1900 hardness tester is a portable integrated Leeb hardness tester that is specially designed to measure hardness of castings in HL (Leeb), HRB (Rockwell B), HB(Brinell). It has more impact energy (90N) and large contact tip (dia.5mm) than normal. Therefore it can make test on machined surface or even roughness surface instead of polished or finished surface. It is widely used for measuring hardness of large castings or raw materials at spot.

        The HARTIP 1900 can make test at any angle without making setup for different impact direction. All readings can be downloaded to computer or printed out to microprinter wirelessly by Bluetooth.



Features

  • Rugged and Integrated design in aluminium housing

  • Universal impact direction

  • Dual hardness scales on display

  • Four viewing orientation

  • Shifting between large view & batch view

  • Statistics value display automatically

  • Upper or lower limit reminder

  • High contrast OLED display

  • Bluetooth interface for wireless transmission

  • LI-ion rechargeable battery

  • Abundant memory



Specifications



Model

HARTIP 1900

Principle

Leeb hardness measurement

Accuracy

±4HLG

Display

High contrast OLED

Hardness scale

HL/HRB/HB

Measuring range

HLG300-750 / HRB47-100 / HB90-650

Impact device

G

Materials

Steel/Cast Steel, Lamellar Iron, Nodular Iron, Cast Aluminum

Memory

360000 data in 400 blocks, can be saved and re-readable

Statistics function

Average / Max. / Min. / S. value

Re-calibration

Allowed by user

Indicator

Low battery

Interface

USB or Bluetooth

Power on/off

Auto

Power supply

Rechargeable Li-ion bat ter y charged by USB port or charger

Working environment

-40șC~+70șC

Dimension (mm)

 250*47*37mm

Net weight (g)

 250g

Standards

Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
