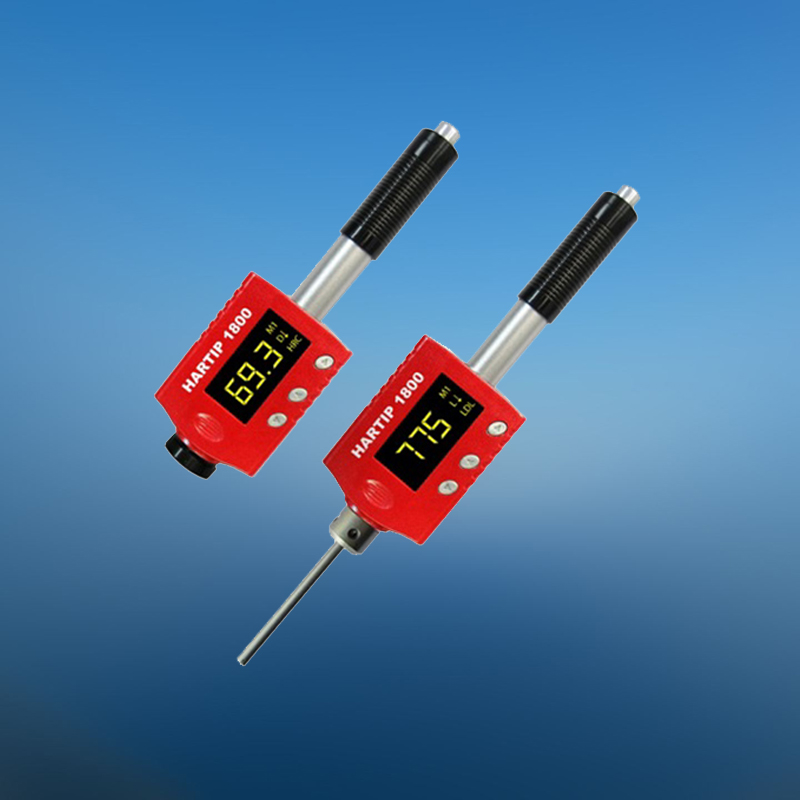

MODEL HARTIP 1800 LEEB HARDNESS TESTER



        HARTIP1800 is an advanced state-of-the-art palm sized metal hardness tester with many new features. It features light weight, easy operation, integrated design, high contrast display, low operating temperature, auto compensating for impact direction and etc. HARTIP 1800 can be widely used for measuring hardness of almost all ferrous and non-ferrous metal materials for scale of Leeb hardness, Rockwell C & B, Brinell, Vickers, Shore and Strength.

        HARTIP 1800 has a memory capacity of 400 blocks and 360,000 data which can be downloaded to computer via USB. The 3.7V Li-ion rechargeable battery inside HARTIP 1800 can be charged via USB from PC or via individual battery charger from mains wall power. With data software for PC, customers can download measuring values from HARTIP 1800 to PC and make process such as save, delete, create testing report and export them to Excel.



Features

  • Palm sized and easy operation

  • High contrast OLED display

  • Wide operating temperature:-40°C~+60°C

  • Auto switch on & off

  • Duplex readings on display: HLD value and correspond scale

  • Large digits and more readings alternatively

  • Four display orientations

  • Vast memory capacity: 360K data can be saved

  • USB/RS232 interface

  • Micro-printer can be used on site

  • Recalibration allowed by user

  • Liner compensate for angle measurement

  • LI-ion rechargeable battery charged by USB port or mains power

  • Statics value calculated automatically



Main parameters



Model

HARTIP 1800

Principle

Leeb hardness measurement

Accuracy

+/-4HL(0.5%@HL=800)

Display

digital with high contrast LED

Display mode

Normal or flip

Hardness scale

HL/HRC/HRB/HB/HV/HS/σb

Measuring range

HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88

Impact device

D (Internal)
D/DL 2-in-1 (Internal, optional)

Materials

9 common metal materials

Memory

360,000 data in 400 blocks

Statistics function

Average / Max. / Min. / value

Recalibration

Allowed by user

Interface

USB for data transferring to PC and charging battery

Indicator

Low battery

Power on/off

Auto

Power supply

3.7v Li-ion rechargeable battery

Working environment

-40~+80°C

Standard

ASTM A956

Dimension (mm)

148x44x22

Net weight

110g
