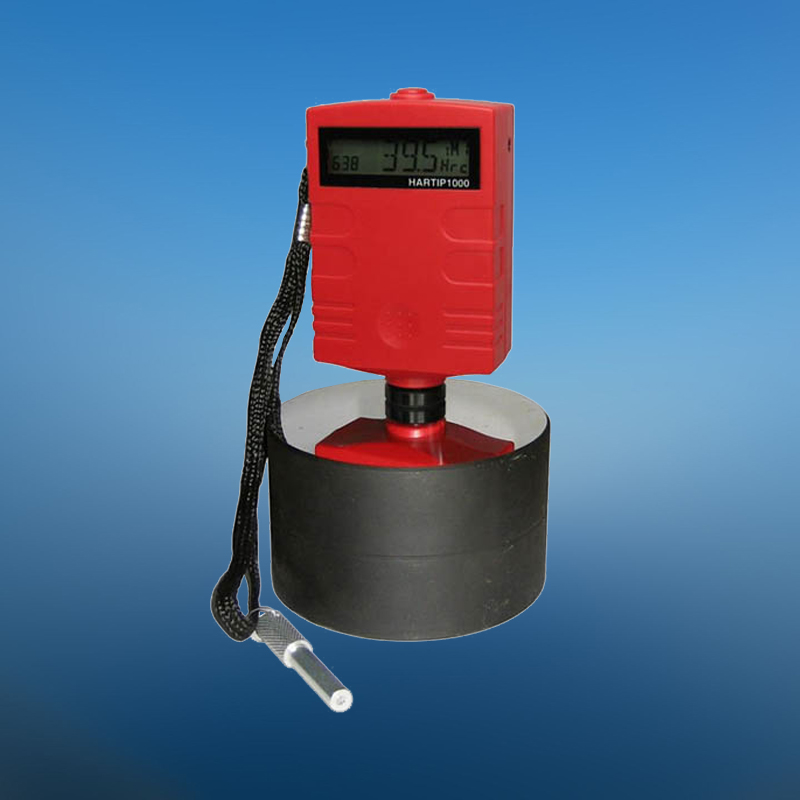

MODEL HARTIP 1000 LEEB HARDNESS TESTER



        HARTIP 1000 is an integrated handheld metal hardness tester that combines impact device (probe) and processor into one unit. The size is much shorter than normal impact device, which lets HARTIP 1000 can meet not only normal measurements, but can take measurements at narrowed space as well. It can be used for industrial of power plant, petrochemical field, vehicle machine, air space, machine and so on.



Features

  • Rugged and modular design

  • Palm sized for narrow space

  • High accuracy

  • Built-in impact device

  • Automatic power on/off



Main parameters



Model

HARTIP 1000

Principle

Leeb hardness measurement

Accuracy

+/-0.6%@HL=800(+/-HRC0.5)

Display

LCD with backlight

Hardness scale

HL/HRC

Measuring range

HL210-890 / HRC20-68

Impact device

D (Internal)

Materials

Steel

Indicator

Low battery

Power off

Auto

Power supply

9v alkaline battery

Working environment

-10~+45°C

Dimension (mm)

116x60x33

Net weight

150g
