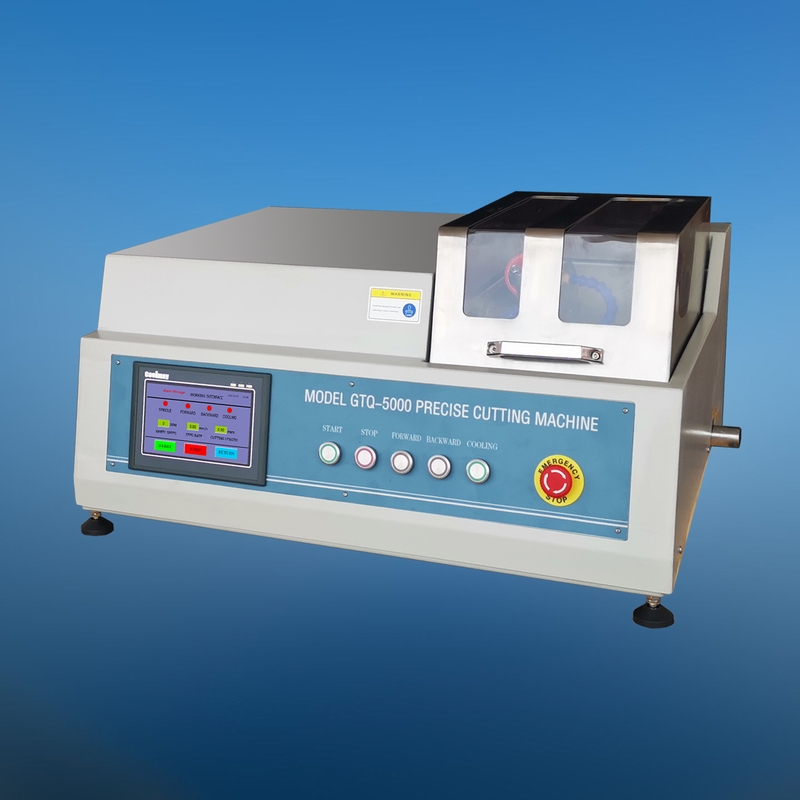

MODEL GTQ-5000 HIGH SPEED PRECISE METALLOGRAPHIC SPECIMEN CUTTING MACHINE
Model GTQ-5000 Precise specimen Cutting Machine can be used to cut material, electronic element, electronic element, crystals, hard alloy, rock sample, core sample, concrete, organic materials, biological materials (teeth, bones), etc. It applies precise cutting without deformation.
The device features high-power servo motor driving, high locating accuracy, large range of speed, high cutting power, internal circulation cooling system, preinstall feed speed, menu control and liquid crystal display, etc. The users are free to define the cutting method. It is an ideal precise cutting machine which can be used in industrial and mining enterprises, scientific research institutes to prepare high quality samples.
Features:
Main Technical Parameters
Max. Cutting diameter: φ60mm Max. Travel: 260mm Max. Clamping length of worktable: 150mm Max. Clamping width of worktable: 200mm Cutting disc: 200*1*32mm (100mm, 125mm, 150mm optional) Feeding speed: 0.01~3mm/s (increment 0.011mm) Cutting disc rotating speed: 500~5000 rpm Manual feeding speed: 0.01~15mm/s Withdraw speed of impact cutting: 0.01~15mm/s Feeding distance of impact cutting: 0-2mm Withdraw distance of impact cutting: 0-1.99mm Motor power: 1200W Power supply: 220V, 50Hz, single phase Dimensions: 830mm×750mm×430mm Net weight: 130 Kg
Main accessories:

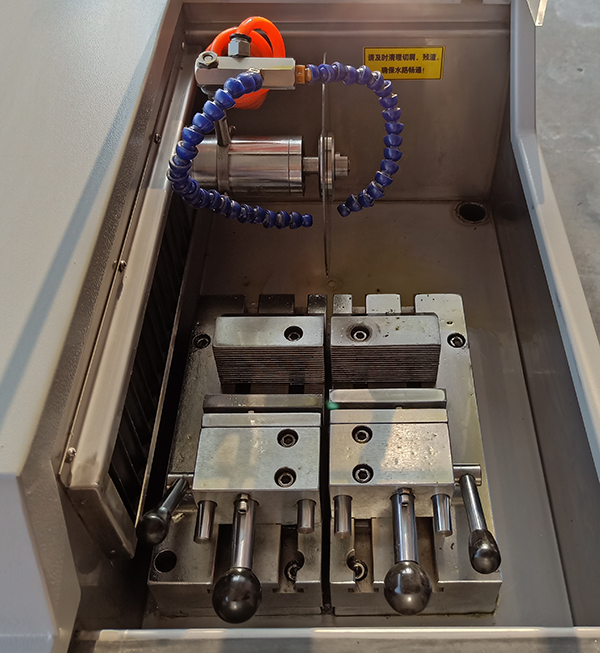

Diamond cutting disc: 200*1*32mm Clamping chuck for cutting disc 1000ml Cooling lubricant liquid Circulating filtration cooling system Transverse working table (optional)
|
||||
