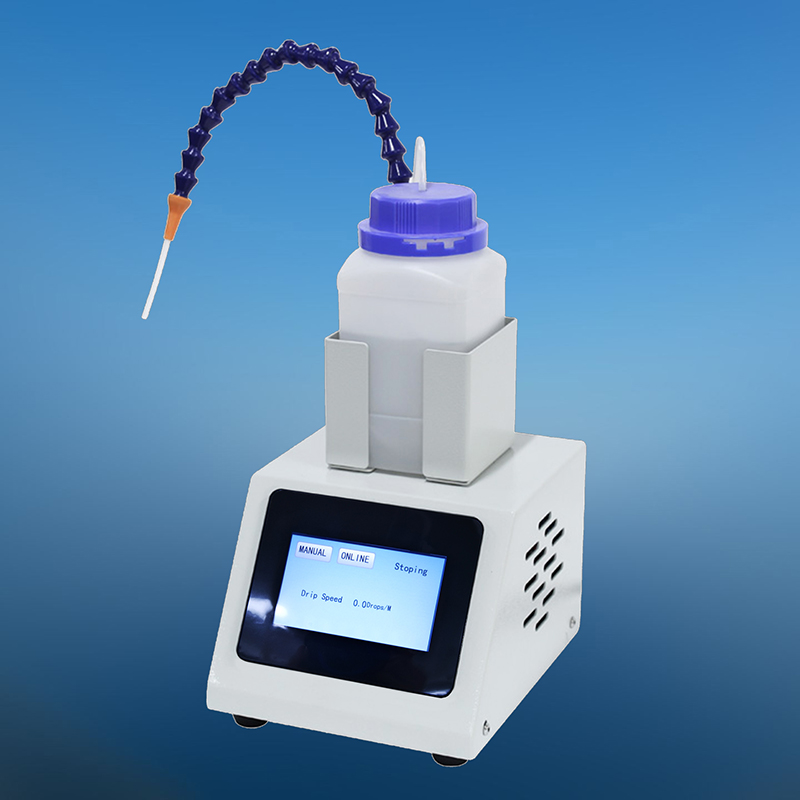

MODEL FY-5T AUTOMATIC

METALLOGRAPHIC SPECIMEN GRINDING & POLISHING LIQUID DISPENSER

        Model FY-5T touch screen automatic dispenser adopts advanced micro controller, it features compact structure, reliable performance, and strong anti-interference ability, etc. This automatic despenser can be used on various grinding and polishing machines to automatically drip abrasive and polishing solution between the grinding disc and the sample tray, achieving the purpose of grinding and polishing.

Features

• Touch screen settings and automatic control.

• Set and precisely control the droplet speed.

• Set and control the drip time.

• Automatic cleaning dropper.

• It can be connected to a polishing machine and can be automatically controlled.

• One-to-many control by grinding & polishing machine (optional).

• Polishing solution magnetic stirring function, independent speed adjustment (optional).

Main technical parameters

Dispensing speed: About 1 ~ 999 drops / min., can be continuously adjusted.

Dispensing time: 1-999 minutes, can be continuously adjusted.

Installing and fixing way: Desktop

Power supply: AC 220V, single-phase

Dimensions (L*W*H): 200*170*260mm

Weight: 5Kg
