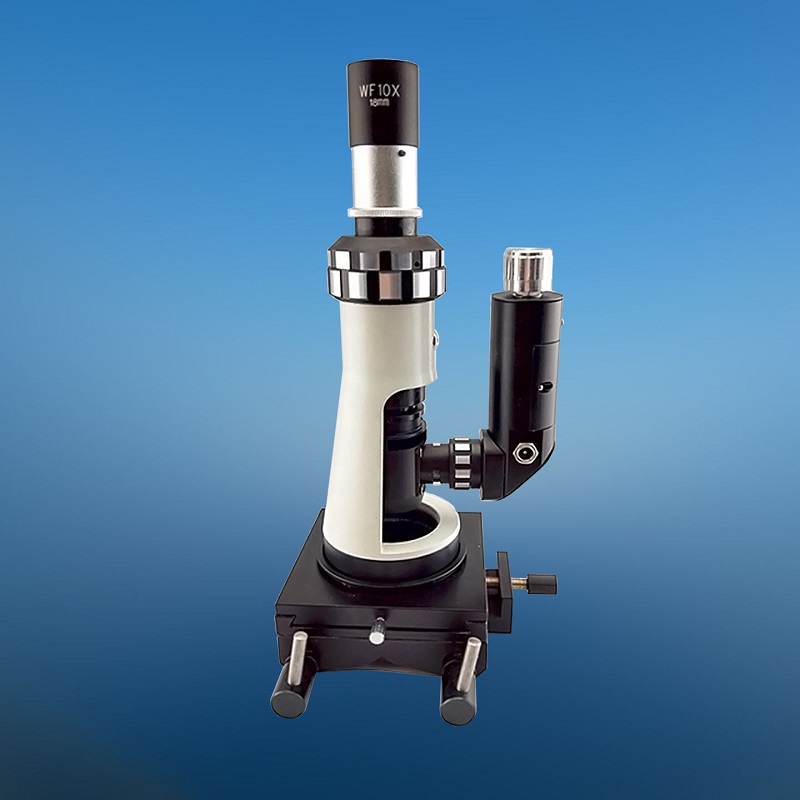

MODEL FD34X4 PORTABLE METALLURGICAL MICROSCOPE
Product Description
This Portable Metallurgical Microscope has vertical light source, it is easy to
use in field or identify the structures of all kinds of metal and alloy when
failure in making sample. It can be widely used in identification of casting
quality, inspection of raw material or metallurgical structures research and
analysis of processed material in factory and laboratory, also can be used in
antique gem and surface finesse observation.
Optical Parameter
|
Model No.
|
FD34X4 Portable
Metallurgical Microscope |
|
Eyepiece
|
WF10X/18mm, Dia.23.2
|
|
Objective
|
Long Working Distance
Plan Achromatic Objective 10X
Long Working Distance Plan Achromatic Objective 40X |
|
Adapter
|
C-mount adapter (for
connecting C-mount cameras) |
|
Mechanical Tube Length
|
160mm
|
|
Focusing System
|
36mm |
|
Polarize Kits
|
Polarizer and Analyzer
|
|
Light Source
|
Coaxial illumination,
build-in LED rechargeable, brightness adjustable |
|
Packing Case
|
Portable aluminum case
|
Optional Accessory
|
Magnetic Stage
|
Magnetic
stage, which can be sticked on metal samples, make observation easier
|
|
CCD Adapter
|
Standard CCD
adapter (Can be connected to camera) |
|
Objective
|
Long Working Distance Plan
Achromatic objective lens of 20X, 60X, 80X, 100X |
|
|
