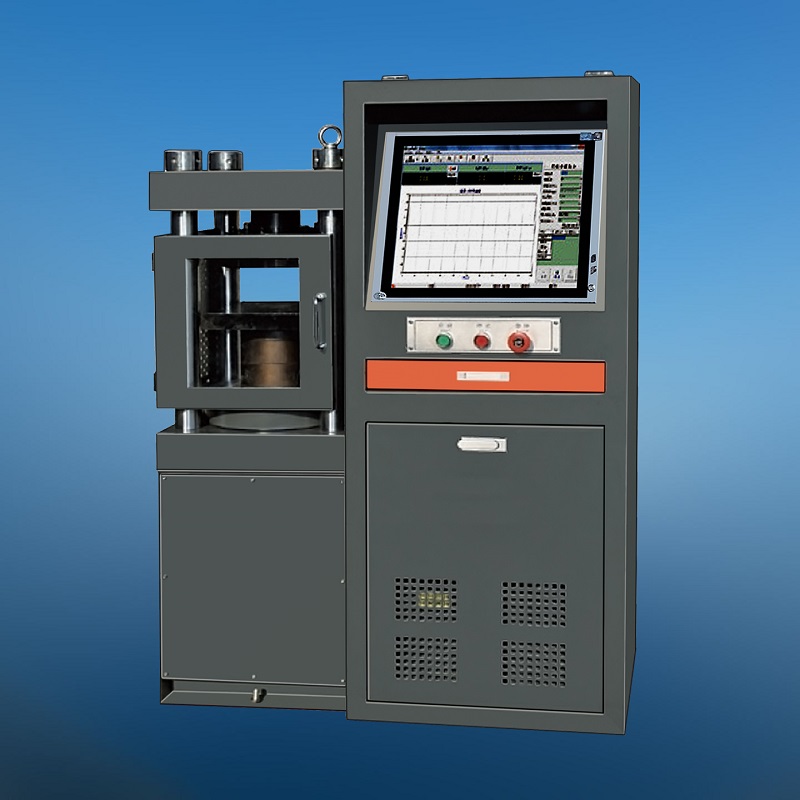

MODEL
DYE-600T
COMPUTER CONTROLLED
CONSTANT STRESS COMPRESSION TESTING MACHINE
Introduction
This DYE-600T computer controlled constant stress
compression testing machine is mainly used for compressive strength
test of building materials such as rock, concrete, cement products,
hollow brick, refractory, engineering materials, and other building
material etc. It is the necessary equipment to be used in the
industries of highway, railway, bridge, construction, building
materials, and laboratories of colleges and universities, enterprise
production, and research institutions.
Features
-
The testing
machine is mainly composed of machine body, oil source,
computer, servo valve, data acquisition software, and
high-precision sensor, etc.
-
The testing
machine adopts electro-hydraulic loading, sensor force
measurement, computer operation, printer to print force value
data, and convert compressive strength.
-
Large computer
screen display. The automatic loading speed and loading mode are
controlled by program, which makes the measurement results more
accurate, and has the functions of home and speed, peak holding,
overload protection and so on.
-
The compression
testing space is adjusted manually.
-
The load of
testing machine meets the requirements of GB/T 2611, GB/T 17671,
GB/T 16826, GB/T 50081 and other standards.
Main technical parameters:
-
Max. load:
600KN
-
Test force
measuring range: 4%~100%FS
-
Load display
accuracy: ±1%
-
Distance
between the columns: 230mm
-
Distance
between pressure plates: 220mm
-
Upper pressure
plate: Ø220mm
-
Lower pressure
plate: 220*250mm
-
Piston
diameter: Ø200mm
-
Piston stroke:
50mm
-
Motor power:
0.75KW
-
Power supply:
AC 380V, 50Hz, three phases
-
Weight: 600kg
-
Overall
dimension (L × W × H): 850 × 500 × 1300mm
|
|
