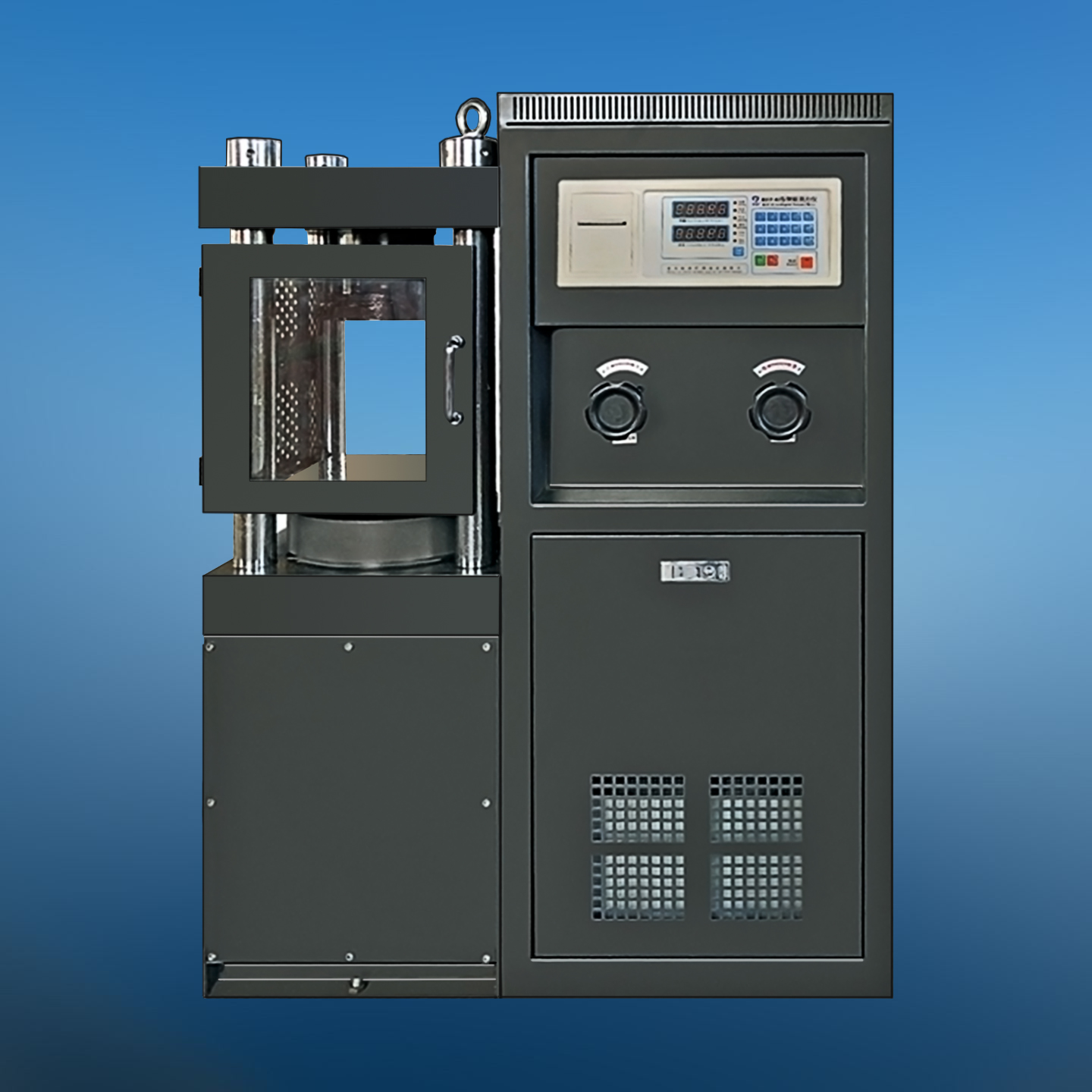

MODEL
DYE-1000B
DIGITAL DISPLAY COMPRESSION TESTING
MACHINE
Introduction
This DYE-1000B
digital display compression testing
machine is mainly used for compressive strength test of building
materials such as rock, concrete, cement products, hollow brick,
refractory,
engineering materials,
and other building material etc.
It is the necessary equipment to be used in the industries of highway,
railway,
bridge,
construction, building materials,
and laboratories of
colleges and universities, enterprise production, and
research institutions.
Features
-
The machine adopts hydraulic loading
and electronic force measurement, and has the functions of load
digital display, loading rate display, maximum load holding,
overload protection and power-off data holding, etc.
-
The
hydraulic system is controlled manually with the features
of easy operation, safety and reliability.
-
The compression testing space is
adjusted manually.
-
The testing data is
collected and processed by intelligent digital meter, and test report with
the test date, number, load, compressive strength, etc. can be
printed out.
-
The testing machine meets the
testing requirements of GB/T 50081,
GB/T 2611,
and GB/T 3159,
etc.
Main technical parameters:
-
Max. load:
1000KN
-
Relative error
of test force indication: ±1%
-
Upper pressure
plate diameter: Ø220mm
-
Lower pressure
plate size: 220*250mm
-
Distance
between upper and lower pressing plates: 220mm
-
Effective
distance between two vertical columns: 230mm
-
Piston
diameter: Ø200mm
-
Piston stroke:
50mm
-
Motor power:
0.75kw
-
Power supply:
AC 380V, 50Hz, three phases
-
Weight: 600kg
-
Overall
dimension: 880 * 355 * 1210mm
|
|
