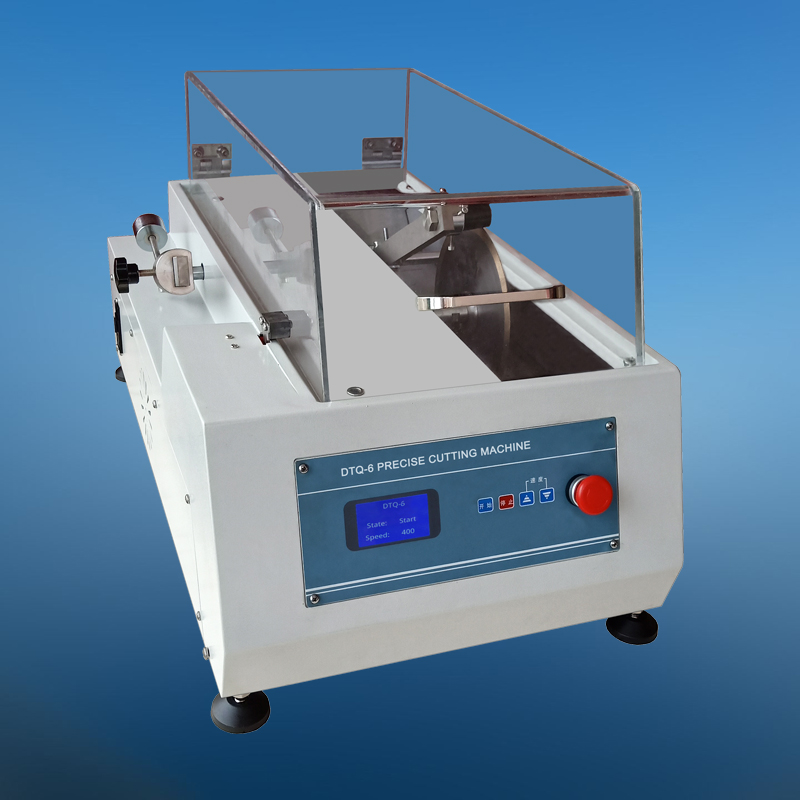

MODEL DTQ-6 MEDIUM SPEED PRECISE METALLOGRAPHIC SPECIMEN CUTTING MACHINE

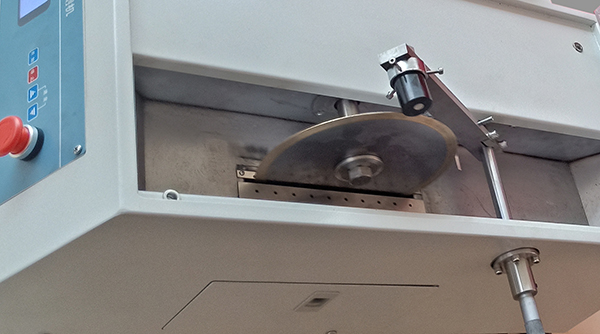

Model DTQ-6 precise specimen cutting machine is suitable for the precise cutting of various hard materials. It is especially suitable for the precise cutting of small metal, non-metal pieces, electronic components and high value artificial crystal materials. Four specimen clamping grippers are equipped with this machine and it can realize the positioning cutting at best angle for the work pieces. It is equipped with positioning limit switch which can also help to realize work piece processing without being watched. The main shaft features high running speed and the horizontal feeding position of the work piece being processed can be adjusted precisely. The machine can also shut down automatically after work. It is the ideal metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Technical specifications
Movable stand travel: 25mm Positioning accuracy: 0.01mm Rotating speed of main shaft: 60-1500 rpm adjustable Diameter of blade: Ø180*1*20mm (Ø100mm, Ø150mm optional) Motor power: 600W Power supply: single phase, 220V, 50Hz Dimensions: 68 x 51 x 38 cm Weight: 56 Kg
Main accessories
Specimen holder for slice: 1 set Specimen holder for circular: 1 set Dual specimen holder for slice: 1 set Specimen holder for mounting material: 1 set Weight: 2 sets Screw mandrel for weight: 1 pc. Blade chuck: 1 set Locking handle: 1 pc. Main shaft locking nut: 1 pc. Power cord: 1 pc.
|
||||
